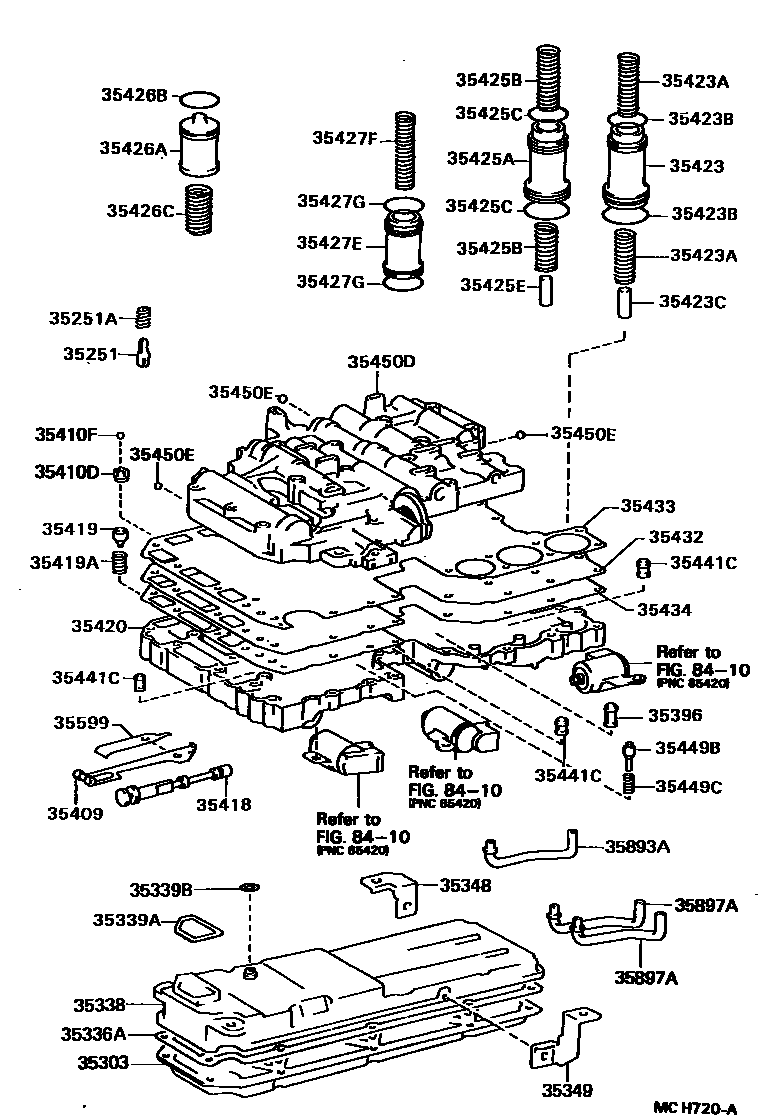

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0004 1 0005 1 0006 1

35251BODY, CHECK BALL

main35251-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35303STRAINER SUB-ASSY, OIL

main35303-35010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35336AGASKET, OIL STRAINER SPACER

main35336-35010iRN10#,110,13#,VZN105,110,13#..4FC198808-199008

sub35336-60010

main35336-60010iRN131,VZN13#..4FC199008-199511

35338SPACER, OIL STRAINER

main35338-35010iRN101,110,131,VZN110,13#..4FC198808-199511

35339AGASKET, OIL STRAINER, NO.1

main35339-30070iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35339BGASKET, OIL STRAINER, NO.2

main90430-10010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35348BRACKET, OIL STRAINER, NO.1

main35348-35010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35349BRACKET, OIL STRAINER, NO.2

main35349-35010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35396STRAINER, THROTTLE OIL

main35396-30010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35410DVALVE, CHECK

main90917-10073iRN101,110,131,VZN110,13#..4FC198808-199511

35410FBALL (FOR CHECK VALVE)

main90360-06004iRN101,110,131,VZN110,13#..4FC198808-199511

35418VALVE, MANUAL

main35418-30070iRN101,110,131,VZN110,13#..4FC198808-199511

35419VALVE, CHECK, NO.1

main35419-12030iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-11039iRN101,110,131,VZN110,13#..4FC198808-199511

35420BODY ASSY, LOWER VALVE

main35420-35033iRN10#,110,13#..4FC198808-199511

main35420-35041iVZN13#..4FC198808-199511

35423PISTON, B-2 ACCUMULATOR

main35423-30020iRN106,110,13#..4FC198808-198908

main35423-30030iVZN105,110,13#..4FC198808-199511

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-26055iRN106,110,13#..4FC198808-198908

LWR

main90501-27019iRN101,110,131,VZN110,13#..4FC198808-199511

main90501-32017iRN106,110,13#..4FC198808-198908

UPR

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23194iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

UPR

main90301-31002iRN101,110,131,VZN110,13#..4FC198808-199511

LWR

sub90301-31010

35423CPIN, STRAIGHT (FOR B-2 ACCUMULATOR PISTON)

main90250-12004iRN106,110,13#..4FC198808-198908

35425APISTON, C-2 ACCUMULATOR

main35425-30010iRN106,110,13#..4FC198808-198908

main35425-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-19010iRN106,110,13#..4FC198808-198908

UPR,INNER

sub90501-22015

main90501-21008iVZN110,13#..4FC199008-199108

OUTER

main90501-22010iRN106,110,13#..4FC198808-198908

LWR

main90501-22015iRN101,110,13#..4FC198808-199511

main90501-23059iRN106,110,13#..4FC198808-198908

UPR,OUTER

main90501-23093iVZN13#..4FC199108-199511

OUTER

main90501-25027iVZN13#..4FC199008-199511

INNER

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-25003iRN101,110,131,VZN110,13#..4FC198808-199511

UPR

sub90301-25010

main90301-31002iRN101,110,131,VZN110,13#..4FC198808-199511

LWR

sub90301-31010

35425EPIN, STRAIGHT (FOR C-2 ACCUMULATOR PISTON)

main90250-03024iVZN105,110,13#..4FC198808-199108

main90250-14002iRN106,110,13#..4FC198808-198908

35426APISTON, C-0 ACCUMULATOR

main35426-30010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

main35426-40010iVZN110,13#..4FC199008-199511

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24001iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

sub90301-24010

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-22008iVZN13#..4FC198808-199511

INNER

main90501-23062iRN101,110,131..4FC198808-199511

main90501-23073iVZN13#..4FC199008-199511

OUTER

main90501-23080iVZN105,110,13#..4FC198808-199008

OUTER

35427EPISTON, B-0 ACCUMULATOR

main35427-30030iRN101,110,131,VZN110,13#..4FC198808-199511

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-20087iVZN105,110,13#..4FC198808-199108

main90501-21006iVZN13#..4FC199108-199511

main90501-22011iRN101,110,131..4FC198808-199511

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20002iRN101,110,131,VZN110,13#..4FC198808-199511

UPR

main90301-26002iRN101,110,131,VZN110,13#..4FC198808-199511

LWR

sub90301-26011

35432PLATE, VALVE BODY, NO.1

main35432-35041iRN106,110,13#..4FC198808-198908

main35432-35051iVZN105,110,13#..4FC198808-199008

main35432-35070iRN101,110,131..4FC198908-199511

main35432-35080iVZN110,13#..4FC199008-199108

main35432-35120iVZN13#..4FC199108-199511

35433GASKET, VALVE BODY, NO.1

main35433-30064iRN101,110,131,VZN110,13#..4FC198808-199511

35434GASKET, VALVE BODY, NO.2

main35434-30076iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35441CSTRAINER, SOLENOID OIL

main35441-30020iRN101,110,131,VZN110,13#..4FC198808-199511

LWR VALVE BODY

main35441-30030iRN10#,110,13#,VZN105,110,13#..4FC198808-199003

UPR VALVE BODY

main35441-30031iRN101,110,131,VZN110,13#..4FC199003-199511

UPR VALVE BODY

35449BVALVE, PRESSURE RELIEF

main35449-32010iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35449CSPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)

main90501-09032iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35450DBODY ASSY, UPPER VALVE

main35450-35031iRN101,110,131,VZN110,13#..4FC198808-199511

35450EBALL (FOR UPPER VALVE BODY)

main35495-22020iRN101,110,131..4FC198808-199511

OD=5.535,RUBBER

main35496-22030iRN101,110,131,VZN110,13#..4FC198808-199511

OD=6.35,RUBBER

main90360-06004iRN10#,110,13#,VZN105,110,13#..4FC198808-199108

OD=6.35

main90360-07001iRN106,110,VZN105,110..4FC198808-198809

0D=7.14,STEEL

35599COVER, MANUAL DETENT SPRING

main35599-30020iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

35893ATUBE, THROTTLE PRESSURE

main35893-35010iRN106,110,13#,VZN105,110,13#..4FC198808-199511

35897ATUBE, 1ST & REVERSE BRAKE, NO.1

main35897-35010iRN106,110,13#,VZN105,110,13#..4FC198808-199511

8410

43 parts on this diagram · 5 diagrams in section
