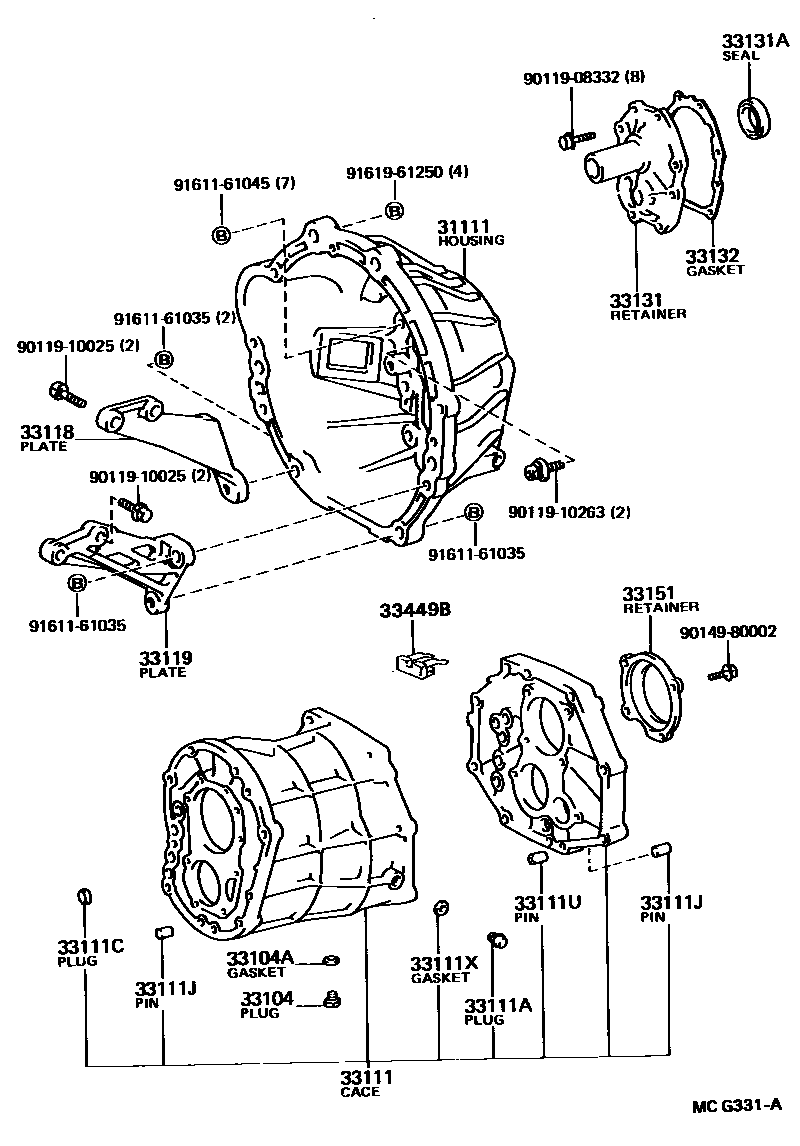

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G58 0002 1W56 0003 1W56 0004 1R150F

31111HOUSING, CLUTCH

main31111-35011iRN10#,110,13#..5F198808-199511

main31111-35050iVZN10#,110,13#..R198808-199511

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iVZN10#,110,13#..R198808-199511

main90341-18057iRN10#,110,13#..G198808-199511

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

33111CASE, MANUAL TRANSMISSION

main33101-22031iRN10#,110..W198808-198904

sub33101-22032

main33101-22032iRN10#,110,13#..W198904-199108

sub33101-30070

sub33242-30080

main33101-30070iRN10#,110,130..W199108-199501

main33101-35030iVZN10#,110,13#..R198808-199108

sub33101-35031

sub90341-16014

main33101-35031iVZN10#,110,13#..R199108-199405

sub33101-60030

main33101-35050iRN10#,110,13#..G198808-199511

sub33101-35051

main33101-35080iVZN100,110,13#..R199405-199511

sub33101-60050

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRN10#,110,13#..W198808-199408

main90341-18006iRN10#,110,13#,VZN100,110,13#..5F198808-199511

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iRN10#,110,13#,VZN10#,110,13#..G,R198808-199511

OD=14

main90331-17004iRN10#,110,130..W199108-199110

OD=17,OD=17

main96411-41800iVZN100,110,13#..R199405-199501

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iVZN10#,110,13#..R198808-199511

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iRN10#,110,13#..G198808-199108

L=11,OD=11

main90253-15001iRN10#,110,13#..G198808-199511

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

33118PLATE, STIFFENER, RH(MTM)

main33118-35020iRN10#,110,13#..(4D,T1)..5F198808-199511

main33118-35040iVZN10#,110,13#..R198808-199511

33119PLATE, STIFFENER, LH(MTM)

main33119-35021iRN10#,110,13#..(4D,T1)..5F198808-199511

main33119-35030iVZN10#,110,13#..R198808-199511

33131RETAINER, BEARING, FRONT(MTM)

main33131-22021iRN10#,110,13#..W198808-199110

main33131-26020iRN10#,110,13#..G198808-199511

main33131-30080iRN10#,110,130..W199110-199501

main33131-35030iVZN10#,110,13#..R198808-199008

sub33131-35031

main33131-35031iVZN10#,110,13#..R199008-199511

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iRN101,110,13#..G198808-199007

sub90311-30014

main90311-30014iRN10#,110,13#..G199007-199511

main90311-30115iRN10#,110,13#..W198808-199110

main90311-32012iVZN10#,110,13#..R198808-199511

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iRN10#,110,13#..G198808-199511

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iRN10#,110,13#..W198808-199110

main33107-30020iRN10#,110,130..W199110-199501

main33151-35020iVZN10#,110,13#..R198808-199511

main33151-35030iRN10#,110,13#..G198808-199511

33449BMAGNET, TRANSMISSION

main33449-26010iRN10#,110,13#..G198908-199511

main33449-30010iRN10#,110,130..W199110-199501

RR

main33449-30020iRN10#,110,130..W199110-199501

FR

main33449-35010iVZN10#,110,13#..R198808-199405

main33449-35030iVZN100,110,13#..R199405-199511

9011908332

main90119-08332

9011910025

main90119-10025

9011910263

main90119-10263

9014980002

main90149-80002

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

23 parts on this diagram · 4 diagrams in section
