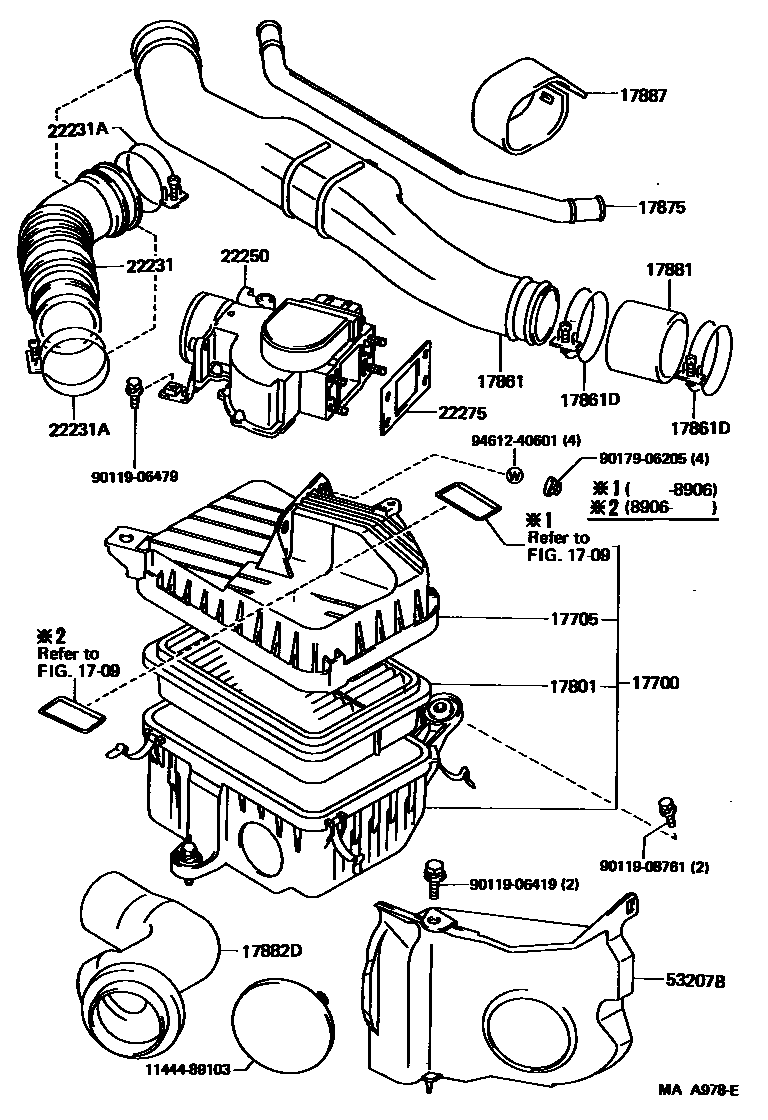

AIR CLEANER

0001 1 0002 1

1709

17700CLEANER ASSY, AIR

main17700-35360i22RE..RN10#,110,13#198808-199511

main17700-35430i22RE..RN13#198905-198906

sub17700-35360

sub17791-35060

main17700-65020i3VZE..VZN10#,110198808-198908

sub17700-65021

main17700-65021i3VZE..VZN13#198904-199511

17705CAP SUB-ASSY, AIR CLEANER

main17705-35170i22RE..RN10#,110,13#198808-199511

main17705-65010i3VZE..VZN10#,110,13#198808-199511

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-35020i22RE..RN10#,110,13#198808-199511

main17801-70020i3VZE..VZN10#,110,13#198808-199511

17861CONNECTOR, INTAKE AIR

main17861-35080i22RE..RN10#,110,13#198808-199511

main17861-65020i3VZE..VZN10#,110,13#198808-199511

17861DCLAMP(FOR INTAKE AIR CONNECTOR)

main90460-75001i22RE..RN10#,110,13#198808-199511

THROTTLE BODY SIDE

main90460-80001i22RE..RN10#,110,13#198808-199511

AIR FLOW METER SIDE

sub90460-80006

17875PIPE, INTAKE AIR CONNECTOR

main17875-35010i22RE..RN10#,110,13#198808-199511

17881HOSE, AIR CLEANER, NO.1

main17881-35080i22RE..RN10#,110,13#198808-199511

main17881-65011i3VZE..VZN10#,110,13#198808-199108

main17881-65020i3VZE..VZN10#,110,13#199108-199511

17882HOSE, AIR CLEANER, NO.2

main17882-65010i3VZE..VZN10#,110,13#198808-199511

17882DHOSE, COOL AIR INTAKE

main17882-89114i3VZE..VZN10#,110,13#198808-199511

main17882-89116i22RE..RN10#,110,13#198808-199511

17887COVER, AIR CLEANER HOSE

main17887-35030i22RE..RN10#,110,13#198808-199511

22231HOSE, THROTTLE BODY

main22231-35030i22RE..RN10#,110,13#198808-199511

22231ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main96111-10800i22RE..RN10#,110,13#198808-199511

22250METER ASSY, INTAKE AIR FLOW

main22250-35050i22RE..RN10#,110,13#198808-199511

main22250-65010i3VZE..VZN10#,110,13#198808-199511

22275GASKET, AIR FLOW METER

main22275-41010i22RE..RN10#,110,13#198808-199511

53207BDUCT SUB-ASSY, COOL AIR

main53207-35040iRN13#199108-199511

main53207-35050iVZN13#199108-199511

main53207-89110iVZN10#,110198808-199501

main53207-89111iRN10#,110198808-199501

1144489103PLUG, HOLE

main11444-89103

9011906419

main90119-06419

9011906479

main90119-06479

9011908761

main90119-08761

9017906205

main90179-06205

9461240601

main94612-40601

22 parts on this diagram · 2 diagrams in section
