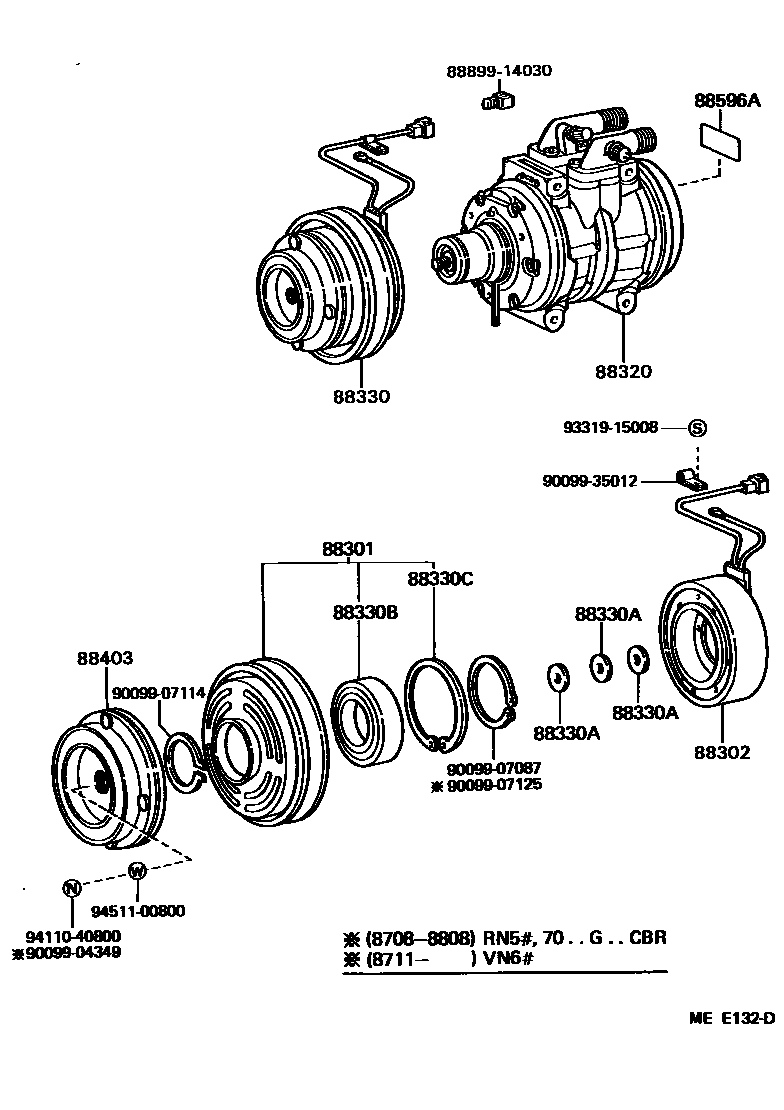

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14020iRN60,61..V,WG198403-198903

sub88412-36030

main88412-14070iRN5#,70..W..CBR;RN55,70..CND..CBR198308-198808

main88412-22030iLN56,6#198308-198708

main88412-35010iVZN6#198711-198903

main88412-35020iRN50..CND;RN5#,70..G198708-198808

sub88412-2B040

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLN56,6#198308-198903

main88411-14060iRN5#,6#,7#..T1..(EFI,TBO)198308-198808

main88411-16021iRN50..CND;RN5#,70..G198708-198808

sub88411-60030

main88411-22151iVZN6#198711-198903

sub88411-30510

88320COMPRESSOR ASSY, COOLER

main88320-35120iRN5#,6#..T1198308-198408

49 STATES

sub88320-35121

main88320-35120iRN5#,6#,7#..T1198408-198703

sub88320-35121

main88320-35121iRN5#,6#,7#..T1198703-198708

main88320-35130iRN55,6#..(3QT,HLF)..CBR..IV198308-198408

*CAL

main88320-35130iLN56,6#198308-198703

main88320-35131iLN56,66198703-198708

main88320-35160iRN60,61..V,WG198403-198703

main88320-35161iRN61..V,WG198703-198708

main88320-35170iRN60..(V,WG)..USA198403-198408

main88320-35210iRN5#,70..W..CBR;RN55,70..CND..CBR198708-198808

main88320-35220iRN61..V,WG198708-198903

main88320-35230iRN50..CND;RN5#,70..G198708-198808

main88320-35240iVZN61..V,WG198711-198903

sub88320-35241

88330CLUTCH ASSY, MAGNET

main88410-14100iRN60,61..V,WG198403-198903

main88410-14150iRN5#,70..W..CBR;RN55,70..CND..CBR198308-198808

main88410-22080iLN56,6#198308-198708

sub88410-60140

main88410-35010iVZN6#198711-198903

sub88410-35080

main88410-35030iRN50..CND;RN5#,70..G198708-198808

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iRN5#,70..W..CBR;RN55,70..CND..CBR198703-198903

main88335-14020iVZN6#198708-198903

main90099-01108iLN56,6#,RN5#,6#,7#198308-198703

T=0.5

main90099-01350iLN56,6#,RN5#,6#,7#198308-198703

T=0.1

main90099-01351iLN56,6#,RN5#,6#,7#198308-198703

T=0.2

88330BBEARING, MAGNET CLUTCH

main90099-10133iRN60,61..V,WG198308-198903

main90099-10135iRN5#,70..W..CBR;RN55,70..CND..CBR198308-198808

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iLN56,66,RN5#,6#,7#198308-198903

main90099-07114iLN56,6#198308-198703

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iRN61..V,WG198708-198903

main88403-12040iRN5#,70..W..CBR;RN55,70..CND..CBR198703-198808

main88403-14030iLN56,6#198308-198708

sub88403-12030

main88403-14040iRN5#,6#,7#..T1198308-198703

main88403-16011iVZN6#198708-198903

88596PULLEY ASSY, IDLE, NO.2

main88440-26070iLN56,6#198308-198708

88596APLATE, CAUTION

main88356-12010iLN56,66,RN5#,6#,7#,VZN6#198703-198903

8889914030COVER, EVAPORATOR

main88899-14030

9009904349

main90099-04349

9009907087

main90099-07087

9009907114

main90099-07114

9009907125

main90099-07125

9009935012

main90099-35012

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

19 parts on this diagram · 6 diagrams in section
