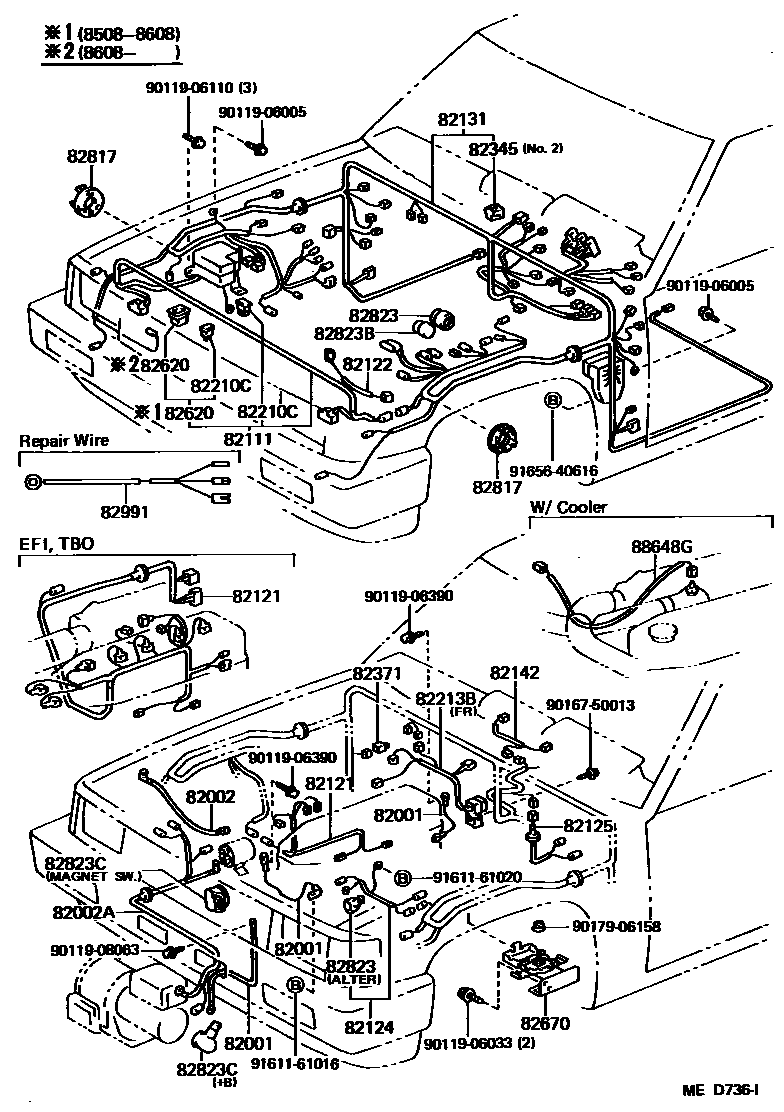

WIRING & CLAMP
82001CABLE, BOND, NO.1
ENGINE-DASH PANEL
W/WINCH,ENGINE-FENDER APRON RH
ENGINE-FENDER APRON RH
W/WINCH,WINCH-RADIATOR SUPPORT
ENGINE-DASH PANEL
ENGINE-FENDER APRON LH
ENGINE-SURGE TANK
ENGINE-SURGE TANK
ENGINE-DASH PANEL
82002CABLE, BATTERY TO MAGNET SWITCH
82002ACABLE, MAGNET SWITCH TO WINCH
82111WIRE, ENGINE ROOM MAIN
CALIFORNIA SPEC
STD TYPE GENERATOR REGULATOR
IC TYPE GENERATOR REGULATOR
W/FUEL HEATER
IC TYPE GENERATOR REGULATOR
W/FUEL HEATER
W/FUEL HEATER
W/ALTERNATOR=12V 55A
W/ALTERNATOR=12V 60A
82121WIRE, ENGINE
CALIFORNIA SPEC & W/O(OIL PRESSURE SENDER)
CALIFORNIA SPEC
CALIFORNIA SPEC & W(OIL PRESSURE SENDER)
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
W/TACHOMETER
82122WIRE, ENGINE, NO.2
*CAL OR W/TACHOMETER
82124WIRE, ENGINE, NO.4
STD TYPE GENERATOR REGULATOR
IC TYPE GENERATOR REGULATOR
82125WIRE, TRANSMISSION
main82125-89106iLN65;RN60..IV;RN65..USA;RN65..XTR..CND;RN65..DLX..CND;RN60..(DLX,STD)..HLF..CBU198308-198408
82131WIRE, COWL
W/*TIS
W/DECK LAMP OR *RWD
W/*TIS & DECK LAMP OR *RWD
W/*43
W/DECK LAMP OR *RWD
*CAL
W/*TIS
*CAL
W/*TIS & *CAL
*CAL & *TIS,DECK LAMP OR *RWD
*CAL & DECK LAMP OR *RWD
W/*43 & *CAL
*CAL
*CAL & DECK LAMP OR *RWD
W/DECK LAMP OR *RWD
W/*43
W/DECK LAMP OR *RWD
W/*43
W/*TIS
W/*TIS,DECK LAMP OR *RWD
W/*43
*CAL
*CAL & *RWD OR DECK LAMP
W/*43 & *CAL
W/*TIS ONLY
W/DECK LAMP OR *RWD
W/*TIS & *RWD OR DECK LAMP
*CAL
W/*TIS & *CAL
*CAL & *RWD OR DECK LAMP
W/*TIS,*CAL & *RWD OR DECKLAMP
W/DECK LAMP OR *RWD
*CAL
W/DECK LAMP OR *RWD
W/*43
W/*43 & *RWD OR DECK LAMP
W/*43
W/*43 & *RWD OR DECK LAMP
W/*43
W/*43
W/*43 & *RWD OR DECK LAMP
W/*43
W/*43
W/*43 & *RWD OR DECK LAMP
W/TOWING PACKAGE
W/*43
W/*43
W/*43
W/DECK LAMP OR *RWD
*CAL
*CAL & *RWD OR DECK LAMP
W/DECK LAMP OR *RWD
*CAL
*CAL;*CAL & *RWD OR DECK LAMP
W/*43
W/TOWING PACKAGE
W/*43
W/DECK LAMP OR *RWD
W/*43
W/*43
W/DECK LAMP OR *RWD
*CAL
*CAL & *RWD OR DECK LAMP
W/DECK LAMP OR *RWD
*CAL & *RWD OR DECK LAMP
*CAL
W/*43 & *CRC
W/*43 & *CRC
W/*43 & *CRC
W/*43 & *CRC
W/*43 & *CRC
W/*43 & *CRC
W/*43 & *CRC
W/*43 & *CRC
W/*43
W/*43
W/*43
W/*43
W/*CRC
W/*CRC
W/*CRC
W/*CRC
W/*CRC
W/*CRC
W/*CRC
W/*CRC
W/DECK LAMP OR *RWD
W/DECK LAMP OR *RWD
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/DECK LAMP OR *RWD
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
W/*CRC
POWER PACKAGE
W/*CRC,POWER PACKAGE
82142WIRE, INSTRUMENT PANEL, NO.2
W/CLINOMETER
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A
40A,TERM.:FEMALE,GRN,40A
60A,TERM.:FEMALE,YEL,60A
60A,TERM.:MALE,YEL,60A
80A,TERM.:MALE,BLK,80A
82213BWIRE, HEATER
FR
RR
RR
82345DIODE
W/RR WIPER,NO.1
82371WIRE, WIPER RELAY
W/*RWD OR DECK LAMP
W/RR HEATER
82620BLOCK ASSY, FUSIBLE LINK
82670BLOCK ASSY, JUNCTION, NO.1
82817PROTECTOR, WIRING HARNESS, NO.1
82823CAP, TERMINAL, NO.1
ALTERNATOR
OD=27
OD=33,*CAL
W/*RWD OR DECK LAMP
OD=33
82823BCAP, TERMINAL, NO.3
OD=20,*CAL
OD=20
82823CCAP, TERMINAL, NO.4
W/WINCH(+B)
W/WINCH(MAGNET SWITCH)
82991WIRE, FUSIBLE LINK REPAIR
W/ALTERNATOR=12V 55A
W/ALTERNATOR=12V 60A
88648GWIRE, AIR CONDITIONER
TOWING PACKAGE
9011906005
main90119-06005
9011906033
main90119-06033
9011906110
main90119-06110
9011906390
main90119-06390
9011908063
main90119-08063
9016750013
main90167-50013
9017906158
main90179-06158
9161161016
main91611-61016
9161161020
main91611-61020
9165640616
main91656-40616
32 parts on this diagram · 8 diagrams in section
