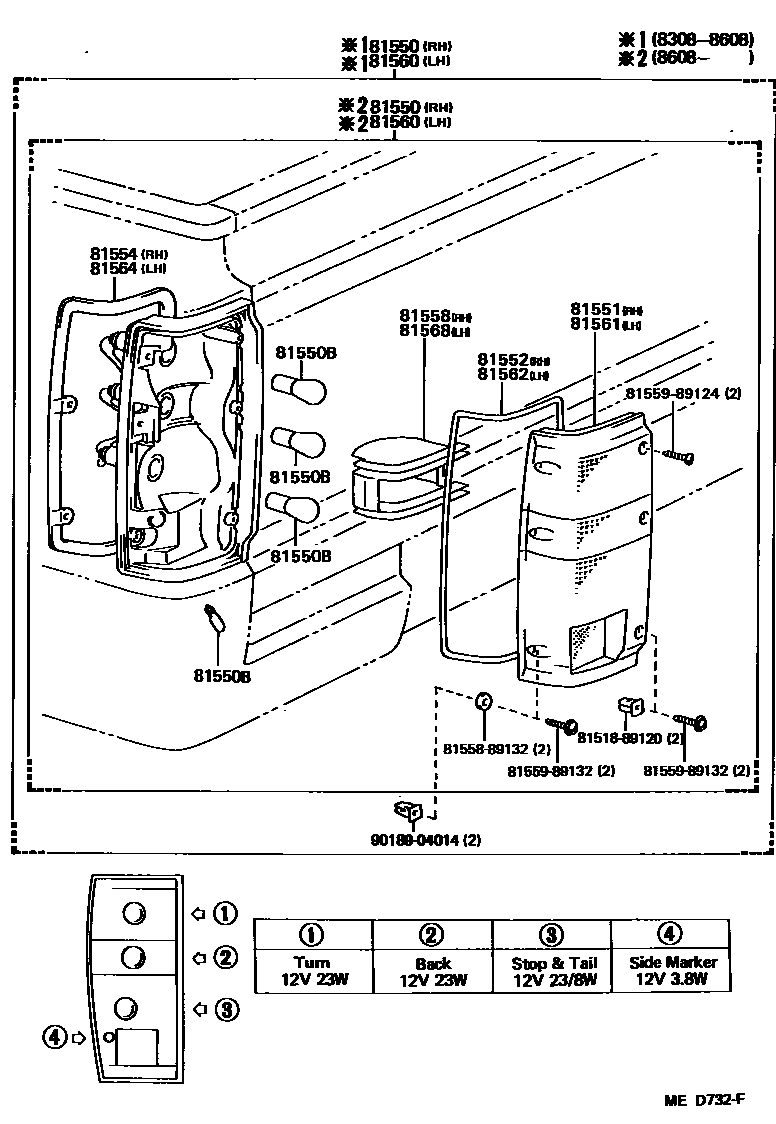

REAR COMBINATION LAMP

0001 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39795iRN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU198308-198401

sub81550-80213

main81550-39805iRN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..(DLX,SR5)..HLF198308-198401

CHROME PLATED

sub81550-80214

main81550-39895iRN60,61..V,WG198403-198608

sub81550-89144

main81550-80210iRN60,61..V,WG198403-198608

CHROME PLATED

sub81550-89145

main81550-80213iLN5#,6#,RN5#,6#,7#..T1198401-198708

sub81550-89149

main81550-80214iRN70..CND;RN70..STD..IV198401-198808

CHROME PLATED

sub81550-89150

main81550-80214iRN55..10T..USA198502-198506

VALUE PACKAGE

sub81550-89150

main81550-89144iRN61,VZN61..V,WG198608-198903

main81550-89145iRN61,VZN61..V,WG198608-198903

CHROME PLATED

main81550-89149iRN5#,6#,70,VZN6#..10T,HLF198708-198808

main81550-89150iRN61,VZN61..(SDT,STD)..CBU198608-198808

CHROME PLATED

main81550-89156iRN55,75..HVY198708-198808

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020iRN55..10T,HLF;RN50,6#,70,VZN6#198308-198903

12V 3.8W,12V 3.8W

main99132-11230iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

12V 23W,12V 23W

main99132-21230iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

12V 23/8W,12V 23/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-60180iRN55,75..HVY198708-198808

sub81551-35061

main81551-89133iLN5#,6#,RN5#,6#,7#198308-198903

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-26040iRN55,75..HVY198708-198808

main81552-89131iRN61,VZN61..V,WG198308-198903

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-89140iRN60,61,VZN61..V,WG198403-198903

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-26040iRN55,75..HVY198708-198808

main81557-89131iRN5#,6#,70,VZN6#..10T,HLF198308-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-39755iRN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU198308-198401

sub81560-80218

main81560-39765iRN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..(DLX,SR5)..HLF198308-198401

CHROME PLATED

sub81560-80219

main81560-39855iRN60,61..V,WG198403-198608

sub81560-89144

main81560-80215iRN60,61..V,WG198403-198608

CHROME PLATED

sub81560-89145

main81560-80218iLN5#,6#,RN5#,6#,7#..T1198401-198708

sub81560-89149

main81560-80219iRN70..CND;RN70..STD..IV198401-198808

CHROME PLATED

sub81560-89150

main81560-80219iRN55..10T..USA198502-198506

VALUE PACKAGE

sub81560-89150

main81560-89144iRN61,VZN61..V,WG198608-198903

main81560-89145iRN61,VZN61..V,WG198608-198903

CHROME PLATED

main81560-89149iRN5#,6#,70,VZN6#..10T,HLF198708-198808

main81560-89150iRN61,VZN61..(SDT,STD)..CBU198608-198808

CHROME PLATED

main81560-89156iRN55,75..HVY198708-198808

81561LENS, REAR COMBINATION LAMP, LH

main81561-60080iRN55,75..HVY198708-198808

sub81561-35061

main81561-89133iRN5#,6#,70,VZN6#..10T,HLF198308-198903

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-26040iRN55,75..HVY198708-198808

main81552-89131iRN5#,6#,70,VZN6#..10T,HLF198308-198903

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-89140iRN60,61,VZN61..V,WG198403-198903

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-26040iRN55,75..HVY198708-198808

main81557-89131iLN5#,6#,RN5#,6#,7#198308-198903

8151889120SHADE, FRONT TURN SIGNAL LAMP, RH

main81518-89120

8155889132SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-89132

8155989124MOULDING, REAR COMBINATION LAMP, RH

main81559-89124

8155989132MOULDING, REAR COMBINATION LAMP, RH

main81559-89132

9018904014

main90189-04014

16 parts on this diagram · 2 diagrams in section
