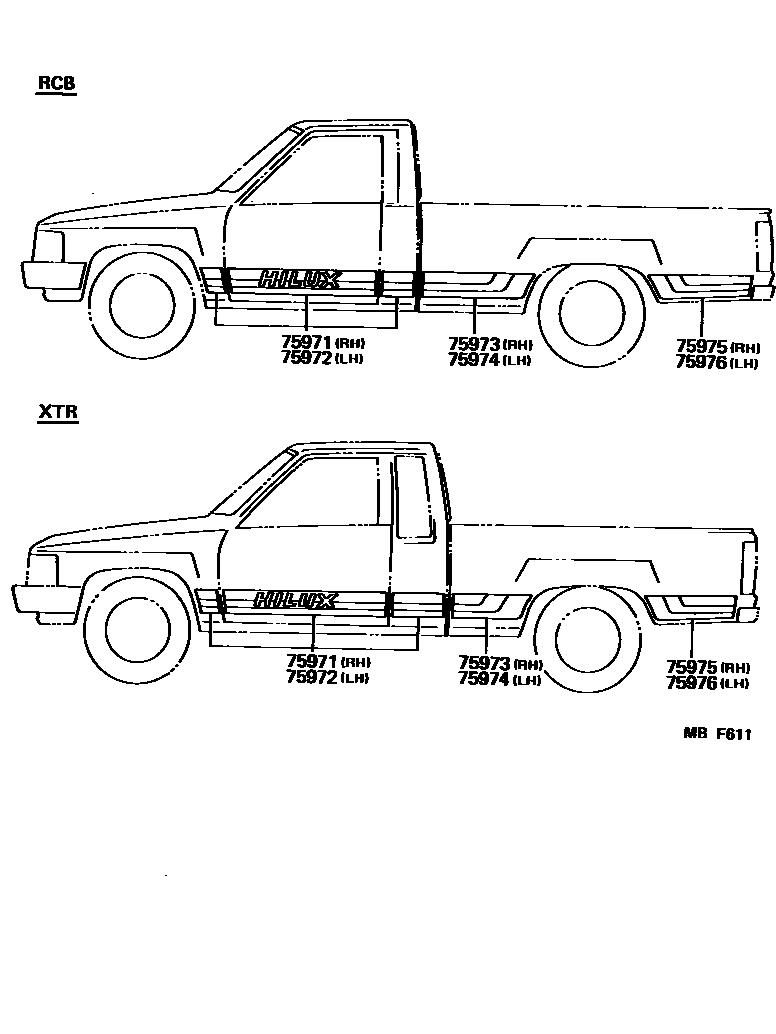

BODY STRIPE

0001 1 0002 1 0003 1 0004 1

75971STRIPE, SIDE, RH NO.1

main75985-89119iRN5#..RCB..(DLX,SR5)..USA..CBU198310-198608

main75985-89120iRN5#..RCB..(DLX,SR5)..USA..CBU198308-198310

main75985-89121iRN55..USA..EFI..CBU198309-198310

main75985-89122iLN65,RN6#..RCB..USA..CBU198308-198608

main75985-89123iRN65,66..XTR..USA..CBU198309-198608

main75985-89128iLN56,RN55,70..XTR..USA..CBU198310-198608

main75985-89133iRN66,VZN66..XTR..USA..CBU198608-198808

main75985-89134iRN61,VZN61..HLF..USA..CBU198608-198808

main75985-89135iRN66..RCB..USA..CBU198608-198808

main75985-89137iRN55..XTR..USA..CBU198608-198808

main75985-89139iRN55..10T..USA198608-198808

75972STRIPE, SIDE, LH NO.1

main75986-89119iRN55..10T..USA198310-198608

main75986-89120iRN5#..RCB..(DLX,SR5)..USA..CBU198308-198310

main75986-89121iRN55..USA..EFI..CBU198309-198310

main75986-89122iLN65,RN6#..RCB..USA..CBU198308-198608

main75986-89123iRN65,66..XTR..USA..CBU198309-198608

main75986-89128iLN56,RN55,70..XTR..USA..CBU198310-198608

main75986-89132iRN66..5F..USA..(EFI,TBO)..CBU198608-198808

main75986-89133iRN61,VZN61..HLF..USA..CBU198608-198808

main75986-89134iRN66..RCB..USA..CBU198608-198808

main75986-89136iRN70..DLX..CBU198608-198808

main75986-89138iRN55..DLX198608-198808

75973STRIPE, SIDE, RH NO.2

main75988-89110iRN55..RCB..(DLX,SR5)..USA..CBU198310-198608

main75988-89111iRN50..EFI..CBU198310-198608

main75988-89112iRN55..DLX..USA..CBU198308-198310

main75988-89113iRN50..EFI..CBU198308-198310

main75988-89114iLN65,RN65,66..RCB..USA..CBU198308-198608

main75988-89115iRN65,66..XTR..USA..CBU198308-198608

main75988-89117iRN66..RCB..USA..EFI..CBU198608-198808

main75988-89118iRN61,VZN61..HLF..USA..CBU198608-198808

main75988-89119iRN66..STD198608-198808

main75996-89150iRN70..DLX..CBU198608-198808

main75996-89151iRN55..10T..USA198608-198808

75974STRIPE, CENTER PILLAR, LH NO.2

main75989-89110iRN70..USA..CBU198310-198608

main75989-89111iRN50..EFI..CBU198310-198608

main75989-89112iRN55..DLX..USA..CBU198308-198310

main75989-89113iRN50..EFI..CBU198308-198310

main75989-89114iLN65,RN65,66..RCB..USA..CBU198308-198608

main75989-89115iRN65,66..XTR..USA..CBU198308-198608

main75989-89117iRN66..5F..USA..(EFI,TBO)..CBU198608-198808

main75989-89118iRN61,VZN61..HLF..USA..CBU198608-198808

main75989-89119iRN66..RCB..USA..CBU198608-198808

main75997-89142iRN70..DLX..CBU198608-198808

main75997-89143iRN55..DLX198608-198808

75975STRIPE, SIDE, RH UPR NO.3

main75995-89117iLN65,RN6#..HLF..USA..CBU198308-198608

main75998-89113iRN70..USA..CBU198310-198608

main75998-89114iRN55..XTR..USA..CBU198310-198608

main75998-89115iRN55..DLX..USA..CBU198308-198310

main75998-89116iRN55..USA..EFI..CBU198308-198310

main75998-89121iRN66..RCB..USA..EFI..CBU198608-198808

main75998-89122iRN66..STD198608-198808

75976STRIPE, SIDE, LH UPR

main75995-89117iLN65,RN6#..HLF..USA..CBU198308-198608

main75999-89113iRN70..USA..CBU198310-198608

main75999-89114iRN55..XTR..USA..CBU198310-198608

main75999-89115iRN55..DLX..USA..CBU198308-198310

main75999-89116iRN50..EFI..CBU198308-198310

main75999-89121iRN66..5F..USA..(EFI,TBO)..CBU198608-198808

main75999-89122iRN66..STD198608-198808

6 parts on this diagram · 4 diagrams in section
