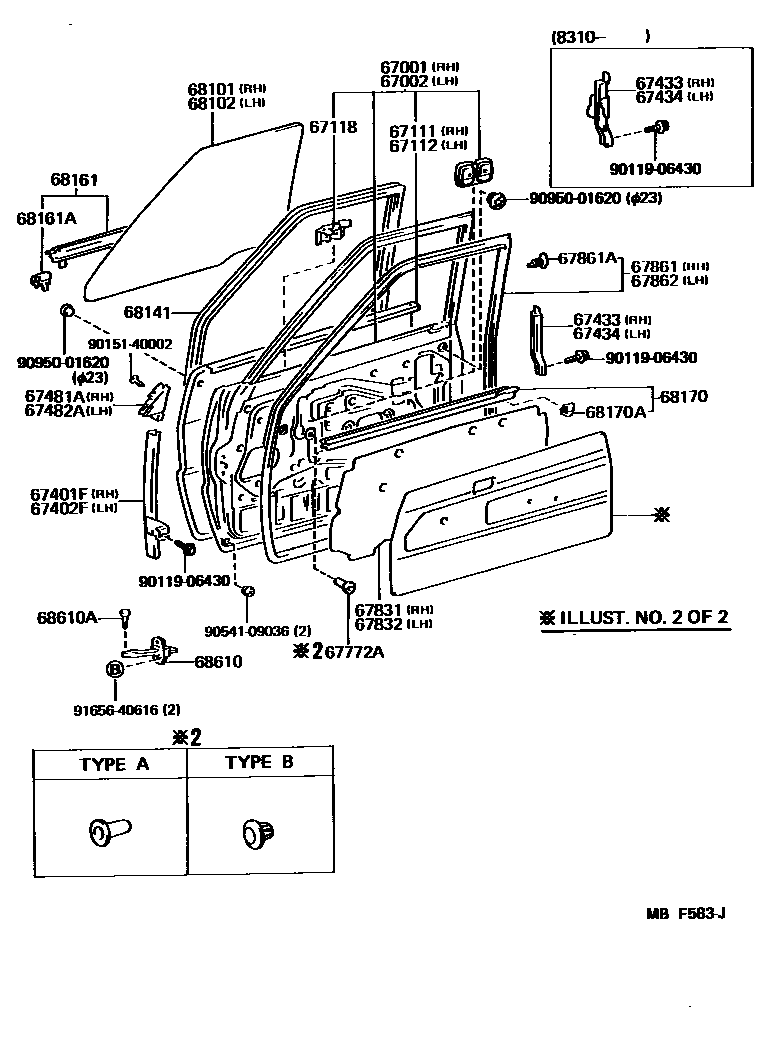

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-89136iLN5#,6#,RN5#,6#,7#..T1..(DLX,SDT,STD)198308-198608

sub67001-89160

main67001-89137iRN60,61..DLX..USA198403-198608

sub67001-89162

main67001-89137iLN66,RN75..CND198508-198608

W/DOOR MIRROR

sub67001-89162

main67001-89138iRN55..10T..USA;RN55,70..XTR..CBR..IV198502-198511

VALUE PACKAGE

sub67001-89164

main67001-89138iRN60,61..DLX..USA198403-198608

W/*VW

sub67001-89164

main67001-89138iLN66,RN75..CND198508-198608

W/*VW & DOOR MIRROR

sub67001-89164

main67001-89139iRN5#,6#..(SR5,SRT)..HLF198308-198608

W/*PW

sub67001-89161

main67001-89140iRN60,61..(V,WG)..(SR5,SRT)198403-198608

W/*PW

sub67001-89163

main67001-89140iRN5#,6#..(SR5,SRT)..HLF198308-198608

W/*PW & DOOR MIRROR

sub67001-89163

main67001-89141iRN5#,6#..(SR5,SRT)..HLF198308-198608

W/*PW,*VW & DOOR MIRROR

sub67001-89165

main67001-89141iRN60,61..(V,WG)..SR5198403-198608

W/*PW & *VW

sub67001-89165

main67001-89144iRN55,6#..SR5..HLF198308-198608

sub67001-89161

main67001-89145iRN55,6#..SR5..HLF198308-198608

W/DOOR MIRROR

sub67001-89163

main67001-89145iRN60,61..(V,WG)..SR5198403-198608

sub67001-89163

main67001-89146iRN60,61..(V,WG)..SR5198403-198608

W/*VW

sub67001-89165

main67001-89146iRN5#,6#..(SR5,SRT)..HLF198308-198608

W/*VW & DOOR MIRROR

sub67001-89165

main67001-89161iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198808

main67001-89163iLN66,RN55,6#,70..DLX..HLF198608-198903

W/DOOR MIRROR

main67001-89163iRN50..4HC,5F;RN61..CBR..IV198610-198708

VALUE PACKAGE

main67001-89165iRN55,6#..SR5..HLF198608-198903

W/*VW & DOOR MIRROR

main67001-89165iRN50..4HC,5F;RN61..CBR..IV198610-198708

VALUE PACKAGE W/*VW

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-89138iLN5#,6#,RN5#,6#,7#..DLX,SDT,STD198308-198608

sub67002-89161

main67002-89139iLN5#,6#,RN5#,6#,7#..DLX,SDT,STD198308-198608

W/*VW

sub67002-89163

main67002-89140iRN5#,6#..SR5,SRT198308-198608

W/*PW

sub67002-89162

main67002-89141iRN5#,6#..SR5,SRT198308-198608

W/*PW & *VW

sub67002-89164

main67002-89144iRN5#,6#..SR5,SRT198308-198608

sub67002-89162

main67002-89145iRN55,6#..SR5198308-198608

W/*VW

sub67002-89164

main67002-89162iRN61,VZN61..V,WG198608-198903

main67002-89164iLN56,66,RN5#,6#,70..(DLX,SDT,SRT,STD)..(10T,HLF)198608-198903

W/*VW

main67002-89168iRN55,75..HVY198608-198808

67111PANEL, FRONT DOOR, OUTER RH

main67111-89116iLN5#,6#,RN5#,6#,7#198308-198608

sub67111-89126

main67111-89126iLN56,66,RN5#,6#,7#,VZN6#198608-198903

67112PANEL, FRONT DOOR, OUTER LH

main67112-89121iLN5#,6#,RN5#,6#,7#198308-198602

sub67112-89130

main67112-89130iLN56,66,RN5#,6#,7#,VZN6#198602-198903

67118RETAINER, OUTER MIRROR

main67118-89103iRN55,6#..SR5..HLF198308-198608

W/DOOR MIRROR,RH

sub67118-89107

main67118-89103iRN60,61..V,WG198403-198608

RH

sub67118-89107

main67118-89104iRN55,6#..SR5..HLF198308-198608

W/*VW & DOOR MIRROR,RH

sub67118-89108

main67118-89104iRN55..10T..USA;RN55,70..XTR..CBR..IV198502-198511

VALUE PACKAGE,RH

sub67118-89108

main67118-89104iRN60,61..(V,WG)..(CBR,EFI)198403-198608

W/*VW,RH

sub67118-89108

main67119-89103iLN5#,6#,RN5#,6#,7#198308-198608

LH

sub67119-89106

main67119-89104iRN75..CND;LN5#,6#,RN5#,60,65,70;RN61,66,75..(4F,4FC,5F)..(DLX,SDT,SR5,STD)198308-198608

W/*VW,LH

sub67119-89107

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-89107iLN56,66,RN5#,6#,7#..DLX,SDT,SRT,STD198308-198903

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-89107iLN56,66,RN5#,6#,7#..DLX,SDT,SRT,STD198308-198903

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-89101iLN5#,65,RN5#,6#198311-198508

sub67403-89102

main67403-89102iLN56,66,RN5#,6#,7#,VZN6#198508-198903

main67433-89103iRN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU198308-198311

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-89101iLN5#,65,RN5#,6#198311-198508

sub67404-89102

main67404-89102iLN56,66,RN5#,6#,7#,VZN6#198508-198903

main67434-89103iRN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU198308-198311

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-89106iLN5#,6#,RN5#,6#,7#198308-198903

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-89102iLN5#,6#,RN5#,6#,7#198308-198903

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-20021iRN5#,6#..SR5,SRT198308-198608

main67772-20021iRN55,6#,VZN6#..SR5,SRT198608-198903

TYPE A

main67772-89101iRN55,6#,VZN6#..SR5,SRT198608-198903

TYPE B

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-89107iRN5#,6#,7#,VZN6#..T1198308-198808

main67831-89108iRN5#,6#..(SR5,SRT)..HLF198308-198608

W/*PW

main67831-89110iRN60,61,VZN61..V,WG198403-198903

main67831-89111iRN60,61..(V,WG)..(SR5,SRT)198403-198608

W/*PW

main67831-89114iRN61,VZN61..(V,WG)..(SR5,SRT)198608-198903

W/*PW

main67831-89115iRN55,6#,VZN6#..(SR5,SRT)..HLF198608-198808

W/*PW

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-89107iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198308-198903

main67831-89108iRN5#,6#..SR5,SRT198308-198608

W/*PW

main67831-89115iRN55,6#,VZN6#..SR5,SRT198608-198903

W/*PW

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-89105iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-89103iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

RH

main67868-89101iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

LH

sub67867-89103

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-89104iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-89112iLN5#,6#,RN5#,6#,7#,VZN6#..DLX,SDT,STD198308-198903

*TEM,T=4.0,*TEM,T=4.0

sub68111-89113

main68111-89113iRN66..STD198308-198903

*TT,T=4.0,*TT,T=4.0

main68111-89114iRN55,66,VZN66..SR5,SRT198309-198808

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE

main68111-89115iLN5#,6#,RN5#,6#,7#..DLX,SDT,STD198308-198903

*TEM,T=4.0,*TEM,T=4.0,W/*VW

sub68111-89116

main68111-89116iRN61..HLF..CND198308-198903

*TT,T=4.0,*TT,T=4.0,W/*VW

main68111-89117iRN55,66..XTR..SR5198309-198903

*TT,T=4.0,BRONZE,*TT,T=4.0,W/*VW,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-89111iLN5#,6#,RN5#,6#,7#,VZN6#..DLX,SDT,STD198308-198903

*TEM,T=4.0,*TEM,T=4.0

sub68112-89112

main68112-89112iRN5#,6#,7#,VZN6#..USA;RN55..STD..HLF..CND..EFI198308-198903

*TT,T=4.0,*TT,T=4.0

main68112-89113iRN55,6#..SRT198309-198808

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE

main68112-89114iLN56,66,RN5#,6#,7#,VZN6#..DLX,SDT,STD198308-198903

*TEM,T=4.0,*TEM,T=4.0,W/*VW

sub68112-89115

main68112-89115iRN61..HLF..CND198308-198903

*TT,T=4.0,*TT,T=4.0,W/*VW

main68112-89116iRN55,65..XTR..(SR5,SRT)198309-198903

*TT,T=4.0,BRONZE,*TT,T=4.0,W/*VW,BRONZE

68141RUN, FRONT DOOR GLASS

main68112-89112iRN66..STD198704-198708

*TT,T=4.0

main68112-89115iRN66..STD198704-198708

*TT,T=4.0,W/*VW

main68141-89107iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

main68141-89108iRN5#,6#,7#,VZN6#198308-198903

W/*VW

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-89108iLN5#,6#,RN5#,6#,7#198308-198705

RH

sub68160-89114

main68160-89109iLN5#,6#,RN5#,6#,7#198308-198705

LH

sub68160-89115

main68160-89110iLN5#,65,RN5#,6#198308-198705

W/*VW

sub68160-89116

main68160-89114iLN56,66,RN5#,6#,7#,VZN6#198705-198903

RH

main68160-89115iLN56,66,RN5#,6#,7#,VZN6#198705-198903

LH

main68160-89116iRN5#,6#,7#,VZN6#198705-198903

W/*VW

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-89104iRN60..IV;LN5#,65,RN5#,65;RN60..(DLX,STD)..CBU198308-198402

main68211-89104iLN5#,6#,RN5#,6#,7#,VZN6#198402-198903

LH

main68211-89105iLN5#,6#,RN5#,6#,7#,VZN6#198402-198903

RH

sub68211-89104

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-89110iLN5#,RN5#,60,61,7#,VZN61..SDT,STD198308-198808

RH

main68170-89111iLN5#,RN5#,60,61,7#,VZN61..SDT,STD198308-198808

LH

main68170-89112iLN5#,RN5#,60,61,7#,VZN61..SDT,STD198308-198808

RH,W/*VW

main68170-89113iLN5#,RN5#,60,61,7#,VZN61..SDT,STD198308-198808

LH,W/*VW

main68170-89115iRN55,6#..SRT198508-198708

RH

main68170-89116iRN55,6#..SR5198608-198903

main68171-89121iLN56,65,RN5#,6#..DLX,SR5,SRT198308-198608

RH

sub68171-89125

main68171-89121iLN56,66,RN55,6#,7#..DLX,SR5198508-198608

DLX PACKAGE,RH

sub68171-89125

main68171-89122iLN56,66,RN55,6#,7#..DLX,SR5198508-198608

DLX PACKAGE,RH,W/*VW

sub68171-89124

main68171-89122iLN56,66,RN55,6#,7#..DLX,SR5198308-198608

RH,W/*VW

sub68171-89124

main68171-89124iRN55..10T..USA198608-198808

DLX PACKAGE,RH,W/*VW

main68171-89124iVZN61..DLX198608-198903

RH,W/*VW

main68171-89124iRN50..4HC,5F;RN61,VZN61..STD..IV198610-198808

VALUE PACKAGE,RH,W/*VW

main68171-89125iRN55..10T..USA198608-198808

DLX PACKAGE,RH

main68171-89125iVZN61..DLX198608-198903

RH

main68171-89125iRN50,70..CND..CBR198610-198808

VALUE PACKAGE,RH

main68172-89106iRN55..10T..USA198308-198608

LH

sub68172-89110

main68172-89106iLN56,66,RN55,6#,7#..DLX,SR5198508-198608

DLX PACKAGE,LH

sub68172-89110

main68172-89107iLN56,65,RN5#,6#..DLX,SR5,SRT198308-198608

LH,W/*VW

sub68172-89109

main68172-89107iLN56,66,RN55,6#,7#..DLX,SR5198508-198608

DLX PACKAGE,LH,W/*VW

sub68172-89109

main68172-89109iLN66,RN55,6#,7#,VZN66..DLX198608-198903

LH,W/*VW

main68172-89109iRN55..10T..USA198608-198808

DLX PACKAGE,LH,W/*VW

main68172-89109iRN50,70..CND..CBR198610-198808

VALUE PACKAGE,LH,W/*VW

main68172-89110iVZN61..DLX198608-198903

LH

main68172-89110iRN50..4HC,5F;RN61,VZN61..STD..IV198610-198808

VALUE PACKAGE,LH

main68172-89110iRN55..10T..USA198608-198808

DLX PACKAGE,LH

main68220-89103iRN55,6#..SRT198508-198708

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030iLN5#,RN5#,60,61,7#,VZN61..SDT,STD198308-198808

W/*VW

main68211-10030iRN70..USA..CBU198601-198608

ECONOMY PACKAGE,W/*VW

main68211-10030iRN70..USA..CBU198601-198608

ECONOMY PACKAGE

68610CHECK ASSY, FRONT DOOR

main68610-89102iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iLN5#,65,RN5#,6#198408-198507

sub68617-90A00

main68617-22010iLN5#,65,RN5#,6#198308-198408

sub68617-12010

main68617-90A00iLN5#,6#,RN5#,6#,7#,VZN6#198507-198903

sub68617-90A01

9011906430

main90119-06430

9015140002

main90151-40002

9054109036

main90541-09036

9095001620

main90950-01620

9165640616

main91656-40616

31 parts on this diagram · 2 diagrams in section
