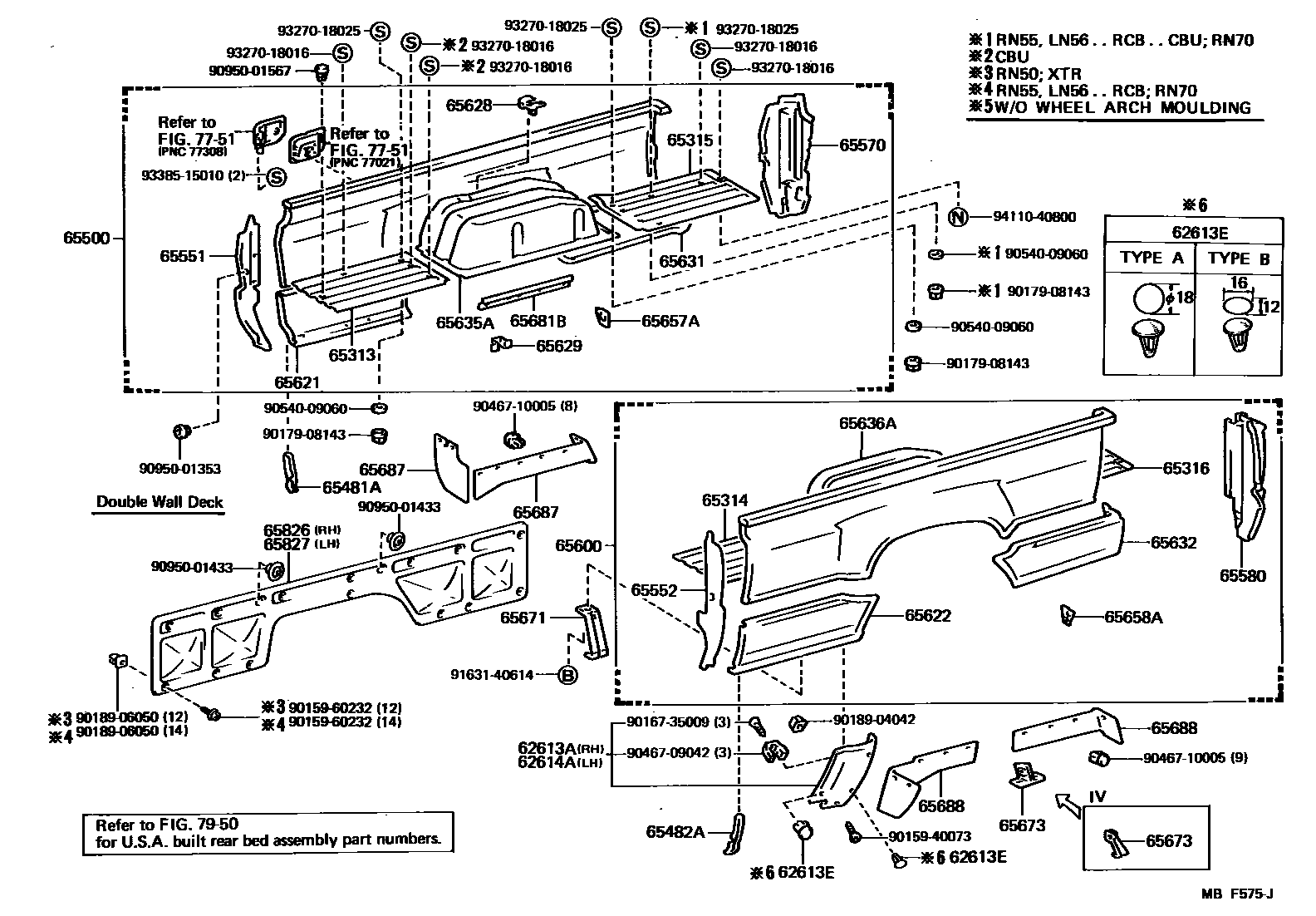

REAR BODY SIDE PANEL

0001 1 0002 1

62613ACOVER, QUARTER WHEEL HOUSE, RH

main62613-89101iRN65..SR5..CBU198308-198407

W/CHIPPING PROTECTOR

main62613-89101iLN6#,RN6#..HLF..CBU198407-198608

main62613-89101-01iLN66,RN6#,VZN6#..HLF..CBU198608-198808

BLACK,BLACK

sub62613-89101

main62613-89101-08iLN66,RN6#,VZN6#..HLF..CBU198608-198808

WHITE,WHITE

sub62613-89101

main62613-89101-09iLN66,RN6#,VZN6#..HLF..CBU198608-198808

YELLOW,LIGHT YELLOW

sub62613-89101

main62613-89103iLN5#,65,RN5#,6#,70..(3QT,HLF)..IV198407-198608

main62613-89103iRN5#,6#..SR5..IV198308-198407

W/*WAM

main62613-89103-01iRN55,6#,70,VZN6#..HLF..IV198608-198808

BLACK,BLACK

sub62613-89103

main62613-89103-08iRN55,6#,70,VZN6#..HLF..IV198608-198808

WHITE,WHITE

sub62613-89103

main62613-89103-09iRN55,6#,70,VZN6#..HLF..IV198608-198808

YELLOW,LIGHT YELLOW

sub62613-89103

62613ECLIP (FOR QUARTER WHEEL HOUSE COVER)

main90467-12027-01iLN66,RN6#,VZN6#..HLF..CBU198608-198808

TYPE A,BLACK,BLACK

sub90467-12027

main90467-12027-08iLN66,RN6#,VZN6#..HLF..CBU198608-198808

TYPE A,WHITE,WHITE

sub90467-12027

main90467-12027-09iLN66,RN6#,VZN6#..HLF..CBU198608-198808

TYPE A,YELLOW,LIGHT YELLOW

sub90467-12027

main90467-12034-01iLN66,RN6#,VZN6#..HLF..CBU198608-198808

TYPE B,BLACK,BLACK

sub90467-12034

main90467-12034-08iLN66,RN6#,VZN6#..HLF..CBU198608-198808

TYPE B,WHITE,WHITE

sub90467-12034

main90467-12034-09iLN66,RN6#,VZN6#..HLF..CBU198608-198808

TYPE B,YELLOW,LIGHT YELLOW

sub90467-12034

62614ACOVER, QUARTER WHEEL HOUSE, LH

main62614-89101iLN65,RN6#..DLX..HLF..CBU198308-198407

W/CHIPPING PROTECTOR

main62614-89101iLN6#,RN6#..HLF..CBU198407-198608

main62614-89101-01iLN66,RN6#,VZN6#..HLF..CBU198608-198808

BLACK,BLACK

sub62614-89101

main62614-89101-08iLN66,RN6#,VZN6#..HLF..CBU198608-198808

WHITE,WHITE

sub62614-89101

main62614-89101-09iLN66,RN6#,VZN6#..HLF..CBU198608-198808

YELLOW,LIGHT YELLOW

sub62614-89101

main62614-89103iLN5#,65,RN5#,6#,70..(3QT,HLF)..IV198407-198608

main62614-89103iRN5#,6#..SR5..IV198308-198407

W/*WAM

main62614-89103-01iRN55,6#,70,VZN6#..HLF..IV198608-198808

BLACK,BLACK

sub62614-89103

main62614-89103-08iRN55,6#,70,VZN6#..HLF..IV198608-198808

WHITE,WHITE

sub62614-89103

main62614-89103-09iRN55,6#,70,VZN6#..HLF..IV198608-198808

YELLOW,LIGHT YELLOW

sub62614-89103

65313PANEL, FLOOR FRONT CORNER, RH

main65313-89112iLN51,RN50,60,61,VZN61..HLF..CBU198308-198808

main65313-89114iLN56,65,RN55,65,66..RCB..CBU198308-198708

sub65313-89116

main65313-89116iRN70..CBU198708-198808

65314PANEL, FLOOR FRONT CORNER, LH

main65314-89114iLN51,RN50,60,61,VZN61..HLF..CBU198308-198808

main65314-89116iRN70..CBU198308-198708

sub65314-89118

main65314-89118iRN70..CBU198708-198808

65315PANEL, FLOOR REAR CORNER, RH

main65315-89112iLN56,RN55..XTR..CBU198308-198808

main65315-89113iRN60,61..HLF..CBU198308-198708

sub65315-89120

main65315-89115iRN70..CBU198308-198708

sub65315-89118

main65315-89116iLN65,RN65,66..RCB..CBU198308-198708

sub65315-89119

main65315-89118iRN70..CBU198708-198808

main65315-89119iRN66,VZN66..RCB..CBU198708-198808

main65315-89120iRN66,VZN66..XTR..CBU198708-198808

65316PANEL, FLOOR REAR CORNER, LH

main65316-89112iLN51,RN50..CBU198308-198808

main65316-89113iLN6#,RN65,66..XTR..CBU198308-198708

sub65316-89120

main65316-89115iRN70..CBU198308-198708

sub65316-89118

main65316-89116iLN65,RN65,66..RCB..CBU198308-198708

sub65316-89119

main65316-89118iRN70..CBU198708-198808

main65316-89119iRN66,VZN66..RCB..CBU198708-198808

main65316-89120iRN66,VZN66..XTR..CBU198708-198808

65481APROTECTOR, FRONT CORNER, RH

main65481-89107iLN5#,65,RN5#,6#..(3QT,HLF)..IV198407-198408

main65481-89108iRN5#..G..USA198407-198808

L=123

main65481-89109iLN51,RN5#..RCB..(DLX,STD)..USA..CBU198407-198808

L=197

65482APROTECTOR, FRONT CORNER, LH

main65482-89104iLN5#,65,RN5#,6#..(3QT,HLF)..IV198407-198408

main65482-89105iLN51,65,RN5#,6#..T1..USA..CBU198407-198808

L=123

main65482-89106iLN51,RN5#..RCB..(DLX,STD)..USA..CBU198407-198808

L=197

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-89169iLN56..XTR..CBU198309-198408

main65500-89169iRN50..USA..CBR198308-198408

W/ONE TOUCH TAIL GATE

main65500-89170iLN56,RN55..XTR..DLX..CBU198309-198408

W/*WAM

main65500-89170iRN50..EFI..CBU198308-198408

main65500-89184iRN55..3QT..USA..CBU;RN55..DLX..USA..CBU198308-198408

main65500-89185iLN56,RN55..RCB..DLX..CBU198308-198408

W/*WAM

main65500-89186iLN65,RN65..DLX..USA..CBU198308-198408

W/*WAM

main65500-89202iRN60..(DLX,STD)..CBU198308-198407

main65500-89203iLN65,RN65..DLX..USA..CBU198308-198407

main65500-89204iRN60..SR5..HLF..CBU198308-198408

main65500-89204iRN65..XTR..CBU198308-198312

W/*WAM

main65500-89244iRN50..USA..CBR198308-198408

W/TWO LATCH TAIL GATE

main65500-89245iRN55..STD..HLF198308-198408

main65500-89251iRN55..3QT..USA..CBU;RN55..DLX..USA..CBU198401-198408

DUBLE WALL DECK

main65500-89252iRN55..DLX..USA..CBU198401-198408

W/*WAM

main65500-89252iRN55..RCB..EFI198401-198408

DUBLE WALL DECK,W/*WAM

main65500-89253iRN55..XTR..CBR..CBU198401-198408

main65500-89254iRN55..XTR..CBR..CBU198401-198408

W/*WAM

main65500-89254iRN50..EFI..CBU198401-198408

DUBLE WALL DECK

main65500-89255iLN65..CND198401-198407

DUBLE WALL DECK

main65500-89255iRN60..HLF..CND198401-198408

main65500-89256iRN65..XTR..CND198401-198408

DUBLE WALL DECK

main65500-89256iRN65..XTR..CND198401-198408

W/*WAM

main65500-89257iLN65,RN65..DLX..USA..CBU198401-198407

DUBLE WALL DECK

main65500-89258iRN65..DLX..CND198401-198408

DUBLE WALL DECK,W/*WAM

main65500-89258iLN65,RN65..DLX..USA..CBU198401-198408

W/*WAM

main65500-89260iRN50..CND198408-198808

W/ONE TOUCH TAIL GATE

main65500-89260iLN56,RN55..XTR..DLX..CBU198408-198508

main65500-89261iRN50..EFI..CBU198408-198508

W/*WAM

main65500-89261iRN55..XTR..(EFI,TBO)..CBU198408-198808

main65500-89262iLN51,RN50..STD..USA198408-198808

W/TWO LATCH TAIL GATE

main65500-89263iRN70..CBU198408-198808

main65500-89264iLN56,RN55..RCB..DLX..CBU198408-198808

W/*WAM

main65500-89264iRN55..RCB..HLF..EFI..CBU198408-198608

main65500-89267iRN60,61,VZN61..(DLX,SDT,STD)..HLF..CBU198408-198808

main65500-89268iRN60,61..CND..CBR198408-198808

W/*WAM

main65500-89269iLN65,RN65,66,VZN66..RCB..DLX..CBU198408-198808

main65500-89270iLN65,RN65,66,VZN66..RCB..DLX..CBU198408-198808

W/*WAM

main65500-89270iRN65,66..RCB..SR5..CBU198408-198708

main65500-89292iRN60..STD..CBU198407-198408

main65500-89293iRN60..STD..CBU198407-198408

DUBLE WALL DECK

main65500-89294iLN65,RN65..DLX..USA..CBU198407-198408

main65500-89295iRN65..DLX..CND198407-198408

DUBLE WALL DECK

65551PANEL, FRONT END POST INNER, RH

main65551-89108iLN5#,6#,RN5#,6#,70,VZN6#..T1..CBU198308-198808

65552PANEL, FRONT END POST INNER, LH

main65552-89108iLN5#,6#,RN5#,6#,70,VZN6#..T1..CBU198308-198808

65570POST ASSY, SIDE PANEL REAR END, RH

main65505-89101iRN55..STD..HLF198308-198408

W/TWO LATCH TAIL GATE

main65505-89102iRN5#..STD..CND198308-198408

W/ONE TOUCH TAIL GATE

main65505-89104iRN50..EFI..CBU198408-198508

main65505-89104iRN50..CND198408-198808

W/ONE TOUCH TAIL GATE

main65505-89105iLN51,RN50..STD..USA198408-198808

W/TWO LATCH TAIL GATE

65580POST ASSY, SIDE PANEL REAR END, LH

main65506-89101iRN50..USA..CBR198308-198408

W/TWO LATCH TAIL GATE

main65506-89102iRN50..USA..CBR198308-198408

W/ONE TOUCH TAIL GATE

main65506-89104iRN50..CND198408-198808

W/ONE TOUCH TAIL GATE

main65506-89104iRN50..EFI..CBU198408-198508

main65506-89105iLN51,RN50..STD..USA198408-198808

W/TWO LATCH TAIL GATE

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-89170iLN56..XTR..CBU198309-198408

main65600-89170iRN50..USA..CBR198308-198408

W/ONE TOUCH TAIL GATE

main65600-89171iRN55..XTR..EFI..CBU198309-198408

W/*WAM

main65600-89171iRN50..EFI..CBU198308-198408

main65600-89183iRN55..3QT..USA..CBU;RN55..DLX..USA..CBU198308-198408

main65600-89184iLN56,RN55..RCB..DLX..CBU198308-198408

W/*WAM

main65600-89185iLN65,RN65..DLX..USA..CBU198308-198408

W/*WAM

main65600-89197iRN60..(DLX,STD)..CBU198308-198407

main65600-89198iLN65,RN65..DLX..USA..CBU198308-198407

main65600-89199iRN65..XTR..CBU198308-198312

W/*WAM

main65600-89199iRN60..SR5..HLF..CBU198308-198408

main65600-89219iRN50..USA..CBR198308-198408

W/TWO LATCH TAIL GATE

main65600-89220iRN55..STD..HLF198308-198408

main65600-89225iRN55..3QT..USA..CBU;RN55..DLX..USA..CBU198401-198408

DUBLE WALL DECK

main65600-89226iRN55..RCB..EFI198401-198408

W/*WAM

main65600-89226iRN55..DLX..USA..CBU198401-198408

DUBLE WALL DECK,W/*WAM

main65600-89227iRN55..XTR..CBR..CBU198401-198408

main65600-89228iRN55..XTR..CBR..CBU198401-198408

W/*WAM

main65600-89228iRN55..XTR..CBR..CBU198401-198408

DUBLE WALL DECK

main65600-89229iRN60..HLF..CND198401-198407

DUBLE WALL DECK

main65600-89230iRN60..SR5..HLF..CBU198401-198408

DUBLE WALL DECK

main65600-89230iLN65..CND198401-198408

W/*WAM

main65600-89231iLN65,RN65..DLX..USA..CBU198401-198407

DUBLE WALL DECK

main65600-89232iRN65..RCB..SR5..CBU198401-198408

DUBLE WALL DECK,W/*WAM

main65600-89232iRN65..RCB..SR5..CBU198401-198408

W/*WAM

main65600-89233iRN50..CND198408-198808

W/ONE TOUCH TAIL GATE

main65600-89233iLN56,RN55..XTR..DLX..CBU198408-198508

main65600-89234iRN50..EFI..CBU198408-198508

W/*WAM

main65600-89234iRN55..XTR..(EFI,TBO)..CBU198408-198808

main65600-89234iRN50..4HC,5F198610-198808

W/ONE TOUCH TAIL GATE & *WAM

main65600-89235iLN51,RN50..STD..USA198408-198808

W/TWO LATCH TAIL GATE

main65600-89236iRN70..CBU198408-198808

main65600-89237iRN70..CBU198408-198808

W/*WAM

main65600-89237iRN55..RCB..HLF..EFI..CBU198408-198608

main65600-89240iLN66,RN65,66,VZN66..XTR..DLX..CBU198408-198808

main65600-89241iRN60,61,VZN61..SR5..HLF..CBU198408-198808

W/*WAM

main65600-89242iLN65,RN65,66,VZN66..RCB..DLX..CBU198408-198808

main65600-89243iRN65,66..RCB..SR5..CBU198408-198708

main65600-89243iLN65,RN65,66,VZN66..RCB..DLX..CBU198408-198808

W/*WAM

main65600-89257iRN60..STD..CBU198407-198408

main65600-89258iLN65,RN65..DLX..USA..CBU198407-198408

main65600-89259iLN65..CND198407-198408

DUBLE WALL DECK

main65600-89260iLN65,RN65..DLX..USA..CBU198407-198408

DUBLE WALL DECK

65621SKIRT, SIDE PANEL, FRONT RH

main65621-89113iLN56,RN55..XTR..DLX..CBU198308-198808

main65621-89114iLN56,RN55..XTR..DLX..CBU198309-198508

W/*WAM

main65621-89114iRN55..XTR..(EFI,TBO)..CBU198308-198808

main65621-89115iLN56,RN55..RCB..(DLX,STD)..CBU198308-198808

main65621-89116iRN55..RCB..HLF..EFI..CBU198308-198608

main65621-89116iRN70..CBU198308-198808

W/*WAM

main65621-89117iRN60..(DLX,STD)..HLF..CBU198308-198407

main65621-89118iRN65,66..RCB..SR5..CBU198308-198708

main65621-89118iLN65,RN65,66,VZN66..RCB..DLX..CBU198308-198808

W/*WAM

main65621-89119iRN65..XTR..CND198308-198808

W/*WAM

main65621-89119iRN60,61,VZN61..SR5..HLF..CBU198308-198808

main65621-89126iLN65,RN65..RCB..DLX..CBU198308-198407

main65621-89133iLN66,RN65,66,VZN66..XTR..DLX..CBU198407-198808

main65621-89134iLN65,RN65,66,VZN66..RCB..DLX..CBU198407-198808

65622SKIRT, SIDE PANEL, FRONT LH

main65622-89113iLN51,RN50..STD..CBU198308-198808

main65622-89114iLN56,RN55..XTR..DLX..CBU198309-198708

W/*WAM

main65622-89114iRN50..EFI198308-198808

main65622-89115iLN56,RN55..RCB..(DLX,STD)..CBU198308-198808

main65622-89116iRN70..CBU198308-198808

W/*WAM

main65622-89116iRN55..RCB..HLF..EFI..CBU198308-198608

main65622-89117iLN65..CND198308-198407

main65622-89118iRN65..RCB..SR5..CBU198308-198708

main65622-89118iLN65,RN65,66,VZN66..RCB..DLX..CBU198308-198808

W/*WAM

main65622-89119iRN65,66,VZN66..XTR..(SR5,SRT)..CBU198308-198808

W/*WAM

main65622-89119iRN60,61,VZN61..SR5..HLF..CBU198308-198808

main65622-89126iLN65,RN65..RCB..DLX..CBU198308-198407

main65622-89133iRN60,61,VZN61..(DLX,SDT,STD)..HLF..CBU198407-198808

main65622-89134iLN65,RN65,66,VZN66..RCB..DLX..CBU198407-198808

65628BRACKET, FUEL INLET HOSE PROTECTOR, UPPER

main65628-89105iLN5#,RN5#,70..CBU198308-198808

main65628-89106iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

65629BRACKET, FUEL INLET HOSE PROTECTOR, SIDE

main65629-89105iLN5#,6#,RN5#,6#,70,VZN6#..10T,3QT,HLF198308-198808

65631SKIRT, SIDE PANEL, REAR RH

main65623-89126iRN50..CND198308-198808

main65623-89127iRN50..EFI..CBU198308-198808

main65623-89127iLN56,RN55..XTR..DLX..CBU198309-198508

W/*WAM

main65623-89128iRN55..3QT..USA..CBU;RN55..DLX..USA..CBU198308-198808

main65623-89129iRN55..RCB..HLF..EFI..CBU198308-198608

main65623-89129iRN70..CBU198308-198808

W/*WAM

main65623-89130iLN65..CND198308-198808

main65623-89131iLN65..CND198308-198808

W/*WAM

main65623-89131iRN60,61,VZN61..SR5..HLF..CBU198308-198808

main65623-89132iLN65,RN65,66,VZN66..RCB..DLX..CBU198308-198808

main65623-89133iLN65,RN65,66,VZN66..RCB..DLX..CBU198308-198808

W/*WAM

main65623-89133iRN65,66..RCB..SR5..CBU198308-198708

65632SKIRT, SIDE PANEL, REAR, LH

main65624-89127iRN50..CND198308-198808

main65624-89128iRN50..EFI..CBU198308-198808

main65624-89128iLN56,RN55..XTR..DLX..CBU198309-198508

W/*WAM

main65624-89129iLN56,RN55..RCB..CND..(CBR,DSL)198308-198808

main65624-89130iRN70..CBU198308-198808

W/*WAM

main65624-89130iRN55..RCB..EFI198308-198608

main65624-89131iLN66,RN65,66,VZN66..XTR..DLX..CBU198308-198808

main65624-89132iRN60..HLF..CND198308-198808

W/*WAM

main65624-89132iRN60,61,VZN61..SR5..HLF..CBU198308-198808

main65624-89133iLN65,RN65,66,VZN66..RCB..DLX..CBU198308-198808

main65624-89134iRN65,66..RCB..SR5..CBU198308-198708

main65624-89134iLN65,RN65,66,VZN66..RCB..DLX..CBU198308-198808

W/*WAM

65635PLATE, REAR WHEEL HOUSE

main65631-89108iLN6#,RN6#..HLF..CBU198308-198808

FR

main65635-89107iLN6#,RN6#..HLF..CBU198308-198808

RR

65635APANEL, WHEEL HOUSE, REAR RH

main65635-89104iLN5#,RN5#,70..CBU198308-198808

main65635-89105iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

65636APANEL, WHEEL HOUSE, REAR LH

main65636-89104iLN5#,RN5#,70..CBU198308-198808

main65636-89105iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

65657ABRACKET, WHEEL HOUSE SEAL, REAR RH

main65657-89101iLN5#,65,RN5#,6#,70..(3QT,HLF)..IV198308-198808

65658ABRACKET, WHEEL HOUSE SEAL, REAR LH

main65658-89102iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

65671BRACE, SIDE PANEL SKIRT, FRONT

main65671-89105iLN51,RN50,60,61,VZN61..HLF198308-198808

65673BRACE, SIDE PANEL SKIRT, REAR

main65608-89104iLN5#,RN5#,70..CBU198308-198808

RH

main65609-89102iLN5#,RN5#,70..CBU198308-198808

LH

main65673-89104iLN65,RN6#..HLF198308-198808

RH

main65674-89104iLN5#,RN5#..(3QT,HLF)..IV198308-198808

LH

65681BBRACKET, WHEEL HOUSE SEAL, SIDE, RH

main65681-89102iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

65687MUDGUARD, WHEEL HOUSE, RH

main65675-89109iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

FR

main65675-89110iLN5#,65,RN5#,6#,70,VZN6#..(3QT,HLF)..IV198308-198808

FR

main65677-89103iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

RR

main65677-89104iLN5#,65,RN5#,6#,70,VZN6#..(3QT,HLF)..IV198308-198808

RR

65688MUDGUARD, WHEEL HOUSE, LH

main65676-89102iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

FR

main65676-89103iLN5#,65,RN5#,6#,70,VZN6#..(3QT,HLF)..IV198308-198808

FR

main65678-89107iLN6#,RN6#,VZN6#..HLF..CBU198308-198808

RR

main65678-89109iLN5#,65,RN5#,6#,70,VZN6#..(3QT,HLF)..IV198308-198808

RR

65826PANEL, REAR BODY SIDE, INNER RH

main65826-89103iRN55..XTR..CND198401-198408

DUBLE WALL DECK

main65826-89103iLN51,RN50..CBU198408-198808

main65826-89104iRN70..CBU198408-198808

main65826-89104iLN56,RN55..RCB..CND198401-198408

DUBLE WALL DECK

main65826-89105iRN60..HLF..CND198401-198408

DUBLE WALL DECK

main65826-89105iRN60,61,VZN61..HLF..CBU198408-198808

main65826-89106iRN65..RCB..CND198401-198408

DUBLE WALL DECK

main65826-89106iLN65,RN65,66,VZN66..RCB..CBU198408-198808

65827PANEL, REAR BODY SIDE, INNER LH

main65827-89103iRN50..EFI..CBU198401-198408

DUBLE WALL DECK

main65827-89103iLN56,RN55..XTR..CBU198408-198903

main65827-89104iLN56,RN55..RCB..CND198401-198408

DUBLE WALL DECK

main65827-89104iLN56,RN55..RCB..CBU198408-198808

main65827-89105iRN60..HLF..CND198401-198408

DUBLE WALL DECK

main65827-89105iLN66,RN65,66..XTR..CBU198408-198808

main65827-89106iRN65..RCB..CND198401-198408

DUBLE WALL DECK

main65827-89106iLN65,RN65,66..RCB..CBU198408-198808

7751

7950

9015940073

main90159-40073

9015960232

main90159-60232

9016735009

main90167-35009

9017908143

main90179-08143

9018904042

main90189-04042

9018906050

main90189-06050

9046709042

main90467-09042

9046710005

main90467-10005

9054009060

main90540-09060

9095001353

main90950-01353

9095001433

main90950-01433

9095001567

main90950-01567

9163140614

main91631-40614

9327018016

main93270-18016

9327018025

main93270-18025

9338515010

main93385-15010

9411040800

main94110-40800

52 parts on this diagram · 2 diagrams in section
