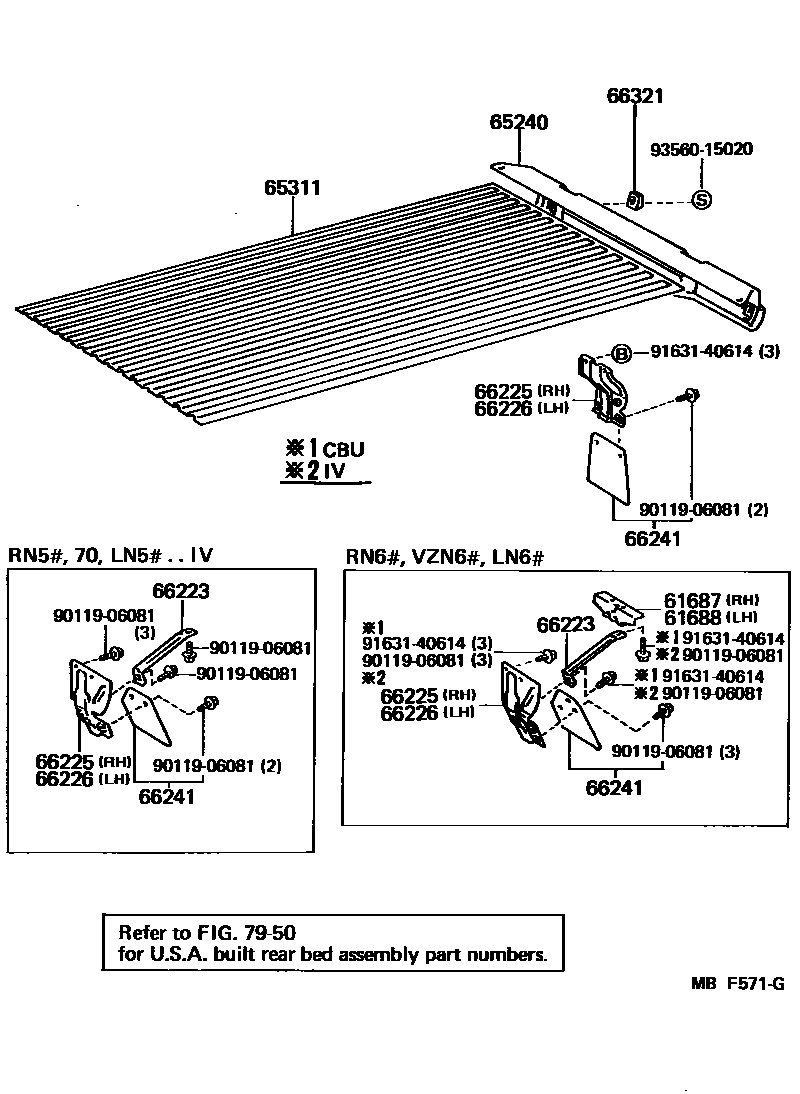

REAR BODY FLOOR & FENDER

61687BRACKET, MUDGUARD, REAR RH

main61687-89101iRN60..(DLX,STD)..CBU198308-198312

main61687-89104iRN60,61,VZN61..HLF..CBU198401-198808

61688BRACKET, MUDGUARD, REAR LH

main61687-89101iRN60..(DLX,STD)..CBU198308-198312

main61688-89101iLN6#,RN65,66,VZN66..XTR..CBU198401-198903

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-89120iLN65,RN5#,6#..T1..CBU198308-198408

sub65240-89122

main65240-89122iLN5#,6#,RN5#,6#,70,VZN6#..T1..CBU198408-198808

65311PANEL, FLOOR, CENTER

main65311-89117iLN56,6#,RN55,65,66..XTR198308-198708

sub65311-89121

main65311-89118iRN70198308-198808

main65311-89119iRN70198308-198708

sub65311-89118

main65311-89121iRN50,61,VZN61..HLF198708-198808

sub65311-89116

66223STAY, REAR FENDER REAR PLATE

main66299-89101iLN5#,RN5#,70..(3QT,HLF)..IV198308-198808

66225SUPPORT, REAR MUDGUARD, RH

main76647-89101iLN5#,RN5#,70..CBU198308-198808

main76647-89102iLN6#,RN6#,VZN6#..HLF198308-198808

main76647-89103iLN5#,RN5#,70..(3QT,HLF)..IV198308-198808

66226SUPPORT, REAR MUDGUARD, LH

main76648-89101iLN5#,RN5#,70..CBU198308-198808

main76648-89102iLN6#,RN6#,VZN6#..HLF198308-198808

main76648-89103iLN5#,RN5#,70..(3QT,HLF)..IV198308-198808

66241MUDGUARD, REAR

main66241-39016iRN5#..STD..CND198308-198808

main66241-39016iRN50..USA..CBR198308-198508

W/ONE TOUCH TAIL GATE

main76625-39075iLN6#,RN6#,VZN6#..HLF198308-198808

RH

main76625-39085iLN5#,RN5#,70..(3QT,HLF)..IV198308-198808

RH

main76626-39075iLN6#,RN6#,VZN6#..HLF198308-198808

LH

main76626-39085iLN5#,RN5#,70..(3QT,HLF)..IV198308-198808

LH

66321BUMPER, GATE RUBBER

main65739-89102iLN5#,6#,RN5#,6#,70,VZN6#..T1..CBU198308-198808

7950

9011906081

main90119-06081

9163140614

main91631-40614

9356015020

main93560-15020

13 parts on this diagram · 1 diagram in section
