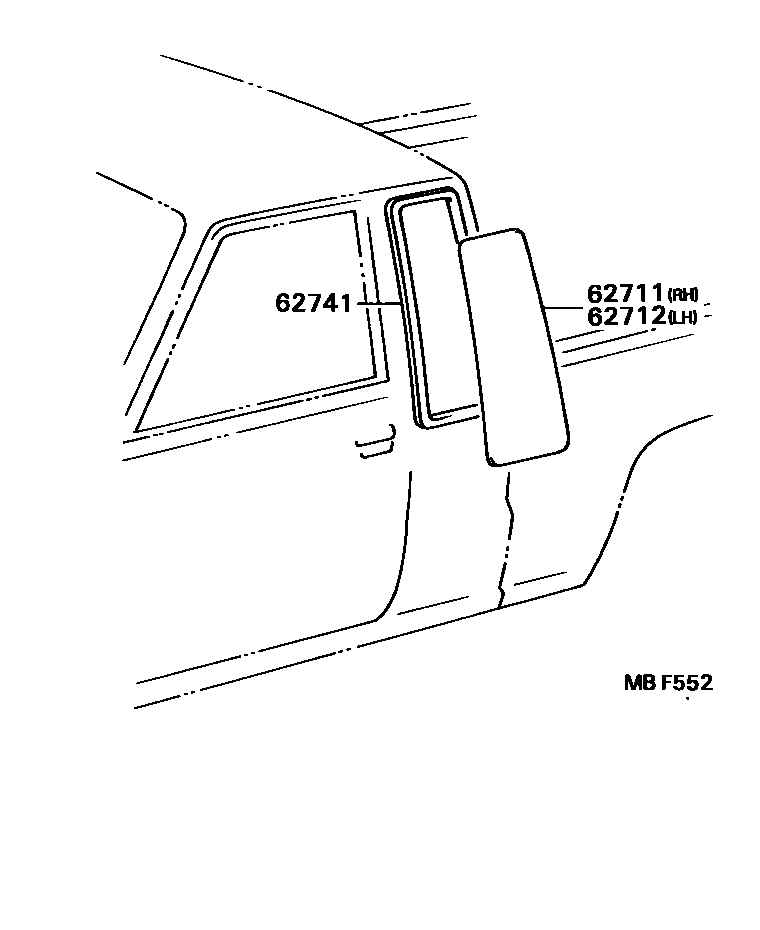

SIDE WINDOW

0001 1 0002 1

62711GLASS, QUARTER WINDOW, RH

main62711-89101iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,STD)198309-198808

*TEM,T=3.5,*TEM,T=3.5

main62711-89102iLN56,65,RN55,65..XTR198309-198408

*TT,T=3.5,*TT,T=3.5

main62711-89103iRN55,65..XTR..SR5198309-198408

*TT,T=3.5,BRONZE

main62711-89111iLN56,66,RN55,65,66,70,VZN66..XTR198408-198808

*TT,T=4.0,*TT,T=4.0

main62711-89112iRN55,65,66,VZN66..XTR..(SR5,SRT)198408-198808

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE

62712GLASS, QUARTER WINDOW, LH

main62712-89101iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,STD)198309-198808

*TEM,T=3.5,*TEM,T=3.5

main62712-89102iLN56,65,RN55,65..XTR198309-198408

*TT,T=3.5,*TT,T=3.5

main62712-89103iRN55,65..XTR..SR5198309-198408

*TT,T=3.5,BRONZE

main62712-89111iLN56,66,RN55,65,66,70,VZN66..XTR198408-198808

*TT,T=4.0,*TT=4.0

main62712-89112iRN55,65,66,VZN66..XTR..(SR5,SRT)198408-198808

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-89101iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

RH

main62742-89101iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

LH

3 parts on this diagram · 2 diagrams in section
