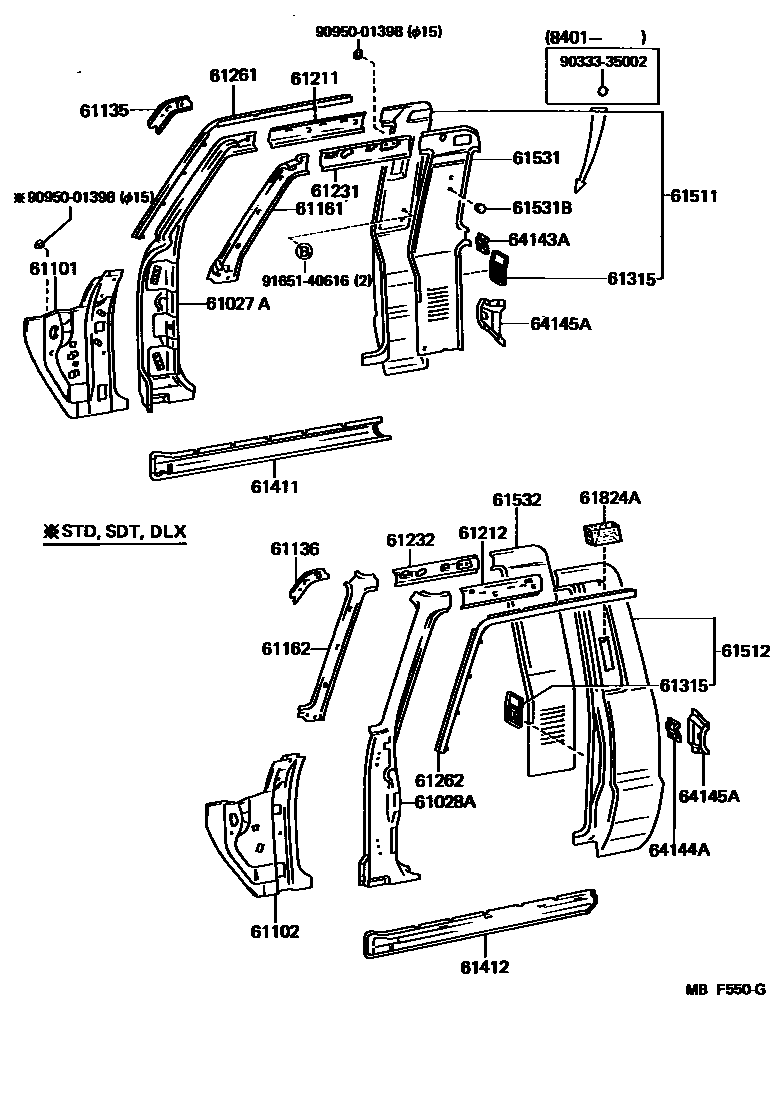

SIDE MEMBER

0001 1 0002 1 0003 1

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-89108iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

main61027-89109iRN5#,6#,VZN6#..(SR5,SRT)..HLF198308-198808

W/*PW

sub61027-89108

main61027-89110iRN60,61,VZN61..V,WG198403-198903

main61027-89111iRN60,61,VZN61..(V,WG)..(SR5,SRT)198403-198903

W/*PW

sub61027-89110

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-89108iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

main61028-89109iRN5#,6#,VZN6#..(SR5,SRT)..HLF198308-198808

W/*PW

sub61028-89108

main61028-89110iRN60,61,VZN61..V,WG198403-198903

main61028-89111iRN60,61,VZN61..(V,WG)..(SR5,SRT)198403-198903

W/*PW

sub61028-89110

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-89129iRN55,6#..(3QT,HLF)..CBR..IV198308-198608

CALIFORNIA SPEC

sub61101-89131

main61101-89129iRN60..(V,WG)..USA198403-198508

sub61101-89131

main61101-89130iLN5#,RN5#..(3QT,HLF)..(CBR,DSL)198308-198608

sub61101-89132

main61101-89131iRN55,70..CND..CBR;RN5#,6#,7#,VZN6#..MTM..(R,W)198708-198903

main61101-89131iRN55,6#,75..EFI,TBO198608-198708

CALIFORNIA SPEC

main61101-89131iLN56,66,RN5#,6#,70..CBR,DSL,TD198612-198808

PLANT A51-A54

main61101-89133iRN50..CND;RN5#,70..G198612-198808

PLANT.P11

main61101-89134iLN56,66,RN5#,6#,70..CBR,DSL,TD198608-198612

PLANT.P11

sub61101-89133

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-89125iLN5#,6#,RN5#,6#,7#198308-198608

main61102-89125iLN56,66,RN5#,6#,7#,VZN6#198608-198903

PLANT.P11

main61102-89128iLN56,66,RN5#,6#,7#,VZN6#198608-198903

PLANT.A51-A54

61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH

main61135-89106iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH

main61136-89106iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-89107iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-89107iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

61211RAIL, ROOF SIDE, OUTER RH

main61211-89105iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

61212RAIL, ROOF SIDE, OUTER LH

main61212-89105iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

61231RAIL, ROOF SIDE, INNER RH

main61231-89109iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

61232RAIL, ROOF SIDE, INNER LH

main61232-89109iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

61261CHANNEL, ROOF DRIP, RH

main61261-89105iLN5#,65,RN5#,6#..RCB198308-198408

sub61261-89109

main61261-89106iLN56,65,RN55,65..XTR198309-198408

sub61261-89110

main61261-89108iRN60,61,VZN61..V,WG198403-198903

main61261-89109iLN5#,65,RN5#,6#,75,VZN6#..RCB198408-198808

main61261-89110iLN56,66,RN55,65,66,70,VZN66..XTR198408-198808

61262CHANNEL, ROOF DRIP, LH

main61262-89105iLN5#,65,RN5#,6#..RCB198308-198408

sub61262-89109

main61262-89106iLN56,65,RN55,65..XTR198309-198408

sub61262-89110

main61262-89108iRN60,61,VZN61..V,WG198403-198903

main61262-89109iLN5#,65,RN5#,6#,75,VZN6#..RCB198408-198808

main61262-89110iLN56,66,RN55,65,66,70,VZN66..XTR198408-198808

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-89102iRN60,61,VZN61..V,WG198403-198903

BACK DOOR

main61309-89103iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

LH

main61309-89104iLN5#,6#,RN5#,6#,7#,VZN6#..T1198308-198808

RH

main61315-22020iRN60,61,VZN61..V,WG198403-198903

FR DOOR

61411PANEL, ROCKER, OUTER RH

main61411-89105iRN5#,6#,VZN6#..(SR5,SRT)..IV198308-198903

main61411-89106iLN56,6#,RN55,6#,70..DLX..CBU198308-198903

W/ROCKER MOULDING

61412PANEL, ROCKER, OUTER LH

main61412-89105iLN5#,6#,RN5#,6#,7#,VZN6#..DLX,STD198308-198903

main61412-89106iRN5#,6#,VZN6#..(SR5,SRT)..CBU198308-198903

W/ROCKER MOULDING

61511PILLAR, QUARTER LOCK, RH

main61501-89106iLN5#,65,RN5#,6#..RCB..(DLX,STD)198308-198808

main61501-89107iRN5#,6#..RCB..SR5..IV198308-198408

W/ROCKER MOULDING

sub61501-89106

main61501-89112iLN56,6#,RN55,65,66,70,VZN66..XTR..(DLX,STD)198309-198808

sub61501-89117

main61501-89113iLN56,65,RN55..XTR..DLX..CBU198309-198408

W/ROCKER MOULDING

sub61501-89112

main61501-89117iRN55,66,VZN66..XTR..(SR5,SRT)198508-198808

main61511-89120iRN60,61,VZN61..V,WG198403-198903

61512PILLAR, QUARTER LOCK, LH

main61502-89107iLN56,RN5#,6#,75,VZN6#..RCB198308-198808

main61502-89108iRN5#,6#..RCB..SR5..IV198308-198408

W/ROCKER MOULDING

sub61502-89107

main61502-89113iRN55,65..XTR..SR5..IV198309-198808

sub61502-89120

main61502-89114iRN55,65..XTR..SR5..CBU198309-198408

W/ROCKER MOULDING

sub61502-89113

main61502-89120iRN55,66,VZN66..XTR..(SR5,SRT)198508-198808

main61512-89126iRN60,61,VZN61..V,WG198403-198903

61531PANEL, BACK CORNER, INNER RH

main61531-89112iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

main61531-89113iLN5#,65,RN5#,6#,75,VZN6#..RCB198308-198808

main61531-89116iRN60,61,VZN61..V,WG198403-198903

61531BPLUG, HOLE(FOR BACK CORNER INNER PANEL)

main90950-01159-34iLN5#,65,RN5#,6#..RCB..(DLX,STD)198308-198401

BLUE,BLUE,TRIM8#

sub90950-01159

main90950-01159-46iLN5#,65,RN5#,6#..RCB..(DLX,STD)198308-198401

BROWN,BROWN,TRIM4#

sub90950-01159

main90950-01159-53iLN5#,65,RN5#,6#..RCB..(DLX,STD)198308-198401

GRAY,GRAY,TRIM1#

sub90950-01159

61532PANEL, BACK CORNER, INNER LH

main61532-89112iLN56,6#,RN55,65,66,70,VZN66..XTR198309-198808

main61532-89113iLN5#,65,RN5#,6#,75,VZN6#..RCB198308-198808

main61532-89116iRN60,61,VZN61..V,WG198403-198903

61824APLATE, NOISE CONTROL, NO.1

main61824-89101iLN56,RN5#,6#,75,VZN6#..RCB198608-198903

64143AREINFORCEMENT, BACK CORNER PANEL, RH

main64143-89101iLN5#,65,RN5#,6#,75,VZN6#..RCB198403-198808

64144AREINFORCEMENT, BACK CORNER PANEL, LH

main64144-89101iLN5#,65,RN5#,6#,75,VZN6#..RCB198403-198808

64145AGUSSET, UPPER BACK PANEL REINFORCEMENT

main64145-89101iLN5#,65,RN5#,6#,75,VZN6#..RCB198308-198808

9033335002

main90333-35002

9095001398

main90950-01398

9165140616

main91651-40616

29 parts on this diagram · 3 diagrams in section
