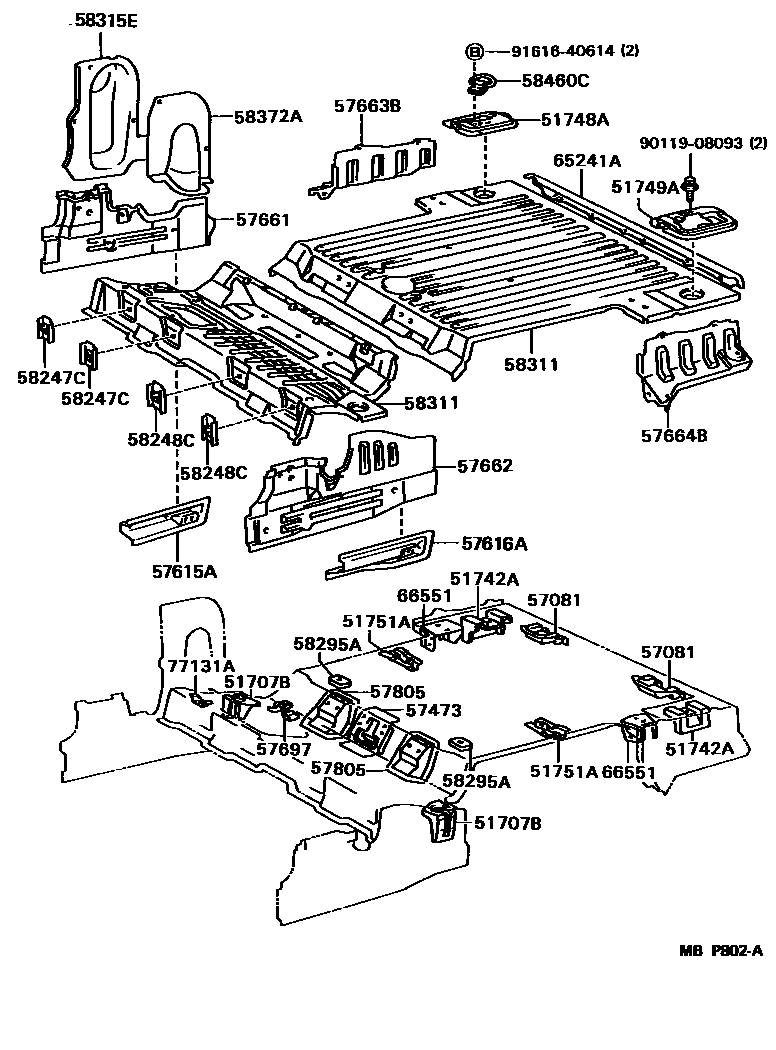

REAR FLOOR PANEL & REAR FLOOR MEMBER
51707BBRACKET SUB-ASSY, CAB MOUNTING, NO.4
RH
LH
51742ABRACKET, REAR BODY MOUNTING, NO.2
51748AGUSSET, BODY SUPPORT BRACKET, NO.2 RH
51749AGUSSET, BODY SUPPORT BRACKET, NO.2 LH
51751ABRACKET, BODY SUPPORT, NO.1
RH
LH
57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING
57473REINFORCEMENT, REAR SEATBACK HINGE
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57661PANEL, REAR FLOOR SIDE, FRONT RH
57662PANEL, REAR FLOOR SIDE, FRONT LH
57663BPANEL, REAR FLOOR SIDE, REAR RH
57664BPANEL, REAR FLOOR SIDE, REAR LH
57697RETAINER, REAR SEAT CUSHION
57805REINFORCEMENT SUB-ASSY, BELT ANCHOR
58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58295AREINFORCEMENT, SEAT BELT ANCHOR FLOOR
58311PAN, REAR FLOOR
FR
RR
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58372AHOUSING, FUEL INLET PIPE
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
65241ASILL, REAR CROSS
66551RETAINER, ROLL OVER BAR
77131ABRACKET, FUEL INLET PIPE SUPPORT
9011908093
main90119-08093
9161640614
main91616-40614
27 parts on this diagram · 2 diagrams in section
