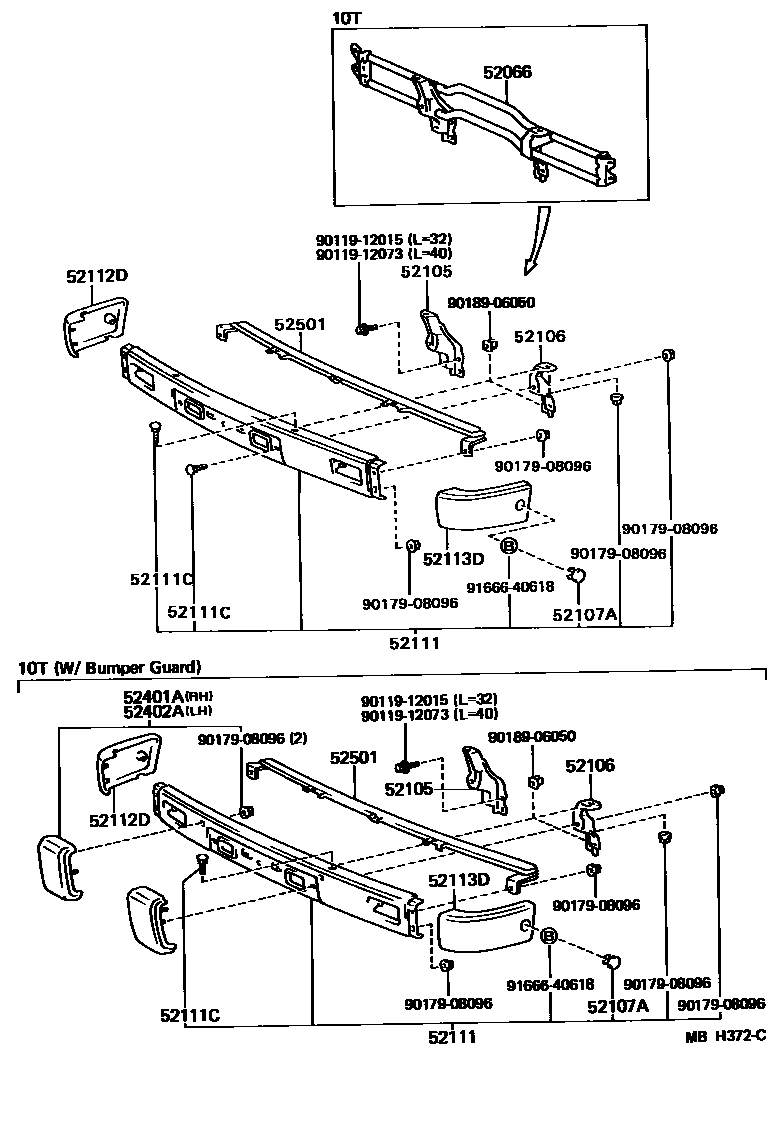

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52066BAR SUB-ASSY, FRONT BUMPER, CENTER

main52066-89101iRN55..10T198408-198608

main52066-89102iRN55..10T198608-198808

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-89105iLN5#,65,RN5#,6#198308-198408

sub52011-89108

main52011-89108iRN55..10T..USA198502-198511

VALUE PACKAGE

main52011-89108iLN56,RN5#,7#..HLF,HVY198408-198608

main52011-89111iLN66,RN6#,VZN6#198508-198903

main52011-89112iLN56,RN5#,7#..HLF,HVY198608-198808

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-89105iLN5#,65,RN5#,6#198308-198408

sub52012-89108

main52012-89108iRN55..HLF,HVY;LN5#,65,RN50,6#198408-198608

main52012-89108iRN55..10T..USA198502-198511

VALUE PACKAGE

main52012-89111iLN66,RN6#,VZN6#198508-198903

main52012-89113iLN56,RN5#,7#..HLF,HVY198608-198808

52107ACOVER, FRONT BUMPER ARM HOLE

main52127-89101iLN5#,6#,RN5#,6#,7#198308-198903

52111BUMPER ASSY, FRONT

main52101-89101iRN55,75..STD..WT198608-198808

CHROME PLATED

main52101-89102iLN56,RN5#,7#..HLF,HVY198608-198808

main52101-89103iRN55..10T198608-198808

main52111-39435iLN56,RN55..DLX..CND198308-198407

COLD SPEC

sub52111-39495

main52111-39445iLN51,RN5#..STD..USA198308-198407

COLD SPEC

sub52111-39555

main52111-39485iRN55..CND..EFI198308-198407

COLD SPEC

sub52111-39505

main52111-39495iLN56,RN55..DLX..USA198308-198608

sub52111-89135

main52111-39505iRN5#..HLF..USA..(EFI,TBO)198308-198608

sub52111-89136

main52111-39515iLN56,RN5#,7#..DLX,SR5,SRT198308-198608

CHROME PLATED

sub52111-89139

main52111-39515iRN55..10T..USA198502-198511

VALUE PACKAGE

sub52111-89139

main52111-39525iRN6#..SR5,SRT198308-198608

sub52111-89140

main52111-39535iLN6#,RN6#..DLX,SDT,STD198308-198608

sub52111-89144

main52111-39545iLN66,RN6#198308-198611

CHROME PLATED

sub52111-89146

main52111-39555iRN5#,75..STD..(HLF,HVY)198308-198608

sub52111-89134

main52111-39555iRN70..USA..CBU198601-198608

ECONOMY PACKAGE

sub52111-89134

main52111-39585iRN55..10T198408-198608

sub52111-89152

main52111-89146iLN66,RN6#198611-198708

CHROME PLATED

main52111-89158iLN66,RN6#198608-198708

main52111-89164iRN6#,VZN6#198708-198903

main52111-89165iRN6#,VZN6#198708-198903

CHROME PLATED

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08035iRN6#,VZN6#198308-198903

CHROME PLATED

main90112-08035iRN55..10T..USA198502-198511

VALUE PACKAGE

main90112-08038iLN56,RN55,7#..DLX198308-198608

main90112-08050iLN51,RN5#,75..SR5,SRT,STD198308-198608

main90112-08050iRN70..USA..CBU198601-198608

ECONOMY PACKAGE

main90112-08065iLN66,RN6#198608-198903

52112DEXTENSION, FRONT BUMPER, RH

main52102-89103iLN5#,RN5#,7#198308-198608

main52102-89106iLN6#,RN6#,VZN6#198308-198903

52113DEXTENSION, FRONT BUMPER, LH

main52103-89103iLN5#,RN5#,7#198308-198608

main52103-89106iLN6#,RN6#,VZN6#198308-198903

52401AGUARD SUB-ASSY, FRONT BUMPER, RH

main52401-39045iRN55..10T198408-198608

sub52401-89103

main52401-89104iRN55..10T198608-198808

52402AGUARD SUB-ASSY, FRONT BUMPER, LH

main52402-39015iRN55..10T198408-198608

sub52402-89101

main52402-89102iRN55..10T198608-198808

52501FILLER SUB-ASSY, FRONT BUMPER

main52501-89102iRN55..HLF,HVY;LN5#,6#,RN50,6#,7#198308-198608

sub52501-89104

main52501-89102iRN55..10T..USA198502-198511

VALUE PACKAGE

sub52501-89104

main52501-89103iRN55..10T198408-198608

main52501-89104iLN66,RN6#,VZN6#198608-198903

9011912015

main90119-12015

9011912073

main90119-12073

9017908096

main90179-08096

9018906050

main90189-06050

9166640618

main91666-40618

16 parts on this diagram · 4 diagrams in section
