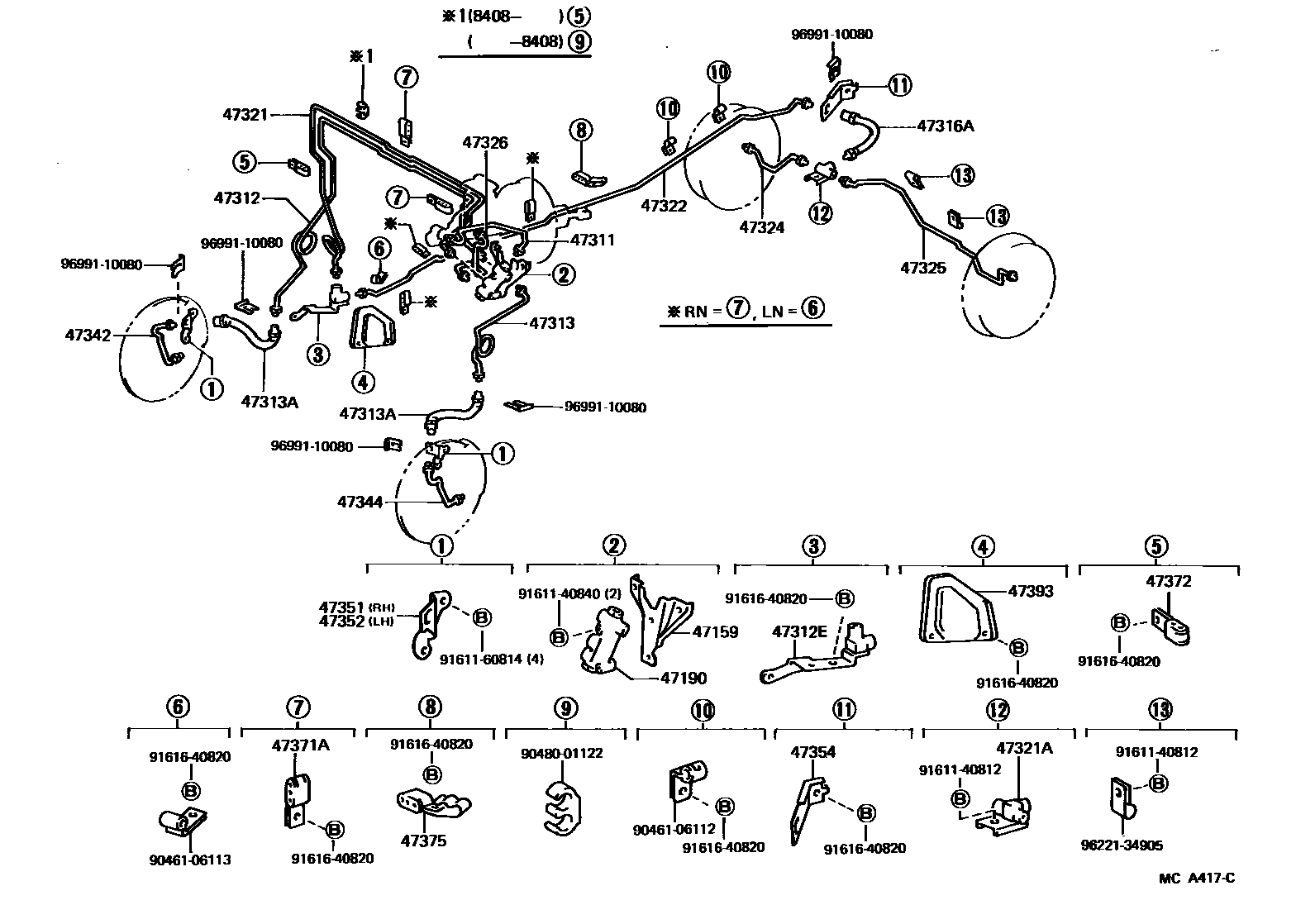

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1 0006 1

47159BRACKET, PROPORTIONING VALVE

main47159-35030iLN5#,RN5#,70..HLF198308-198608

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-35020iLN5#,RN5#..HLF198308-198508

main47190-35030iLN56,RN5#,70..HLF198508-198608

47311TUBE, FRONT BRAKE, NO.1

main47311-35330iRN55..3QT,HVY198308-198403

main47311-35370iLN6#,RN6#..DLX,SR5,STD198308-198903

main47311-35380iLN5#,RN5#..HLF198308-198608

main47311-35400iRN6#..TBO198403-198808

main47311-35410iLN5#,RN5#..(DLX,SR5,STD)..HLF198408-198608

main47311-35420iRN5#,70..HLF..(CBR,EFI)198508-198608

main47311-35430iRN5#,70..HLF..(CBR,EFI)198608-198903

47312TUBE, FRONT BRAKE, NO.2

main47312-35360iRN5#..HLF..CBR198308-198508

main47312-35370iRN5#,70..CBR198308-198808

main47312-35372iRN55..TBO;RN55,75..10T,HVY198408-198808

main47312-35380iLN5#198308-198509

sub47312-35381

main47312-35381iLN56198509-198608

main47312-35390iLN56198608-198708

main47312-35470iRN6#198308-198408

main47312-35480iLN65198308-198508

main47312-35510iRN5#..HLF..EFI198308-198508

main47312-35540iRN6#..EFI198408-198508

main47312-35550iRN6#..CBR198408-198508

main47312-35560iVZN6#198711-198903

main47312-35570iRN55..TBO198501-198608

main47312-35630iRN6#..CBR,EFI198508-198903

main47312-35640iRN6#..TBO198508-198708

main47312-35650iLN66198508-198708

main47312-35690iRN5#,70..CBR198508-198608

main47312-35700iRN55..HLF..EFI198508-198608

main47312-35740iRN55..SR5198608-198808

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10108iLN5#,RN5#,70..HLF198308-198608

main90413-10188iLN66,RN6#,VZN6#198508-198812

main90413-10233iRN61,VZN61198812-198903

main90415-10006iLN65,RN60,65,75;RN55..10T,3QT,HVY198308-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-35260iLN56198308-198608

main47313-35270iRN5#,70..HLF..(CBR,EFI)198308-198808

main47313-35271iRN55,75..10T,HVY198408-198808

main47313-35290iLN56198608-198708

main47313-35320iLN65,RN6#198308-198508

main47313-35380iVZN6#198711-198903

main47313-35390iRN55..TBO198501-198608

main47313-35410iLN66,RN6#..CBR,EFI,TD198508-198903

main47313-35450iRN6#..TBO198508-198708

main47313-35480iRN5#,70..HLF..(CBR,EFI)198508-198608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02383iLN65,RN6#198308-198508

main90947-02447iLN5#,RN5#,7#198308-198808

main90947-02588iRN61,VZN61198812-198903

sub96950-33555

main96950-33555iLN66,RN6#,VZN6#198508-198812

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02589iRN61,VZN61198812-198903

main96940-34305iLN56,66,RN5#,6#,7#,VZN6#198308-198812

main96940-34805iLN65,RN6#198308-198508

47321TUBE, REAR BRAKE, NO.1

main47321-35180iRN5#..HLF..(CBR,EFI)198308-198508

main47321-35190iRN55..3QT,HVY198308-198408

main47321-35191iRN55..TBO;RN55,75..10T,HVY198408-198808

main47321-35200iLN5#198308-198509

sub47321-35201

main47321-35201iLN56198509-198608

main47321-35220iLN56198608-198708

main47321-35250iLN65198308-198508

main47321-35260iRN6#198308-198408

main47321-35280iRN6#198408-198508

main47321-35290iVZN6#198711-198903

main47321-35300iRN55..TBO198501-198608

main47321-35310iRN6#..CBR,EFI198508-198903

main47321-35340iRN6#..TBO198508-198708

main47321-35350iLN66198508-198708

main47321-35390iRN5#,70..HLF..(CBR,EFI)198508-198608

main47321-35420iRN5#,70..HLF..(CBR,EFI)198608-198808

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10152iLN5#,RN5#198308-198808

main90413-10162iLN6#,RN6#,VZN6#198308-198903

main90413-10198iLN56,RN5#,70..ST198508-198808

47322TUBE, REAR BRAKE, NO.2

main47322-35180iLN56,RN55198308-198808

main47322-35200iLN56,RN55..HLF198308-198608

main47322-35210iRN50198608-198808

main47322-35220iLN51,RN50198308-198608

main47322-35290iRN60198308-198508

main47322-35300iLN65,RN65198308-198508

main47322-35350iRN70198508-198608

main47322-35360iRN75198508-198808

main47322-35390iLN66,RN66,VZN66198508-198808

main47322-35400iRN61,VZN61198508-198903

main47322-35410iRN70198608-198808

47324TUBE, REAR BRAKE, NO.4

main47324-35060iRN55..10T,HVY198408-198508

main47324-35070iLN5#,RN5#198308-198508

main47324-35080iLN65,RN6#198308-198508

main47324-35090iRN55,75..WT198508-198808

main47324-35100iLN66,RN6#,VZN6#198508-198903

main47324-35120iRN55..(10T,HVY)..ST198508-198808

main47324-35130iLN56,RN5#,70..HLF198508-198808

47325TUBE, REAR BRAKE, NO.5

main47325-35070iRN55..10T,HVY198408-198508

main47325-35080iLN5#,RN5#198308-198508

main47325-35090iLN65,RN6#198308-198508

main47325-35100iRN55,75..WT198508-198808

main47325-35110iLN66,RN6#,VZN6#198508-198903

main47325-35130iRN55..(10T,HVY)..ST198508-198808

main47325-35140iLN56,RN5#,70..HLF198508-198808

47326TUBE, REAR BRAKE, NO.6

main47321-35080iLN56,RN55..DSL,TBO198308-198608

main47321-35410iRN5#,70..HLF..(CBR,EFI)198508-198608

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35030iLN65,RN6#198308-198508

sub47341-35120

main47341-35090iLN5#,RN5#,7#198308-198808

sub47341-35110

main47341-35100iLN66,RN6#,VZN6#198508-198903

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35030iLN65,RN6#198308-198508

sub47343-35120

main47343-35090iLN5#,RN5#,7#198308-198808

sub47343-35110

main47343-35100iLN66,RN6#,VZN6#198508-198903

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35130iLN5#,RN5#198308-198808

main47351-35140iRN55,75..10T,HVY198408-198808

main47352-35170iLN66,RN6#,VZN6#198508-198903

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35110iLN5#,RN5#198308-198808

main47352-35120iRN55,75..10T,HVY198408-198808

main47354-35080iLN66,RN6#,VZN6#198508-198903

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-35070iLN5#,RN5#,70..HLF198308-198608

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35020iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

DASH PANEL SIDE

main47371-35030iLN56,66,RN5#,6#,70..CBR,DSL,TD198308-198808

SIDE RAIL SIDE

main47371-35040iLN56,RN5#,6#,75..DSL,EFI,TBO198308-198903

SIDE RAIL SIDE

47372CLAMP, BRAKE TUBE, NO.2

main47372-35010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47375CLAMP, BRAKE TUBE, NO.5

main47375-35010iRN5#,70..CBR198308-198808

main47375-35020iRN5#,75..EFI,TBO198308-198808

main47375-35050iLN5#198308-198708

47393INSULATOR, BRAKE TUBE HEAT

main47393-35050iLN5#..DSL198308-198508

sub47393-35051

main47393-35051iLN56198508-198708

main47393-35060iLN65198308-198508

main47393-35070iRN6#198308-198508

main47393-35080iLN66198508-198708

main47393-35090iRN6#198508-198608

sub47393-35100

main47393-35100iRN6#198608-198903

main47393-35120iVZN6#198711-198903

9046106112

main90461-06112

9046106113

main90461-06113

9048001122

main90480-01122

9161140812

main91611-40812

9161140840

main91611-40840

9161160814

main91611-60814

9161640820

main91616-40820

9622134905

main96221-34905

9699110080

main96991-10080

32 parts on this diagram · 4 diagrams in section
