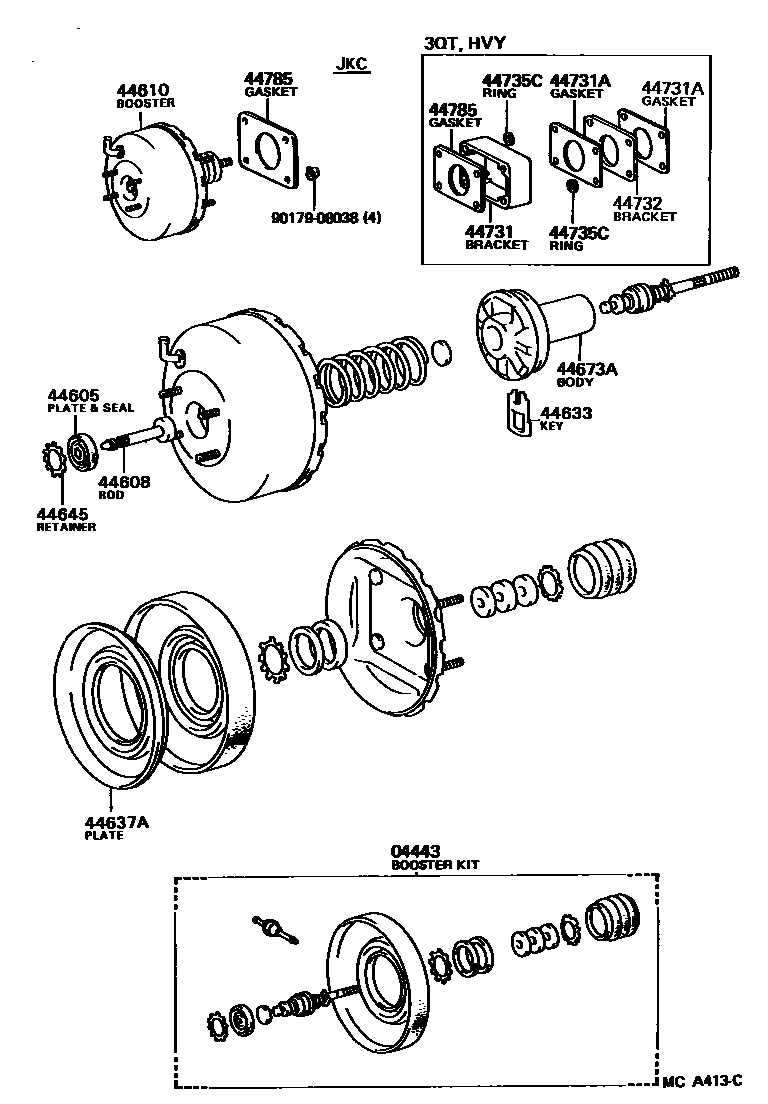

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04443BOOSTER KIT, BRAKE

main04443-35340iRN50,6#;RN55..HLF..(CBR,EFI)198308-198508

main04443-35350iRN55..3QT,HVY198308-198408

main04443-35380iLN5#,65198308-198508

main04443-35500iRN55,75..10T,HVY198408-198808

main04443-35520iRN55..TBO198501-198608

main04443-35560iLN56,66198508-198708

main04443-35570iRN6#..CBR,EFI198508-198903

main04443-35580iRN6#..TBO198508-198808

main04443-35600iRN5#,70..HLF..(CBR,EFI)198508-198608

main04443-35630iRN5#,70..HLF..(CBR,EFI)198608-198808

main04443-35640iLN56198608-198708

main04443-35650iRN55..TBO198608-198808

main04443-35700iVZN6#198711-198808

main04443-35870iVZN61198808-198903

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iLN66,RN6#..CBR,EFI,TD198508-198903

main44605-22021iLN5#,65,RN5#,6#198308-198608

sub44605-10080

main44605-30350iVZN6#198711-198903

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-17090iVZN61198808-198903

main44608-20810iVZN6#198711-198808

main44608-22021iRN55..3QT,HVY198308-198408

main44608-30350iRN55..TBO;RN55,75..10T,HVY198408-198808

main44608-30440iRN6#..TBO198508-198708

main44608-32020iRN55..HLF..(CBR,EFI);LN5#,6#,RN50,6#,70..DLX,SR5,STD198308-198903

44610BOOSTER ASSY, BRAKE

main44610-35520iRN50,6#;RN55..HLF198308-198408

sub44610-35580

main44610-35530iRN55..3QT,HVY198308-198408

main44610-35580iLN5#,65198308-198508

main44610-35760iRN55,75..10T,HVY198408-198808

main44610-35800iLN56,66198508-198708

main44610-35810iRN6#..CBR,EFI198508-198903

main44610-35820iRN6#..TBO198508-198708

main44610-35830iRN55..TBO198501-198608

main44610-35850iRN5#,70..HLF..(CBR,EFI)198508-198608

main44610-35870iRN5#,70..HLF..(CBR,EFI)198608-198808

main44610-35880iLN56198608-198708

main44610-35890iRN55..TBO198608-198808

main44610-3D060iVZN6#198711-198808

main44610-3D260iVZN61198808-198903

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iVZN6#198711-198903

main44633-28130iLN5#,65,RN5#,6#198308-198903

main44633-30350iRN55,61,66..TBO;RN55,75..10T,HVY198408-198808

44637APLATE, BOOSTER DIAPHRAGM

main44637-28300iVZN6#198711-198903

main44637-32020iRN55..HLF;LN5#,65,RN50,6#198308-198808

main44637-32040iRN50,6#,70..CBR,EFI;RN55..HLF..(CBR,EFI)198308-198903

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iVZN6#198508-198903

main44645-22020iRN55..HLF;LN5#,65,RN50,6#198308-198608

44673ABODY, BOOSTER VALVE

main44673-16060iLN5#,65,RN50,6#;RN55..HLF..(CBR,EFI)198308-198508

main44673-20810iVZN6#198711-198903

main44673-28190iRN55..HLF..(CBR,EFI);LN56,66,RN50,6#,70..DLX,SR5,STD198308-198903

main44673-30350iRN55,61,66..TBO;RN55,75..10T,HVY198408-198808

main44673-32020iLN56198608-198708

main44673-32040iRN5#,70..HLF..(CBR,EFI)198608-198808

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35080iRN55..3QT,HVY198308-198408

main44731-35090iRN6#,VZN6#..CBR,EFI198508-198903

main44731-35100iRN5#,70..HLF..(CBR,EFI)198508-198808

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-35020iRN55..3QT,HVY198308-198903

44732BRACKET, BRAKE BOOSTER, REAR

main44732-35040iRN55..3QT,HVY198308-198408

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010iRN5#,70..HLF..(CBR,EFI)198508-198808

44785GASKET, BRAKE BOOSTER

main44785-35020iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

9017908038

main90179-08038

14 parts on this diagram · 7 diagrams in section
