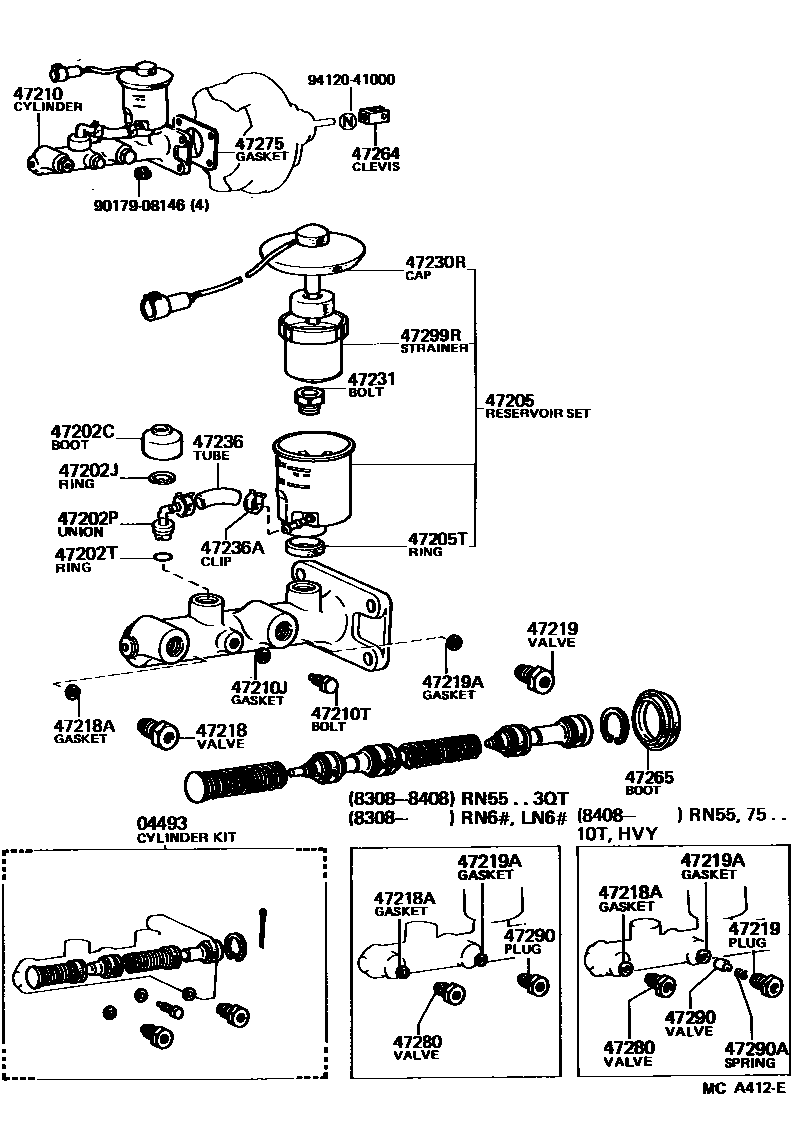

BRAKE MASTER CYLINDER

0001 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-35120iLN5#,RN5#..HLF198308-198408

sub04493-35210

main04493-35140iLN65,RN6#198308-198408

main04493-35160iRN55..3QT,HVY198308-198408

main04493-35180iRN55,75..10T,HVY198408-198808

main04493-35200iLN6#,RN6#..CBR,EFI,TD198408-198903

main04493-35210iLN5#,RN5#,70..(DLX,SR5,STD)..HLF198408-198808

main04493-35220iRN55..TBO198501-198808

main04493-35230iRN6#..TBO198508-198808

main04493-35240iVZN61198808-198903

main04493-35260iVZN6#198711-198808

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10004iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-35080iLN65,RN6#;RN55..10T,3QT,HVY198308-198903

main47202-35140iRN5#..HLF..(CBR,EFI)198308-198508

sub84460-35010

main47202-35170iRN5#,70..HLF..(CBR,EFI)198508-198605

sub47202-35171

main47202-35171iRN5#,70..HLF..(CBR,EFI)198605-198903

sub84460-35010

47205TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)

main90562-18151iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-35330iLN5#,RN5#..HLF198308-198408

sub47201-35480

sub47311-35410

main47201-35360iLN65,RN6#198308-198408

sub47201-35470

main47201-35390iRN55..3QT,HVY198308-198408

main47201-35430iRN55,75..10T,HVY198408-198808

main47201-35470iLN6#,RN6#..CBR,EFI,TD198408-198903

main47201-35480iRN5#..HLF..(CBR,EFI)198408-198508

sub47201-35510

main47201-35490iRN55..TBO198501-198808

main47201-35510iLN5#198410-198708

main47201-35520iRN6#..TBO198508-198808

main47201-35540iRN5#,70..HLF..(CBR,EFI)198508-198605

sub47201-35541

main47201-35541iRN5#,70..HLF..(CBR,EFI)198605-198808

main47201-35600iVZN6#198711-198808

main47201-35800iVZN61198808-198903

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040iLN56,RN55,6#..DSL,TBO198308-198808

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iLN5#,65,RN5#,6#198308-198903

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-12040iLN56,RN55,6#..DSL,TBO198308-198808

main47218-30030iRN55,75..10T,HVY198408-198808

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iLN5#,RN5#198308-198903

main90430-11001iRN55,75..10T,HVY198408-198808

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-35010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47236TUBE, RESERVOIR BRAKE

main47234-14010iRN55..TBO;RN55..10T,HVY;LN5#,6#,RN6#,75198308-198903

main47234-20010iLN5#,RN5#..HLF198308-198611

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLN5#,6#,RN5#,6#,7#198308-198903

main47264-30040iVZN6#198711-198903

47265BOOT, MASTER CYLINDER

main47265-20050iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iLN56198308-198708

main47275-24010iLN66,RN5#,6#,7#,VZN6#198308-198903

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010iRN55,75..10T,HVY198308-198903

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-14010iLN6#,RN6#..CBR,EFI,TD198308-198903

main47281-30020iRN55,75..10T,HVY198408-198808

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05001iRN55,75..10T,HVY198408-198808

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

9017908146

main90179-08146

9412041000

main94120-41000

27 parts on this diagram · 2 diagrams in section
