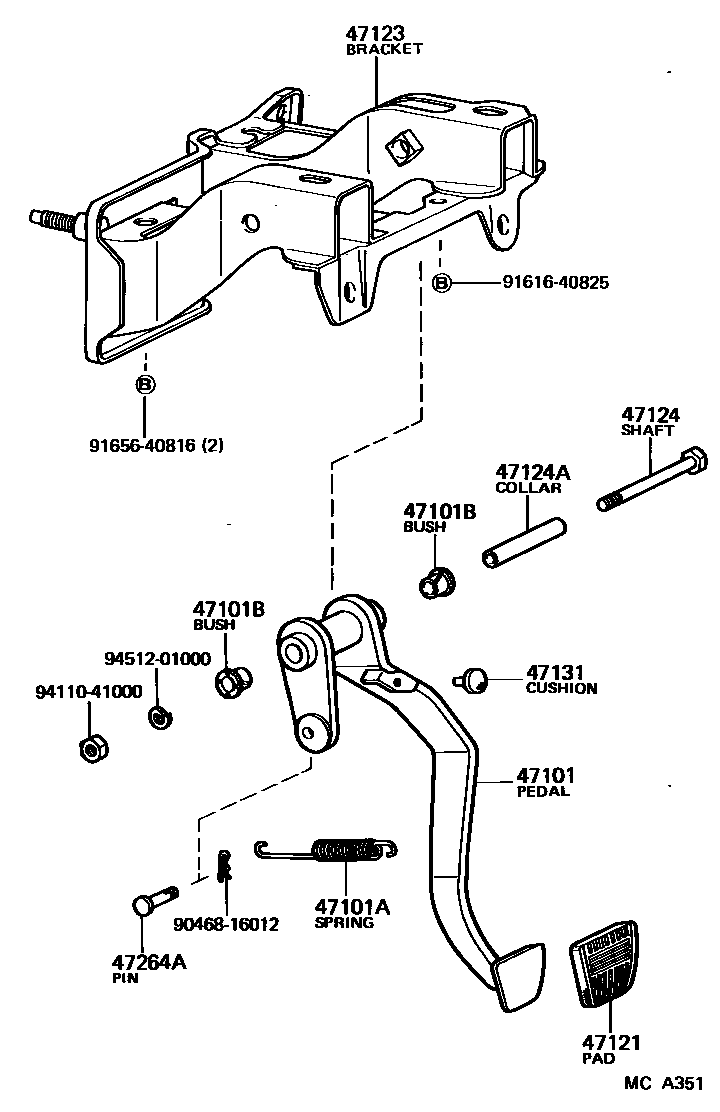

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35220iLN5#,65,RN5#,6#..MTM198308-198508

main47101-35230iRN5#..4FC198308-198408

sub47101-35231

main47101-35231iRN5#,6#..4FC198408-198508

main47101-35240iRN5#,7#..4HC198508-198808

main47101-35250iLN56,66,RN5#,6#,7#,VZN6#..MTM198508-198903

main47101-35260iRN55,6#,VZN6#..4FC198508-198903

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14020iRN5#,7#..4HC198508-198808

main90506-14021iLN5#,6#,RN5#,6#,VZN6#..4F,4FC,5F198308-198903

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47121PAD, BRAKE PEDAL

main31321-14020iLN5#,6#,RN5#,6#,7#,VZN6#..MTM198308-198903

main47121-12011iRN5#,6#,7#,VZN6#..ATM198308-198903

sub47121-12020

47123BRACKET, BRAKE PEDAL

main55106-89118iLN5#,65,RN5#,6#..MTM198308-198508

main55106-89119iRN5#..4FC198308-198508

main55106-89122iLN56,66,RN5#,6#,7#..MTM..(DLX,SR5,STD)198508-198903

main55106-89123iRN5#,6#,7#,VZN6#..ATM198508-198903

main55106-89124iVZN6#..R198508-198903

47124SHAFT, BRAKE PEDAL

main90101-10480iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

47264APIN(FOR PUSH ROD)

main90249-10064iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

9046816012

main90468-16012

9161640825

main91616-40825

9165640816

main91656-40816

9411041000

main94110-41000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
