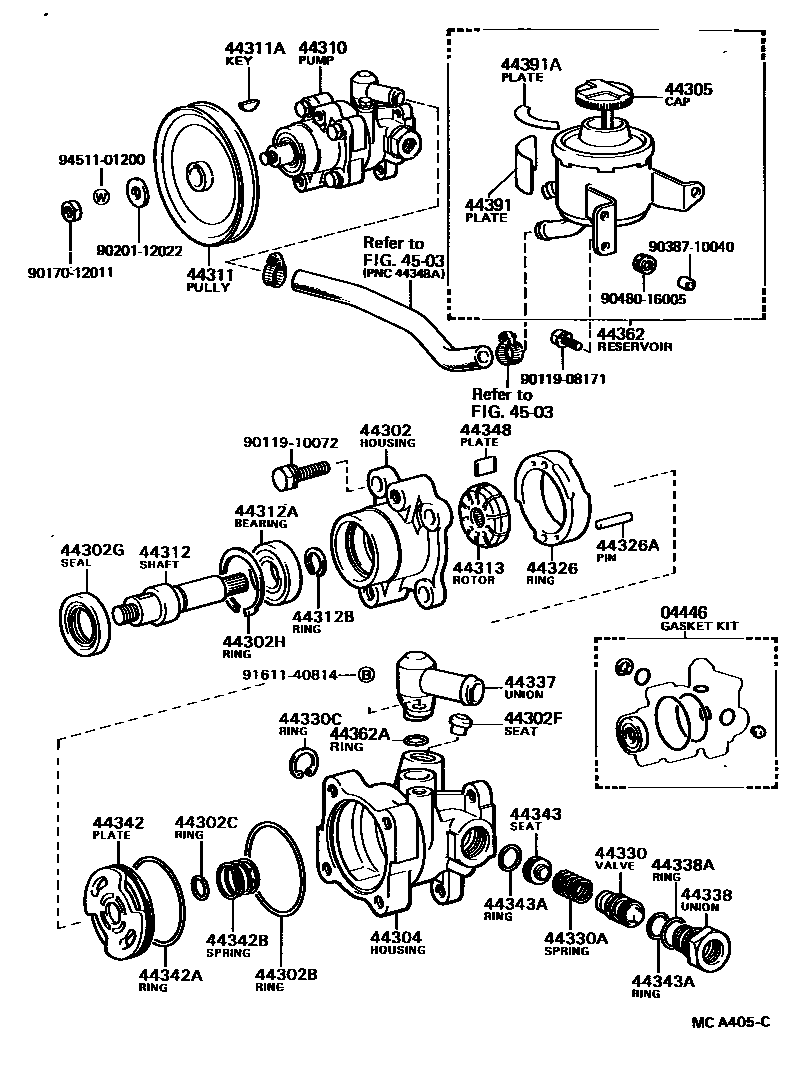

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-35010iRN55..DLX..HLF198308-198903

sub04446-30030

main04446-35020iRN5#..EFI198308-198808

main04446-35040iVZN6#198711-198903

sub04446-20120

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iLN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5)198308-198903

main44302-35010iVZN6#198711-198903

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iRN5#..STD..USA..CBR198308-198903

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iRN55,75..WT;RN55..10T,3QT198308-198903

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iRN5#..EFI198308-198903

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iVZN6#198711-198903

main90311-24001iRN5#..STD..USA..CBR198308-198903

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iRN5#..STD..USA..CBR198308-198903

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-14050iRN5#..EFI198308-198408

main44304-20030iRN55..3QT198308-198408

main44304-35010iLN56,65198308-198408

sub44304-35040

main44304-35020iRN70..IV;RN50..EFI;RN70..STD;RN50..4FC;RN55..RCB..5F..CBR;RN70..W..DLX..USA..CBU198408-198610

sub44304-35021

sub44343-12040

sub90501-12103

main44304-35021iRN5#,6#,70..CBR198610-198808

main44304-35030iRN55,75..WT;RN55..W..10T;RN50..5F..CBR;RN55..XTR..5F..(EFI,TBO);RN55..ATM..(10T,HLF)..EFI198408-198610

sub44304-35031

sub44343-12040

sub90501-12103

main44304-35031iRN55,75..WT;RN55..4HC..10T;RN61..(DLX,SR5,SRT)..(EFI,TBO);RN55,66..(4FC,5F)..(SR5,SRT,STD)..(EFI,TBO)198610-198903

main44304-35040iLN56,6#198408-198610

sub44304-35041

sub44343-12040

sub90501-12103

main44304-35041iLN56,66198610-198708

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12010iVZN6#198711-198810

sub44305-22040

main44305-22040iRN61,VZN61198810-198903

sub44305-22060

main44305-30020iRN5#..STD..USA..CBR198308-198810

sub44305-22040

44310PUMP ASSY, VANE

main44320-35021iRN6#..DLX,SR5198308-198408

main44320-35022iRN6#..CBR198408-198808

main44320-35030iRN55..DLX..HLF198308-198408

main44320-35040iLN65198308-198408

main44320-35041iLN6#198408-198708

main44320-35070iRN5#..EFI198308-198408

main44320-35080iLN56198308-198408

sub44320-35130

main44320-35110iRN5#..STD..USA..CBR198408-198808

main44320-35120iRN55..WT;RN50,75..EFI;RN55..(10T,HLF)..EFI198408-198808

main44320-35130iLN56198408-198708

main44320-35140iRN6#..EFI,TBO198408-198903

main44320-35210iRN55..TBO198608-198808

main44320-35220iVZN6#198711-198712

sub44320-35221

main44320-35221iVZN6#198712-198903

sub44320-35361

main44320-35360iVZN6#..CND198804-198808

sub44320-35361

main44320-35361iVZN61..CND198808-198903

44311PULLEY, VANE PUMP

main44311-20010iRN5#,6#..(DLX,SR5)..HLF198308-198903

main44311-35010iLN56,6#..DLX198308-198808

main44311-35020iVZN6#198711-198903

44311AKEY, VANE PUMP PULLEY

main90280-05008iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

44312SHAFT, VANE PUMP

main44312-12010iLN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5)198308-198903

main44312-12030iVZN6#198711-198903

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iRN5#..STD..USA..CBR198308-198903

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iVZN6#198711-198903

main90520-15001iRN5#..STD..USA..CBR198308-198903

sub90520-15005

44313ROTOR, VANE PUMP

main44313-12010iRN5#..STD..USA..CBR198308-198810

NO MARK

sub44313-22040

main44313-12020iRN55,75..WT;RN55..10T,3QT198308-198810

MARK 1,MARK 1

sub44313-22050

main44313-12030iRN5#..STD..USA..CBR198308-198810

MARK 2,MARK 2

sub44313-22060

main44313-12040iVZN6#198308-198810

MARK 3,MARK 3

sub44313-22070

main44313-12050iRN55..HLF;LN56,6#,RN50,6#,70198308-198810

MARK 4,MARK 4

sub44313-22080

main44313-22040iRN61198712-198903

NO MARK

main44313-22050iRN61198712-198903

MARK 1,MARK 1

main44313-22060iVZN6#198712-198903

MARK 2,MARK 2

main44313-22070iVZN6#198712-198903

MARK 3,MARK 3

main44313-22080iRN61198712-198903

MARK 4,MARK 4

44326RING, CAM(FOR VANE PUMP)

main44325-12010iRN5#..STD..USA..CBR198308-198903

NO MARK

main44325-12020iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

MARK 1,MARK 1

main44325-12030iRN55..HLF;LN56,6#,RN50,6#,70198308-198903

MARK 2,MARK 2

main44325-12040iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

MARK 3,MARK 3

main44325-12050iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

MARK 4,MARK 4

main44325-30100iVZN6#198711-198903

NO MARK

main44325-30110iVZN6#198711-198903

MARK 1,MARK1

main44325-30120iVZN6#198711-198903

MARK 2,MARK2

main44325-30130iVZN6#198711-198903

MARK 3,MARK3

main44325-30140iVZN6#198711-198903

MARK 4,MARK4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iVZN6#198711-198903

L=28,OD=4.0,L=28

main90250-04049iVZN6#198711-198903

L=43,OD=4.0,L=43

main90250-05008iRN55..HLF;LN56,6#,RN50,6#,70198308-198903

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-12130iRN5#..STD..USA..CBR198308-198808

MARK A,MARK A

sub44330-12131

main44330-12140iLN56,RN5#..HLF198308-198808

MARK B,MARK B

sub44330-12141

main44330-12150iRN55,75..WT;RN55..10T,3QT198308-198808

MARK C,MARK C

sub44330-12151

main44330-12160iLN56,RN5#..(DLX,SR5,SRT)..HLF198308-198808

MARK D,MARK D

sub44330-12161

main44330-12170iLN56,RN5#..(DLX,SR5,SRT)..HLF198308-198808

MARK E,MARK E

sub44330-12171

main44330-12180iRN5#..STD..USA..CBR198308-198808

MARK F,MARK F

sub44330-12181

main44330-30100iRN55..TBO198608-198808

MARK A,MARK A

sub44330-32130

main44330-30110iRN55..TBO198608-198808

MARK B,MARK B

sub44330-32140

main44330-30120iRN55..TBO198608-198808

MARK C,MARK C

sub44330-32150

main44330-30130iRN55..TBO198608-198808

MARK D,MARK D

sub44330-32160

main44330-30140iRN55..TBO198608-198808

MARK E,MARK E

sub44330-32170

main44330-30150iRN55..TBO198608-198808

MARK F,MARK F

sub44330-32180

main44330-35070iLN6#,RN6#,VZN6#198308-198808

MARK A,MARK A

sub44330-32070

main44330-35080iLN6#,RN6#,VZN6#198308-198808

MARK B,MARK B

sub44330-32080

main44330-35090iLN65,RN6#..DLX,SR5198308-198808

MARK C,MARK C

sub44330-32090

main44330-35100iLN65,RN6#..DLX,SR5198308-198808

MARK D,MARK D

sub44330-32100

main44330-35110iLN65,RN6#..DLX,SR5198308-198808

MARK E,MARK E

sub44330-32110

main44330-35120iLN6#,RN6#,VZN6#198308-198808

MARK F,MARK F

sub44330-32120

main44330-35190iVZN61..USA198808-198903

MARK A,MARK A

sub44330-35191

main44330-35200iVZN61..USA198808-198903

MARK B,MARK B

sub44330-35201

main44330-35210iVZN61..USA198808-198903

MARK C,MARK C

sub44330-35211

main44330-35220iVZN61..USA198808-198903

MARK D,MARK D

sub44330-35221

main44330-35230iVZN61..USA198808-198903

MARK E,MARK E

sub44330-35231

main44330-35240iVZN61..USA198808-198903

MARK F,MARK F

sub44330-35241

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iRN55..10T;RN55,75..WT198610-198903

main90501-12447iRN55,75..WT;RN55..10T,3QT198308-198610

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

44337UNION, POWER STEERING SUCTION PORT

main44337-35010iLN56,6#..DLX198308-198708

main90404-16016iRN55..HLF;RN50,6#,70198308-198903

44338UNION, PRESSURE PORT

main44308-14040iRN55..3QT198308-198408

sub44308-14041

main44308-14041iRN5#,70..HLF..(CBR,EFI)198408-198808

main44308-35010iRN55..TBO198608-198808

main44308-35020iLN6#,RN6#198308-198903

main44308-35050iVZN6#198711-198903

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iVZN6#198711-198903

ID=19.5,OD=22.5

sub90301-19013

main90301-22001iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

OD=25.5,ID=22.5

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

main44342-12021iVZN6#198711-198712

sub44342-32010

main44342-32010iVZN6#198712-198903

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iVZN6#198711-198903

main90301-53002iRN55..HLF;LN56,6#,RN50,6#,70198308-198903

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iLN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5)198308-198903

44343SEAT, FLOW CONTROL SPRING

main44343-12010iLN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5)198308-198610

main44343-12040iRN55..10T;RN55,75..WT198610-198903

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iRN5#..STD..USA..CBR198308-198903

44348PLATE, VANE PUMP

main44345-12010iRN55,75..WT;RN55..10T,3QT198308-198903

L=14.997,ROTOR NO MARK

main44345-12020iRN55,75..WT;RN55..10T,3QT198308-198903

L=14.995,ROTOR MARK 1

main44345-12030iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

L=14.993,ROTOR MARK 2

main44345-12040iRN60;LN56,65,RN5#,65..(DLX,SR5,SRT)..HLF198308-198903

L=14.991,ROTOR MARK 3

main44345-12040iVZN6#198711-198903

L=14.991,ROTOR M RK 3

main44345-12050iRN5#..STD..USA..CBR198308-198903

L=14.989,ROTOR MARK 4

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-35100iVZN6#198711-198903

main44360-35030iRN6#..CBR,EFI198308-198903

main44360-35050iRN5#..(DLX,SR5,SRT)..HLF198308-198808

main44360-35070iLN56,6#198408-198708

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-12003iVZN6#198711-198903

sub90301-11016

main96711-19013iRN5#..STD..USA..CBR198308-198903

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-12010iLN56,6#198408-198701

main44391-14010iRN55..HLF;RN50,6#,70198610-198810

main44391-30020iRN55,75..WT;RN55..10T,3QT198308-198610

44391APLATE, OIL RESERVOIR CAUTION

main44391-20010iLN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5)198308-198701

sub44392-35010

main44392-35010iRN55..10T;RN55,75..WT198701-198903

4503

9011908171

main90119-08171

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9038710040

main90387-10040

9048016005

main90480-16005

9161140814

main91611-40814

9451101200

main94511-01200

43 parts on this diagram · 2 diagrams in section
