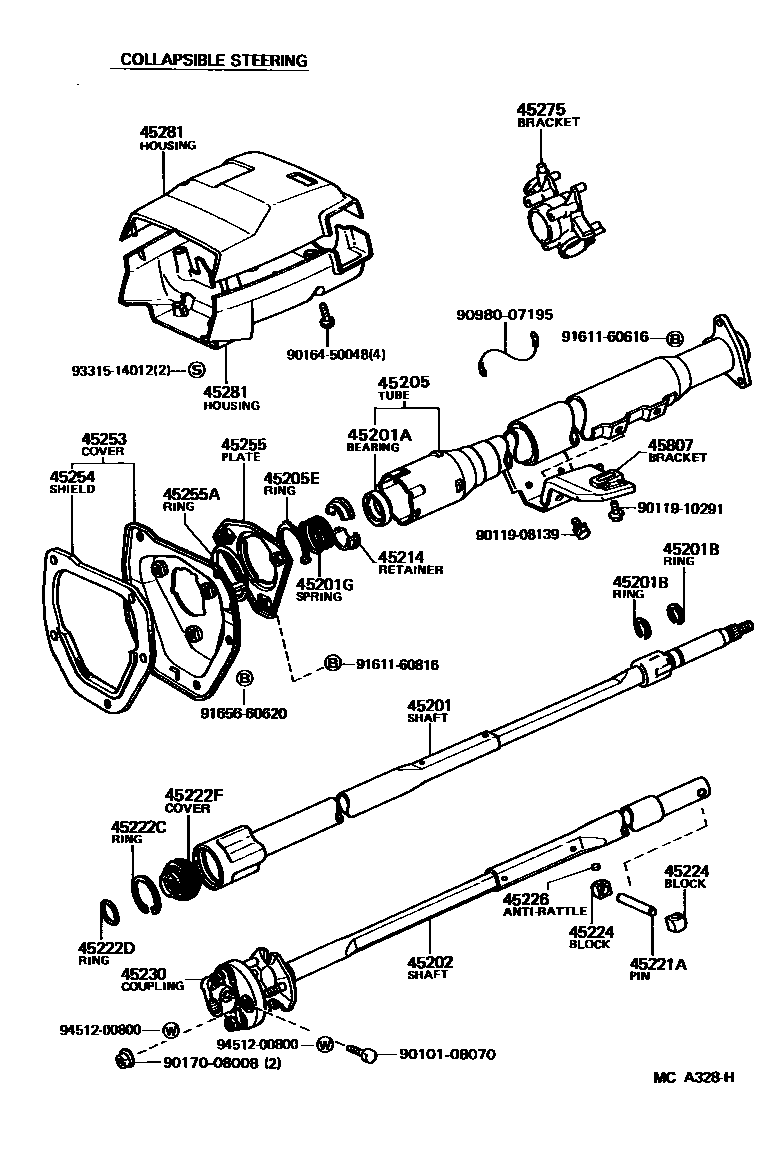

STEERING COLUMN & SHAFT

0001 1 0002 1 0005 1 0006 1 0007 1 0008 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-22050iVZN6#198308-198903

W/TILT STEERING

main45210-35090iLN5#,RN5#,7#198308-198808

main45210-35100iLN65,RN65..5F;RN60..SR5..HLF;RN60..5F..(DLX,STD)198308-198508

main45210-35101iLN66,RN66,VZN66;RN61,VZN61..SR5..HLF;RN61,VZN61..DLX,SDT,STD198508-198903

45201ABEARING(FOR STEERING MAIN SHAFT)

main45225-35010iLN65,RN6#198308-198508

LWR

main45225-60010iLN66,RN6#,VZN6#198508-198903

LWR

main90363-18001iVZN61..V,WG198308-198903

W/TILT STEERING,UPR

main90363-18001iVZN61..V,WG198711-198903

UPR

main90363-28001iRN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO)198308-198903

W/TILT STEERING,CTR

main90363-28001iVZN6#..HLF198711-198903

CTR

main90369-43004iLN5#,RN5#,7#198301-198808

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLN5#,6#,RN5#,6#,7#,VZN6#198308-198808

T=1.20,LWR

main90520-17269iLN66,RN66,VZN66;RN61,VZN61..SR5..HLF;RN61,VZN61..DLX,SDT,STD198308-198903

T=1.20,UPR

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-29388iLN5#,RN5#,7#198308-198808

main90501-45011iRN55..W..10T..USA198308-198903

W/TILT STEERING

main90501-45011iVZN6#198711-198903

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45220-35040iLN5#,RN5#,7#..DLX,SR5,STD198308-198808

main45220-35070iLN56,RN5#..(DLX,SR5,SRT)..HLF198308-198808

W/POWER STEERING

main45220-35100iLN65,RN6#198308-198508

main45220-35110iLN65,RN6#..DLX,SR5198308-198508

W/POWER STEERING

main45220-35120iLN66,RN6#,VZN6#198508-198903

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-35060iLN5#,RN5#,7#198308-198808

main45870-35070iRN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..(SR5,SRT)..CBU;RN50,75..(4F,4FC,5F)..EFI;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV198308-198808

W/TILT STEERING

main45870-35080iLN65,RN6#..DLX,SR5198308-198508

W/TILT STEERING

main45870-35081iVZN6#198508-198903

W/TILT STEERING

main45870-35090iLN65,RN65..5F;RN60..SR5..HLF;RN60..5F..(DLX,STD)198308-198508

main45870-35091iVZN6#..HLF198508-198903

45205ERING, SNAP(FOR STEERING COLUMN TUBE)

main90521-01002iLN5#,65,RN5#,6#198308-198508

main90521-01003iLN56,66,RN5#,6#,7#,VZN6#198508-198903

45214RETAINER, MAIN SHAFT SPRING

main45214-30040iLN5#,RN5#,7#198308-198808

45221APIN(FOR STEERING INTERMEDIATE SHAFT)

main90250-10059iLN5#,RN5#,7#198308-198808

45222CRING, HOLE SNAP(FOR DUST COVER)

main90521-52003iLN5#,RN5#,7#198308-198808

45222DRING, O(FOR DUST COVER)

main90301-23054iLN5#,RN5#,7#198308-198808

45222FCOVER, DUST

main45222-30030iLN5#,RN5#,7#198308-198808

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45224-30040iLN5#,RN5#,7#198308-198808

15.97-16.00,L=15.97-16.00

main45225-30040iLN5#,RN5#,7#198308-198808

16.00-16.03,L=16.00-16.03

45226ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING)

main45226-30020iLN5#,RN5#,7#198308-198808

sub45226-30021

45230COUPLING ASSY, FLEXIBLE

main45230-35020iLN5#,RN5#,7#198308-198808

main45230-35040iLN65,RN6#198308-198508

45253COVER, STEERING COLUMN HOLE

main45025-35070iLN65,RN6#198308-198508

sub45025-35071

main45025-35071iLN66,RN6#,VZN6#198508-198903

main45025-35110iLN5#,RN5#,7#..4F,4FC,5F198308-198808

main45025-35120iRN5#,7#..4HC198508-198808

45254SHIELD, STEERING COLUMN HOLE

main45254-35010iLN6#,RN6#,VZN6#198308-198903

main45254-35040iLN5#,RN5#,7#..4F,4FC,5F198308-198808

main45254-35070iRN5#,7#..4HC198508-198808

45255PLATE, STEERING COLUMN HOLE COVER

main45255-35010iLN5#,RN5#,7#..4F,4FC,5F198308-198808

main45255-35020iLN65,RN6#198308-198508

sub45255-35021

main45255-35021iLN66,RN6#,VZN6#198508-198903

main45255-35030iRN5#,7#..4HC198508-198808

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-60122iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

45275BRACKET, STEERING COLUMN, UPPER

main45280-35160iLN65,RN65..5F;RN60..SR5..HLF;RN60..5F..(DLX,STD)198308-198708

main45280-35161iVZN6#..HLF198708-198903

main45280-35170iRN55..W..10T..USA198308-198708

W/TILT STEERING

main45280-35171iRN55,75..4FC198708-198903

W/TILT STEERING

main45280-35180iRN5#,7#..4HC198508-198708

main45280-35181iRN5#,7#..4HC198708-198808

45281HOUSING, STEERING COLUMN

main45286-35220iLN66,RN66;RN61..HLF..EFI;RN61..DLX,SDT,STD198308-198608

UPR

main45286-35220-02iRN6#..(SR5,SRT)..HLF198608-198903

UPR,RED,RED,TRIM3#

sub45286-35220

main45286-35220-03iLN66,RN66;RN61..SR5..HLF;RN61..DLX,SDT,STD198608-198903

UPR,GRAY,GRAY,TRIM1#

sub45286-35220

main45286-35220-04iLN66,RN6#,VZN6#..HLF198608-198808

UPR,BLUE,BLUE,TRIM8#

sub45286-35220

main45286-35220-05iLN66,RN66;RN61..SR5..HLF;RN61..DLX,SDT,STD198608-198903

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35220

main45286-35230iRN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD)198308-198608

UPR,W/TILT STEERING

main45286-35230-02iRN55..XTR198608-198903

UPR,W/TILT STEERING,RED,RED,TRIM3#

sub45286-35230

main45286-35230-02iVZN6#198711-198903

UPR,W/TILT STEERING, RED,RED,TRIM3#

sub45286-35230

main45286-35230-03iRN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO)198608-198903

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#

sub45286-35230

main45286-35230-04iRN55..W..10T..USA198608-198903

UPR,W/TILT STEERING,BLUE,BLUE,TRIM8#

sub45286-35230

main45286-35230-04iVZN6#198711-198903

UPR,W/TILT STEERING, BLUE,BLUE,TRIM8#

sub45286-35230

main45286-35230-05iRN55..W..10T..USA198608-198903

UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

sub45286-35230

main45286-35230-05iVZN6#198711-198903

UPR,W/TILT STEERING, BEIGE,BEIGE,TRIM4#

sub45286-35230

main45286-35250iRN5#,7#..4HC198508-198608

UPR

main45286-35250-03iRN5#,7#..4HC198608-198808

UPR,GRAY,GRAY,TRIM1#

sub45286-35250

main45286-35250-04iRN5#,7#..4HC198608-198808

UPR,BLUE,BLUE,TRIM8#

sub45286-35250

main45286-35250-05iRN5#,7#..4HC198608-198808

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35250

main45287-35170iLN66,RN66;RN61..HLF..EFI;RN61..DLX,SDT,STD198308-198608

LWR

main45287-35170-02iRN61..DLX..EFI198608-198903

LWR,RED,RED,TRIM3#

sub45287-35170

main45287-35170-03iVZN6#..HLF198608-198903

LWR,GRAY,GRAY,TRIM1#

sub45287-35170

main45287-35170-04iLN66,RN6#,VZN6#..HLF198608-198808

LWR,BLUE,BLUE,TRIM8#

sub45287-35170

main45287-35170-05iLN66,RN66;RN61..SR5..HLF;RN61..DLX,SDT,STD198608-198903

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35170

main45287-35180iRN55..(4F,4FC)..W;RN55..4FC..TBO..IV;RN55..HLF..(EFI,TBO)..CBU;RN55..XTR..5F..(EFI,TBO)..IV;RN55..RCB..(4FC,5F)..EFI..IV;LN56,RN50,75..MTM..(DSL,EFI,TD)198308-198608

LWR,W/TILT STEERING

main45287-35180-02iVZN6#198711-198903

LWR,W/TILT STEERING, RED,RED,TRIM3#

sub45287-35180

main45287-35180-02iRN55..XTR198608-198903

LWR,W/TILT STEERING,RED,RED,TRIM3#

sub45287-35180

main45287-35180-03iRN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO)198608-198903

LWR,W/TILT STEERING,GRAY,GRAY,TRIM1#

sub45287-35180

main45287-35180-03iRN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO)198608-198808

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#

sub45287-35180

main45287-35180-03iVZN6#198711-198903

LWR,W/TILT STEERING, GRAY,GRAY,TRIM1#

sub45287-35180

main45287-35180-04iRN55..W..10T..USA198608-198903

LWR,W/TILT STEERING,BLUE,BLUE,TRIM8#

sub45287-35180

main45287-35180-04iRN55..W..10T..USA198608-198808

UPR,W/TILT STEERING,BLUE,BLUE,TRIM8#

sub45287-35180

main45287-35180-04iVZN6#198711-198903

LWR,W/TILT STEERING, BLUE,BLUE,TRIM8#

sub45287-35180

main45287-35180-05iRN55,75..(4F,4FC,5F)..(HLF,HVY)..(EFI,TBO)198608-198903

LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

sub45287-35180

main45287-35180-05iVZN6#198711-198903

LWR,W/TILT STEERING, BEIGE,BEIGE,TRIM4#

sub45287-35180

main45287-35190iRN5#,7#..4HC198508-198608

LWR

main45287-35190-03iRN5#,7#..4HC198608-198808

LWR,GRAY,GRAY,TRIM1#

sub45287-35190

main45287-35190-04iRN5#,7#..4HC198608-198808

LWR,BLUE,BLUE,TRIM8#

sub45287-35190

main45287-35190-05iRN5#,7#..4HC198608-198808

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35190

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-35030iLN65,RN6#..DLX,SR5198308-198501

W/TILT STEERING

sub45082-35031

main45082-35031iRN55..W..10T..USA198501-198808

W/TILT STEERING

main45082-35040iLN6#,RN6#..DLX,SDT,SR5,SRT198501-198903

W/TILT STEERING

main45807-35070iLN66,RN66;RN61..SR5..HLF;RN61..DLX,SDT,STD198308-198903

9010108070

main90101-08070

9011908139

main90119-08139

9011910291

main90119-10291

9016450048

main90164-50048

9017008008

main90170-08008

9098007195

main90980-07195

9161160616

main91611-60616

9161160816

main91611-60816

9165660620

main91656-60620

9331514012

main93315-14012

9451200800

main94512-00800
