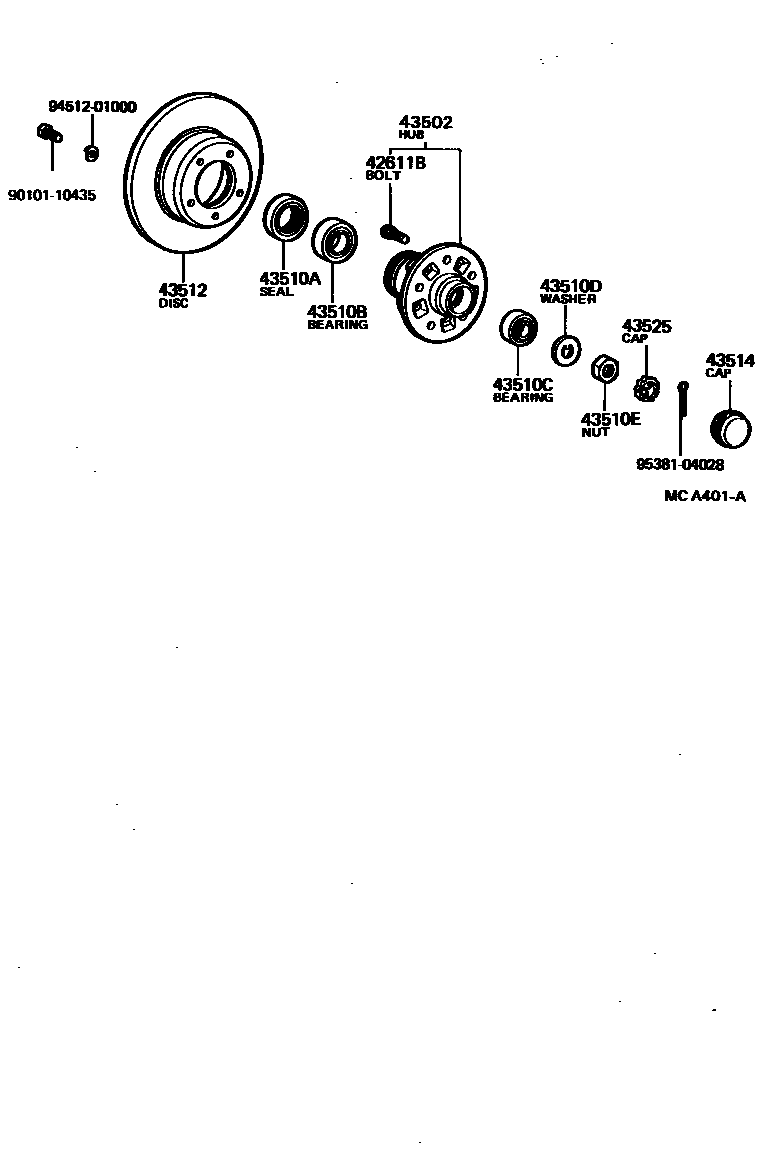

FRONT AXLE HUB

0001 1 0002 1 0003 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iLN5#,RN5#,7#198308-198808

sub90942-02047

main90942-02044iLN65,RN6#198308-198411

sub90942-02053

main90942-02049iLN66,RN6#,VZN6#198508-198903

main90942-02053iLN65,RN6#198411-198508

main90942-02058iRN55,75..WT198608-198808

sub90942-02112

43502HUB SUB-ASSY, FRONT AXLE

main43502-35020iLN5#,RN5#,7#198308-198808

sub43502-35090

main43502-35040iRN55,75..WT198608-198808

main43502-60020iLN65,RN6#198308-198508

sub43502-39095

main43511-35100iRN61,VZN61198808-198903

sub43511-35905

main43511-35904iLN66,RN6#,VZN6#198508-198808

sub43511-35905

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iLN5#,RN5#,7#198308-198808

main90311-62001iLN65,RN6#198308-198508

main90311-66001iLN66,RN6#,VZN6#198508-198903

sub90311-66003

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iLN56,RN5#,7#198512-198808

main90368-34039iLN5#,RN5#,7#198308-198512

sub90368-34001

main90368-49084iLN6#,RN6#,VZN6#198308-198903

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iLN56,RN5#,7#198603-198808

main90368-21065iLN5#,RN5#,7#198308-198603

sub90368-21001

main90368-45087iLN6#,RN6#,VZN6#198308-198903

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLN5#,RN5#,7#198308-198808

main90214-42030iLN6#,RN6#,VZN6#198308-198903

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLN5#,RN5#,7#198308-198808

43512DISC, FRONT

main43512-26040iRN55,75..10T,HVY198408-198808

sub43512-26070

main43512-35070iLN65,RN6#198308-198508

sub43512-60060

main43512-35080iLN5#,RN5#..HLF198308-198505

main43512-35081iLN5#,RN5#,70..HLF198505-198808

main43512-35110iLN66,RN6#,VZN6#198508-198808

sub43512-35190

main43512-35130iRN55,75..WT198608-198808

main43512-35190iRN61,VZN61198808-198903

43514CAP, FRONT HUB GREASE

main43514-35010iLN5#,RN5#,7#198308-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLN5#,RN5#,7#198308-198808

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

13 parts on this diagram · 3 diagrams in section
