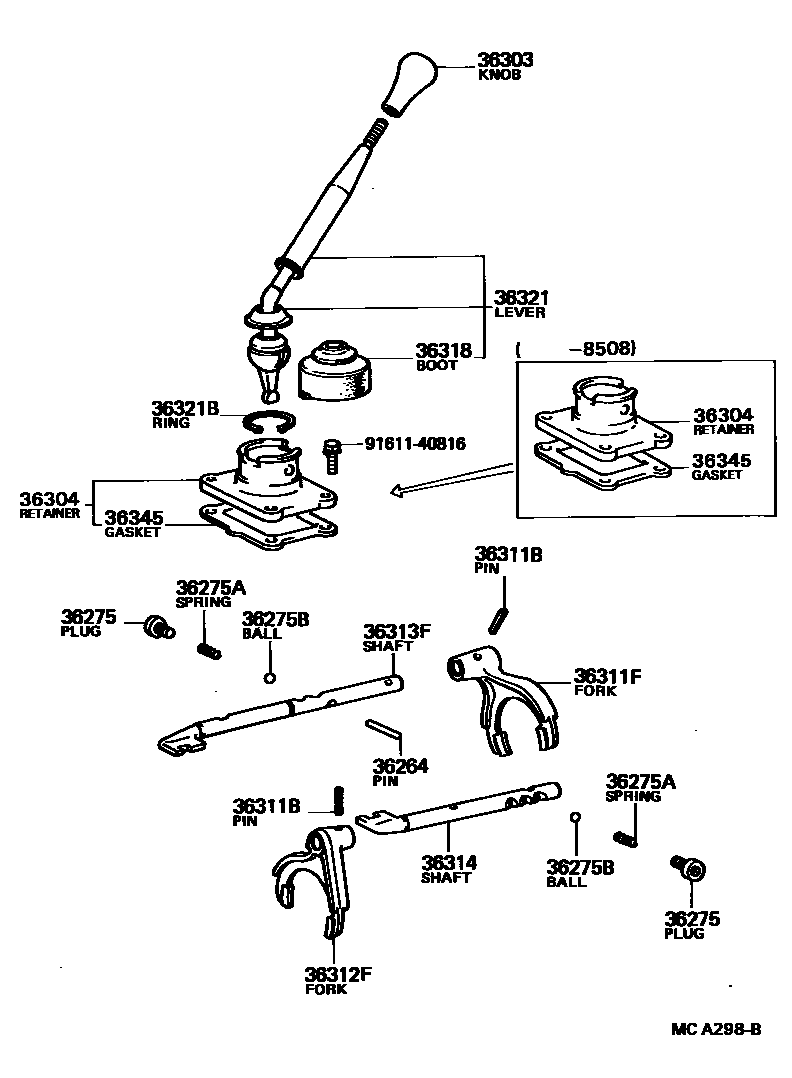

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06005iLN6#,RN6#..5F198308-198903

L=30.8,OD=6

main90250-10020iVZN6#..R198711-198903

L=25.7,OD=9.53

36275PLUG, SHIFT DETENT BALL SPRING

main90341-10064iLN6#,RN6#..5F198308-198903

main90341-12014iVZN6#..R198711-198903

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-13001iLN6#,RN6#..5F198308-198903

L=16.5

main90501-14111iVZN6#..R198711-198807

sub90501-16116

main90501-16116iVZN6#..R198807-198903

L=23

36275BBALL, SHIFT DETENT

main90360-08009iLN6#,RN6#..5F198308-198903

OD=7.94,STEEL

main90360-10003iVZN6#..R198711-198903

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35020iLN6#,RN6#..5F198308-198608

sub36303-35030

main36303-35020-02iRN6#..5F..(DLX,SR5,SRT)..(EFI,TBO)198608-198708

RED,MAROON,TRIM3#

sub36303-35020

sub36303-35030

main36303-35020-03iLN66,RN6#..5F198608-198708

GRAY,GRAY,TRIM1#

sub36303-35020

sub36303-35030

main36303-35020-04iLN66,RN6#..5F..HLF198608-198708

BLUE,BLUE,TRIM8#

sub36303-35020

sub36303-35030

main36303-35020-05iLN66,RN6#..5F198608-198708

BEIGE,BEIGE,TRIM4#

sub36303-35020

sub36303-35030

main36303-35030-02iRN6#198708-198903

RED,RED,TRIM3#

sub36303-35030

main36303-35030-03iRN6#198708-198903

GRAY,GRAY,TRIM1#

sub36303-35030

main36303-35030-04iRN6#198708-198903

BLUE,BLUE,TRIM8#

sub36303-35030

main36303-35030-05iRN6#198708-198903

BEIGE,BEIGE,TRIM4#

sub36303-35030

main36303-35040-01iVZN6#..R198711-198903

BLACK,BLACK

sub36303-35070

sub36303-35040

main36303-35040-02iVZN6#..R198711-198903

RED,RED,TRIM3#

sub36303-35070

sub36303-35040

main36303-35040-03iVZN6#..R198711-198903

GRAY,GRAY,TRIM1#

sub36303-35070

sub36303-35040

main36303-35040-04iVZN6#..R198711-198903

BLUE,BLUE,TRIM8#

sub36303-35070

sub36303-35040

main36303-35040-05iVZN6#..R198711-198903

BEIGE,BEIGE,TRIM4#

sub36303-35070

sub36303-35040

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35010iLN6#,RN6#..5F..(EFI,TD)198408-198903

main36304-35021iLN65,RN6#..G198308-198508

sub36304-35030

main36304-35030iRN6#..CBR,TBO198508-198808

sub36304-35031

main36304-35040iVZN6#..R198711-198903

sub36304-35H01

sub36304-35H21

sub36304-35H27

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001iLN66,RN6#,VZN6#..5F198308-198903

L=22

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35010iLN6#,RN6#..5F198308-198903

main36311-35020iVZN6#..R198711-198903

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35010iLN6#,RN6#..5F..(EFI,TD)198408-198903

main36312-35020iLN65,RN6#..CBR,DSL,TBO198308-198808

main36312-35030iVZN6#..R198711-198903

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35020iLN65,RN6#..CBR,DSL,TBO198308-198808

main36313-35030iLN6#,RN6#..5F..(EFI,TD)198408-198903

main36313-35040iVZN6#..R198711-198903

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35020iLN65,RN6#..CBR,DSL,TBO198308-198808

main36314-35030iLN6#,RN6#..5F..(EFI,TD)198408-198903

main36314-35060iVZN6#..R198711-198903

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-20060iLN6#,RN6#..5F198308-198903

main33555-35090iVZN6#..R198711-198903

36321LEVER, TRANSFER FRONT DRIVE SHIFT

main36360-35030iLN65,RN6#..G,R198308-198808

sub36360-35031

sub36304-35032

main36360-35040iLN6#,RN6#..5F..(EFI,TD)198408-198903

sub36360-35041

sub36304-35010

main36360-35060iVZN6#..R198711-198903

sub36360-35061

sub36304-35010

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iLN6#,RN6#,VZN6#..5F198308-198903

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36157-35010iLN65,RN6#..G198308-198508

main36345-35010iLN6#,RN6#..5F..(EFI,TD)198408-198903

main36345-35020iRN6#..CBR,TBO198508-198808

sub36345-35021

9161140816

main91611-40816

16 parts on this diagram · 3 diagrams in section
