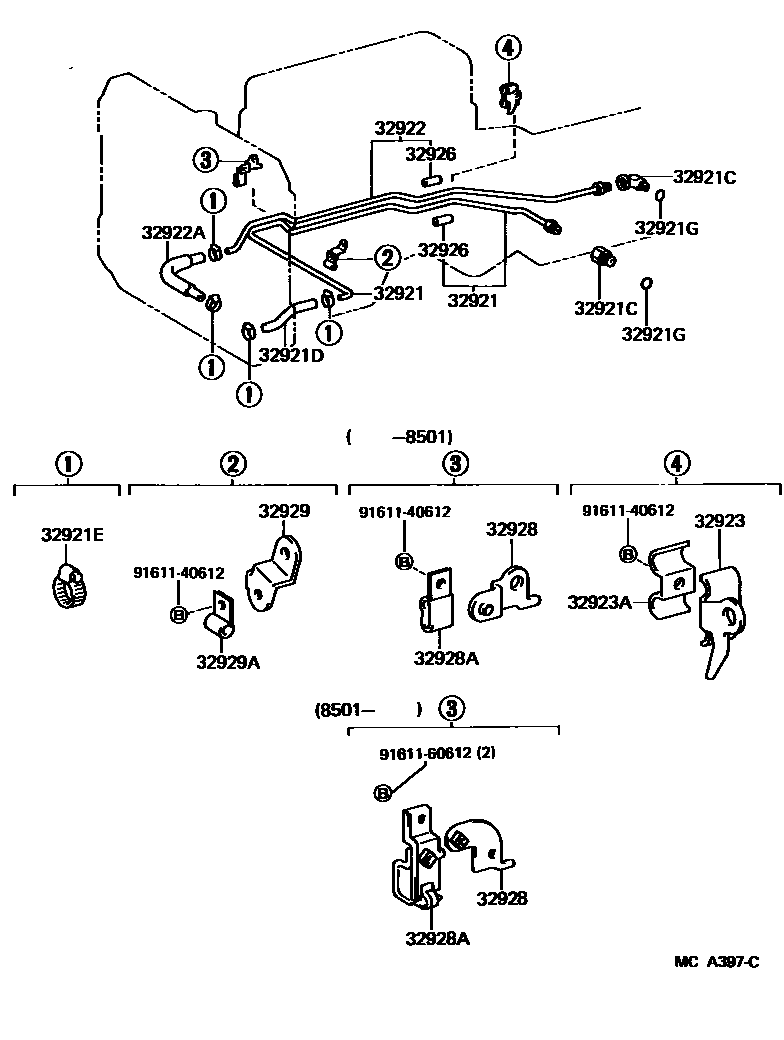

OIL COOLER & TUBE (ATM)

0001 1 0003 1W/OIL COOLER 0004 1 0006 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-35080iRN55..4FC198308-198408

main32921-35090iRN5#,70..ATM..(10T,HLF)..(CBR,EFI)198408-198808

main32921-35100iRN6#..4FC198501-198708

main32921-35101iRN6#..4FC198708-198903

main32921-35120iRN55,75..ATM..HVY198512-198808

main32921-35130iVZN6#..4FC198711-198903

main32921-35170iVZN61..4FC..CND198808-198903

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iRN5#,70..ATM..(10T,HLF)..(CBR,EFI)198308-198808

FR

main90404-16021iRN55,75..ATM..HVY198512-198808

FR

main90407-14003iRN5#,7#..ATM..(CBR,EFI)198308-198808

RR

main90407-16008iRN6#..4FC198501-198903

OUTLET

main90407-16010iRN55,75..ATM..HVY198512-198808

RR

main90407-16012iRN6#,VZN6#..4FC198501-198903

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-35020iVZN6#..4FC198711-198903

main32941-35040iVZN61..4FC..CND198808-198903

sub32941-35041

main32942-22030iRN55..4FC198308-198408

main90445-14078iRN5#,7#..ATM..(CBR,EFI)198408-198808

main90445-15021iRN61..4FC198808-198903

main90445-16027iRN55..4FC..TBO198501-198808

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub90460-20004

main90460-18002iRN55..4FC..TBO198501-198903

main90467-13039iRN61..4FC198808-198903

sub96135-51300

main90467-16013iVZN61..4FC..CND198808-198903

sub90467-16022

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iRN5#,7#..ATM..(CBR,EFI)198308-198808

main90301-11006iRN6#,VZN6#..4FC198501-198903

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-35090iRN55..4FC198308-198408

main32922-35100iRN5#,70..ATM..(10T,HLF)..(CBR,EFI)198408-198808

main32922-35110iRN6#..4FC198501-198602

main32922-35111iRN6#..4FC198602-198708

main32922-35112iRN6#..4FC198708-198903

main32922-35120iVZN6#..4FC198711-198903

main32922-35140iRN55,75..ATM..HVY198512-198808

main32922-35180iVZN61..4FC..SR5..USA198808-198903

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35010iVZN61..4FC..SR5..USA198808-198903

sub32942-35011

main90445-14058iRN5#,7#..ATM..(CBR,EFI)198408-198808

main90445-14259iRN55..4FC198308-198408

main90445-15018iRN61..4FC198808-198903

sub90445-15015

main90445-16017iRN55..4FC..TBO198508-198602

sub90445-16030

main90445-16019iRN55..4FC..TBO198602-198808

sub90445-16022

main90445-16021iRN55..TBO198501-198508

sub90445-16030

main90445-16023iVZN61..4FC..DLX198711-198903

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-22020iRN5#..4FC198308-198501

main32923-30110iVZN6#..4FC198711-198903

main32923-35010iRN5#,6#,7#..ATM198501-198903

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12044iRN55,75..ATM..HVY198501-198903

main90462-12085iRN5#,70..ATM..(10T,HLF)..(CBR,EFI)198308-198808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iRN5#,70..ATM..(10T,HLF)198501-198808

L=35,ID=8

main32926-30011iRN5#,70..ATM..(10T,HLF)..(CBR,EFI)198308-198711

L=25,ID=8

main32926-30020iRN55..4FC..TBO198501-198903

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-35010iRN5#..4FC198308-198501

main32928-35031iRN5#,6#,7#..ATM198501-198903

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32909-35010iRN5#,7#..ATM..(CBR,EFI)198501-198808

main32909-35020iRN55,75..ATM..HVY198501-198808

main32909-35030iRN61..4FC198808-198903

main96222-20708iRN5#..4FC198308-198501

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-20070iRN5#,6#,7#..ATM198308-198903

main32929-24040iRN55,75..ATM..HVY198605-198808

W/OIL COOLER

sub32929-35050

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-06033iRN5#,7#..ATM..(CBR,EFI)198308-198808

main90461-06188iRN6#..4FC198501-198903

9161140612

main91611-40612

9161160612

main91611-60612

16 parts on this diagram · 4 diagrams in section
