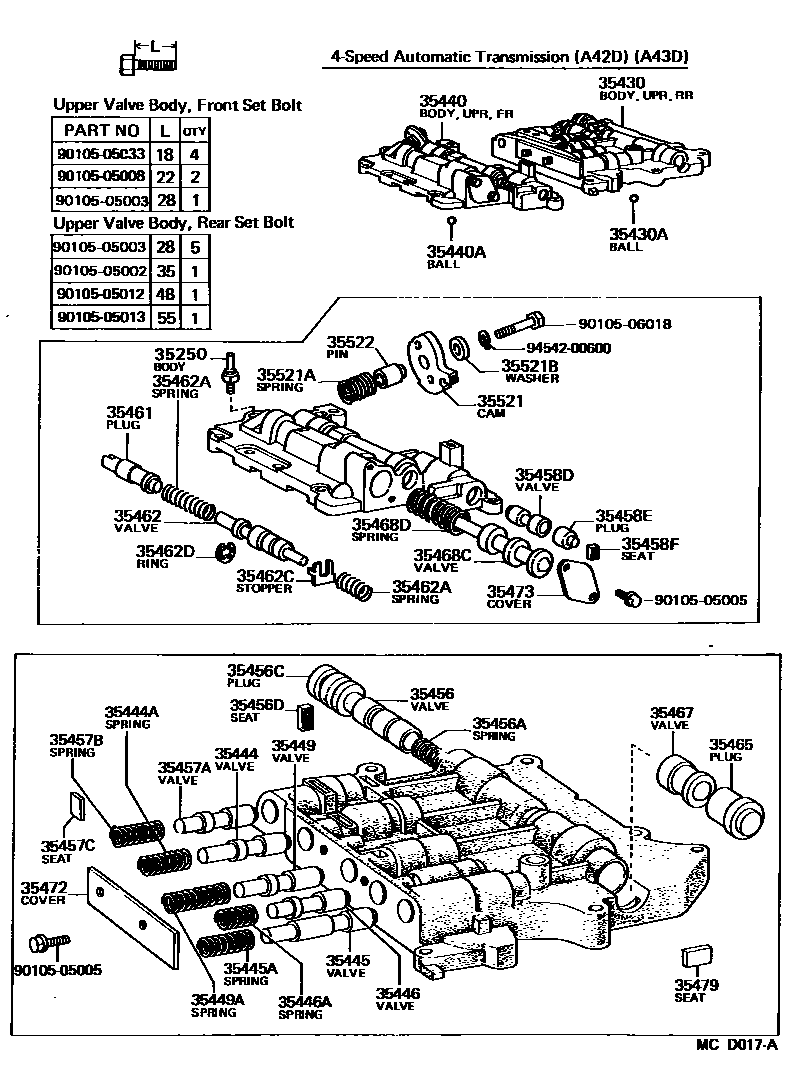

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0010 1 0012 1

35250BODY ASSY, CHECK BALL

main35250-30010iRN5#,7#..ATM..(CBR,EFI)198409-198808

35430BODY ASSY, REAR UPPER VALVE

main35430-30070iRN5#,7#..ATM..(CBR,EFI)198308-198808

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

OD=5.535,RUBBER,OD=5.56,GUM

sub35495-22020

main90360-06023iRN5#,7#..ATM..(CBR,EFI)198308-198808

0D=5.56,OD=5.56,STEEL

35440BODY ASSY, FRONT UPPER VALVE

main35440-30050iRN5#..4FC198308-198409

sub35440-30051

main35440-30051iRN5#,7#..ATM..(CBR,EFI)198409-198808

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iRN5#,7#..ATM..(CBR,EFI)198308-198804

OD=5.535,RUBBER,OD=5.56,GUM

sub35495-22020

main35495-22020iRN5#,7#..ATM198804-198808

OD=5.535,RUBBER,OD=5.56,GUM

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-11009iRN5#,7#..ATM..(CBR,EFI)198308-198808

35445VALVE, LOW MODULATOR

main35445-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iRN5#,7#..ATM..(CBR,EFI)198308-198808

35446VALVE, GOVERNOR MODULATOR

main35446-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07688iRN5#,7#..ATM..(CBR,EFI)198308-198808

35449VALVE, SEQUENCE

main35447-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

UPR UALVE

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12726iRN5#,7#..ATM..(CBR,EFI)198308-198808

35456VALVE, 2-3 SHIFT

main35456-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main35456-30060iRN6#,VZN6#..4FC198501-198903

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08724iRN5#,7#..ATM..(CBR,EFI)198308-198808

main90501-09053iRN6#,VZN6#..4FC198501-198903

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main90339-03004iRN55..4FC..TBO198501-198608

main90339-05014iRN6#,VZN6#..4FC198608-198903

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iRN5#,7#..ATM..(CBR,EFI)198308-198808

35457AVALVE, DETENT REGULATOR

main35457-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09007iRN5#,7#..ATM..(CBR,EFI)198308-198808

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iRN5#,7#..ATM..(CBR,EFI)198308-198808

35458DVALVE, CUT BACK

main35458-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main35458-30030iRN6#,VZN6#..4FC198501-198903

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main90339-04002iRN55..4FC..TBO198501-198903

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35461PLUG, DOWN SHIFT

main35408-30010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main35408-30040iRN55..4FC..TBO198501-198903

35462VALVE, THROTTLE

main35462-22011iRN5#,7#..ATM..(CBR,EFI)198308-198808

main35462-30020iRN55..4FC..TBO198501-198903

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07051iRN6#,VZN6#..4FC198501-198903

L=20.58,L=20.58

main90501-07051iRN55..4FC..TBO198501-198608

L=20.58

main90501-07067iRN6#,VZN6#198708-198903

L=23.28,L=23.28

main90501-07680iRN5#,7#..ATM..(CBR,EFI)198308-198808

L=19.24,SECONDARY

main90501-12011iRN5#,7#..ATM..(CBR,EFI)198308-198808

L=39.71,PRIMARY

35462CSTOPPER, VALVE VIBRATING

main35422-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023iRN5#,6#,7#,VZN6#..ATM198308-198903

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35468CVALVE, SECONDARY REGULATOR

main35468-12020iRN6#,VZN6#..4FC198501-198903

main35468-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-15007iRN55..4FC..TBO198501-198903

main90501-19001iRN5#,7#..ATM..(CBR,EFI)198308-198808

35472COVER, VALVE BODY, NO.2

main35472-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35521CAM, THROTTLE VALVE

main35521-30010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main35521-30030iRN55..4FC..TBO198501-198608

main35521-35010iRN6#,VZN6#..4FC198501-198903

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-11007iRN55..4FC..TBO198501-198903

main90508-12331iRN5#,7#..ATM..(CBR,EFI)198308-198808

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iRN5#,6#,7#,VZN6#..ATM198308-198903

35522PIN, THROTTLE VALVE CAM

main35522-22010iRN5#,6#,7#,VZN6#..ATM198308-198903

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505008

main90105-05008

9010505012

main90105-05012

9010505013

main90105-05013

9010505033

main90105-05033

9010506018

main90105-06018

9454200600

main94542-00600

48 parts on this diagram · 9 diagrams in section
