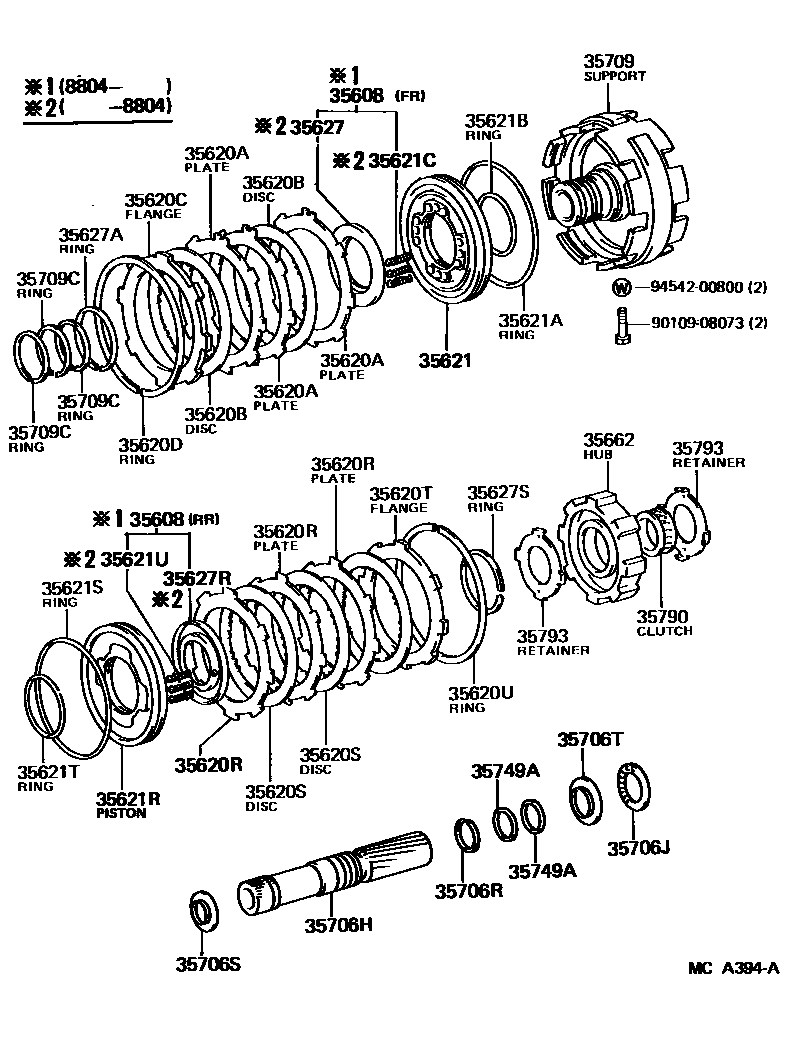

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1 0002 1

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iRN5#,7#..ATM198804-198903

FR

main35608-30010iRN55..4FC..TBO198501-198903

main35608-30020iRN5#,7#..ATM198804-198903

RR

35620APLATE, CLUTCH (FOR BRAKE)

main35634-22060iRN5#,7#..ATM..(CBR,EFI)198508-198808

main35634-22090iRN5#..4FC..(CBR,EFI)198308-198508

sub35634-22060

35620BDISC, CLUTCH (FOR BRAKE)

main35677-22050iRN5#..4FC..(CBR,EFI)198308-198508

sub35677-30030

main35677-30030iRN5#,7#..ATM..(CBR,EFI)198508-198601

sub35677-30160

main35677-30100iRN5#,7#..ATM..(CBR,EFI)198601-198808

35620CFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub35675-22140

35620DRING (FOR BRAKE)

main90521-99139iRN5#,7#..ATM..(CBR,EFI)198308-198808

35620RPLATE, CLUTCH (FOR REAR BRAKE)

main35648-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

35620SDISC, CLUTCH (FOR REAR BRAKE)

main35677-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

35620TFLANGE, CLUTCH (FOR REAR BRAKE)

main34625-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub35676-22030

35620URING (FOR REAR BRAKE)

main90521-99139iRN5#,7#..ATM..(CBR,EFI)198308-198808

35621PISTON, BRAKE, NO.1

main35621-30010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99007iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub90301-99107

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-57188iRN5#,7#..ATM..(CBR,EFI)198308-198808

35621CSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iRN5#,7#..ATM..(CBR,EFI)198308-198808

35621RPISTON, BRAKE (FOR REAR BRAKE)

main35624-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99192iRN5#,7#..ATM..(CBR,EFI)198308-198808

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-57188iRN5#,7#..ATM..(CBR,EFI)198308-198808

35621USPRING (FOR REAR BRAKE PISTON RETURN)

main90501-10671iRN5#,7#..ATM..(CBR,EFI)198308-198808

35627SEAT, BRAKE RETURN SPRING

main35627-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iRN5#,7#..ATM..(CBR,EFI)198308-198808

35627RSEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)

main35627-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iRN5#,7#..ATM..(CBR,EFI)198308-198808

35662HUB, BRAKE

main35662-30010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30040iRN5#,7#..ATM..(CBR,EFI)198308-198808

main35706-30060iRN55..4FC..TBO198501-198601

sub35706-30061

main35706-30061iRN55..4FC..TBO198601-198903

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23012iRN5#,7#..ATM..(CBR,EFI)198308-198808

main90374-30006iRN55..4FC..TBO198501-198903

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iRN5#,7#..ATM..(CBR,EFI)198308-198808

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iRN5#,7#..ATM..(CBR,EFI)198308-198808

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35709SUPPORT SUB-ASSY, CENTER

main35709-30041iRN5#,7#..ATM..(CBR,EFI)198308-198808

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010iRN5#,7#..ATM..(CBR,EFI)198308-198808

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010iRN55..4FC..TBO198308-198903

35790CLUTCH ASSY, 1 WAY

main35790-30030iRN6#,VZN6#..4FC198501-198903

sub35790-50010

main35791-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

35793RETAINER, 1 WAY CLUTCH

main35793-22011iRN5#,7#..ATM..(CBR,EFI)198308-198808

9010908073

main90109-08073

9454200800

main94542-00800

34 parts on this diagram · 2 diagrams in section
