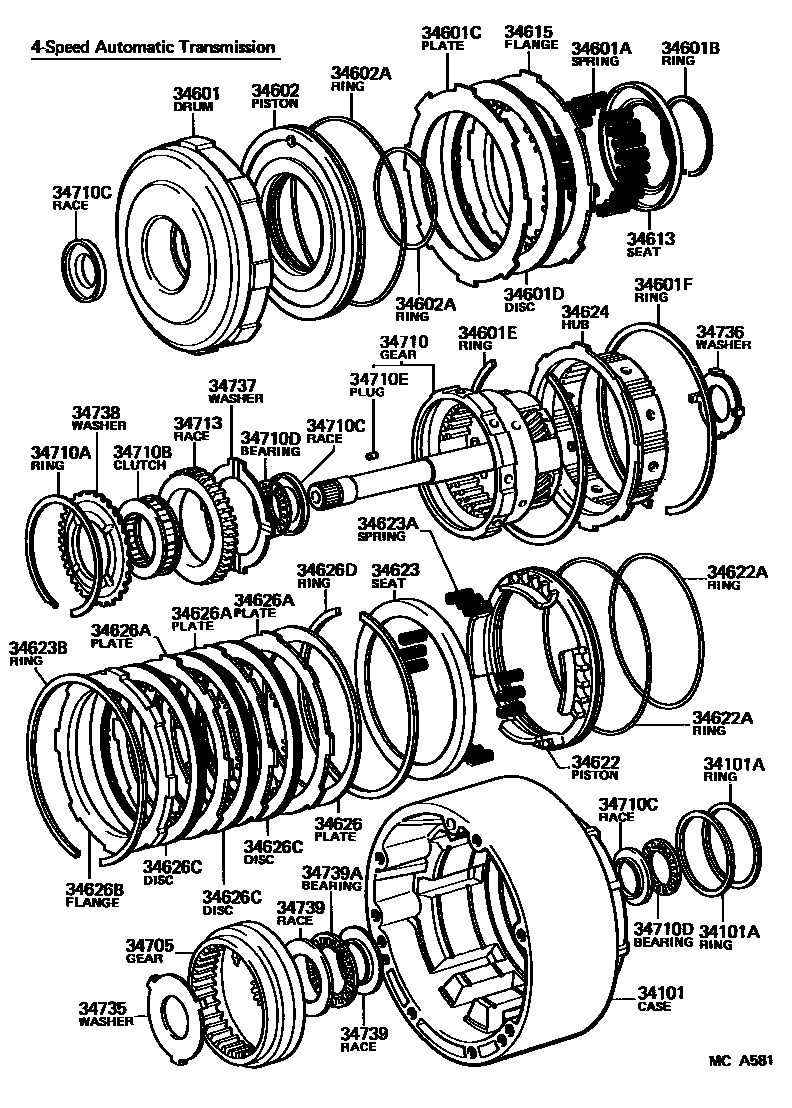

OVERDRIVE GEAR (ATM)

0001 1 0002 1

34101CASE SUB-ASSY, OVERDRIVE

main34101-30062iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub34101-22020

sub35617-43010

34101ARING, OIL SEAL (FOR OVERDRIVE CASE)

main35617-16010iRN5#,7#..ATM..(CBR,EFI)198308-198808

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30022iRN5#,7#..ATM..(CBR,EFI)198308-198808

main34601-30030iRN55..4FC..TBO198501-198903

main34601-35010iRN6#..4FC198501-198903

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023iRN5#,7#..ATM..(CBR,EFI)198308-198808

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iRN5#,7#..ATM..(CBR,EFI)198308-198808

34601CPLATE, CLUTCH (FOR OVERDRIVE)

main35634-30070iRN5#,7#..ATM..(CBR,EFI)198308-198808

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30030iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub35677-30160

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iRN5#,7#..ATM..(CBR,EFI)198308-198808

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iRN5#,7#..ATM..(CBR,EFI)198308-198808

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30011iRN5#,7#..ATM..(CBR,EFI)198308-198808

main34602-30020iRN55..4FC..TBO198501-198903

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iRN5#,7#..ATM..(CBR,EFI)198308-198808

OD=56.57-57.67

main90301-65005iRN55..4FC..TBO198501-198903

INNER,ID=65

sub90301-65006

main90301-99016iRN5#,7#..ATM..(CBR,EFI)198308-198808

OD=122.12-122.88

main90301-99036iRN6#,VZN6#..4FC198501-198903

OUTER,ID=112.5

sub90301-99086

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iRN5#,7#..ATM..(CBR,EFI)198308-198808

34615FLANGE, OVERDRIVE CLUTCH

main34615-30010iRN5#,7#..ATM..(CBR,EFI)198308-198808

T=4.0

main34615-30020iRN55..4FC..TBO198501-198903

T=3.6,T=3.6

sub34615-50050

main34615-30030iRN55..4FC..TBO198501-198903

T=3.5,T=3.5

sub34615-50040

main34615-30040iRN55..4FC..TBO198501-198903

T=3.4,T=3.4

sub34615-50030

main34615-30050iRN55..4FC..TBO198501-198903

T=3.3,T=3.3

sub34615-22030

main34615-30060iRN6#,VZN6#..4FC198501-198903

T=3.2,T=3.2

sub34615-22020

main34615-30070iRN55..4FC..TBO198501-198903

T=3.1,T=3.1

sub34615-22010

34622PISTON, OVERDRIVE BRAKE

main34622-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub34622-30040

main34622-30030iRN55..4FC..TBO198501-198903

main34622-35010iRN6#..4FC..EFI198501-198903

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iRN5#,7#..ATM..(CBR,EFI)198308-198808

ID=108.45-109.95

sub90301-99103

main90301-99009iRN5#,7#..ATM..(CBR,EFI)198308-198808

ID=123.23-125.23

sub90301-99111

main90301-99035iRN55..4FC..TBO198501-198903

INNER,ID=131.6

sub90301-99087

main90301-99037iRN6#,VZN6#..4FC198501-198903

OUTER,ID=145.6

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671iRN5#,7#..ATM..(CBR,EFI)198308-198808

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iRN5#,7#..ATM..(CBR,EFI)198308-198808

34624HUB, OVERDRIVE BRAKE

main34624-30030iRN5#..4FC198308-198405

sub34624-26010

main34624-32010iRN5#,7#..ATM..(CBR,EFI)198405-198808

sub34624-26010

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iRN5#,7#..ATM..(CBR,EFI)198308-198808

34626APLATE, CLUTCH (FOR OVERDRIVE)

main35634-30080iRN5#,7#..ATM..(CBR,EFI)198308-198808

34626BFLANGE, REAR CLUTCH (FOR OVERDRIVE)

main34625-26010iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub34625-22020

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-30040iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub35677-43010

34626DRING, HOLE SNAP (FOR OVERDRIVE)

main90521-99004iRN5#,7#..ATM..(CBR,EFI)198308-198808

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30020iRN5#,7#..ATM..(CBR,EFI)198308-198608

sub34705-30021

main34705-30021iRN5#,7#..ATM198608-198808

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-30022iRN5#,7#..ATM..(CBR,EFI)198308-198808

main34710-30030iRN6#,VZN6#..4FC198501-198903

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iRN5#,7#..ATM..(CBR,EFI)198308-198808

34710BCLUTCH, 1WAY, NO.1(FOR OVERDRIVE)

main35791-30030iRN5#,7#..ATM..(CBR,EFI)198308-198808

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iRN5#,7#..ATM..(CBR,EFI)198308-198808

CTR

main34739-30041iRN5#,7#..ATM..(CBR,EFI)198308-198808

FR

main35789-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

RR

main35789-30050iRN6#,VZN6#..4FC198501-198903

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iRN5#,7#..ATM..(CBR,EFI)198308-198808

RR

main90374-24001iRN5#,7#..ATM..(CBR,EFI)198308-198808

FR

main90374-25005iRN55..4FC..TBO198501-198903

main90374-28008iRN6#,VZN6#..4FC198501-198903

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001iRN5#,7#..ATM..(CBR,EFI)198308-198808

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

main34713-32010iRN55..4FC..TBO198501-198903

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30010iRN5#,7#..ATM..(CBR,EFI)198308-198608

main34735-30020iRN5#,7#..ATM198608-198808

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iRN5#,7#..ATM..(CBR,EFI)198308-198808

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

main34737-30030iRN55..4FC..TBO198501-198903

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iRN5#,7#..ATM..(CBR,EFI)198308-198808

FR

main35789-22030iRN5#,7#..ATM..(CBR,EFI)198308-198808

RR

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iRN5#,7#..ATM..(CBR,EFI)198308-198808

38 parts on this diagram · 2 diagrams in section
