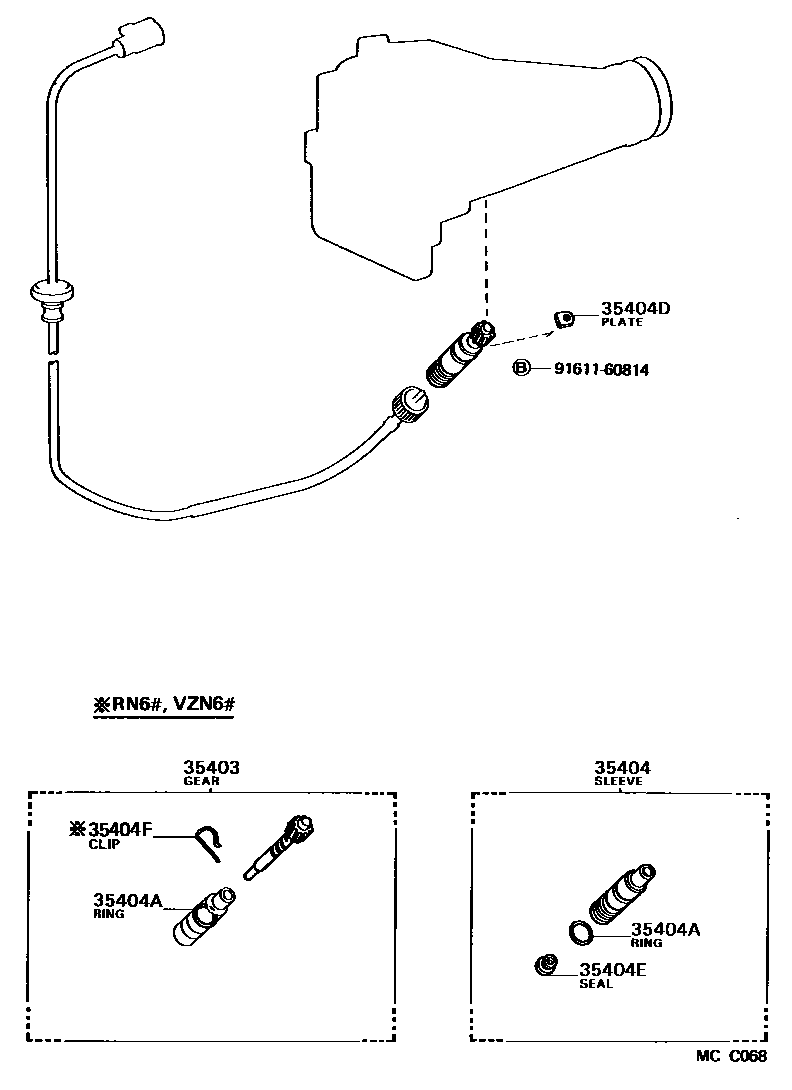

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29065iRN55..ATM..(10T,HVY)198408-198808

N=20

main33403-69016iRN5#..4FC..STD198408-198808

N=17,W/7.00-14 TIRE

main33403-69016iRN55..4FC..(SR5,STD)198308-198808

N=17

main33403-69026iRN75..DLX198508-198808

main33403-69065iRN5#,70..ATM..CBR198308-198708

W/ER78 OR P195/75R14 TIRE,N=18

main33403-69075iRN55..4FC..TBO198501-198608

N=16

main33403-69185iRN5#,70..4HC..HLF198708-198808

N=17,W/7.00-14 TIRE

main33482-39025iRN6#..4FC..EFI198501-198903

N=19

main33482-39135iVZN6#..4FC198508-198903

N=18

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iRN5#,7#..ATM198308-198808

main33404-35010iRN6#,VZN6#..4FC198501-198903

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iRN5#,6#,7#..ATM198608-198903

main90301-18018iRN5#,6#,7#..ATM198308-198903

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iRN5#,6#,7#,VZN6#..ATM198308-198903

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iRN5#,6#,7#,VZN6#..ATM198308-198903

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iRN6#,VZN6#..4FC198501-198903

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
