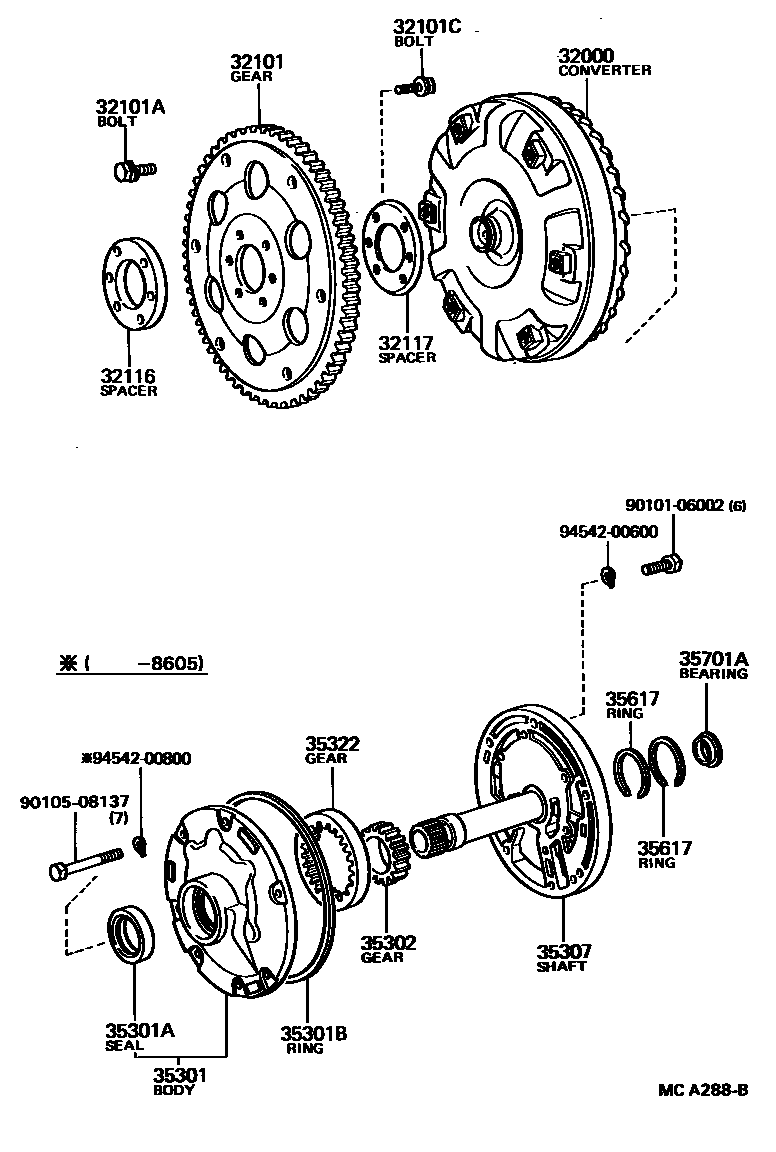

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-30100iRN5#..4FC198308-198407

sub32000-30101

main32000-30101iRN5#,7#..ATM..(CBR,EFI)198407-198808

main32000-35020iRN6#..4FC198501-198708

main32000-35030iRN6#..4FC..TBO198508-198708

main32000-35050iRN6#..4FC198708-198903

main32000-35060iVZN6#..4FC198711-198903

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20050iRN5#,6#,7#..ATM198308-198708

main32101-35010iRN5#,6#,7#..ATM198708-198903

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iRN5#,6#..4FC198308-198505

*8-1.25PX12-8.4,GREEN

main90109-08113iRN5#,61,66,7#..ATM198505-198708

*8-1.25PX12-8.4,GREEN

main90109-09010iRN5#,6#,7#..ATM198708-198903

main90119-08498iRN5#,61,66,7#..ATM198505-198708

*8-1.25PX12-8,BLACK

main90119-09009iVZN6#..4FC198711-198903

*9-1.25PX12.8-8.8,BLACK

main90119-09009iRN5#,6#,7#..ATM198708-198903

*9-1.25PX12.8-8.8

main90119-09010iVZN6#..4FC198711-198903

*9-1.25PX12.8-9,GREEN

main91611-60812iRN5#,6#..4FC198308-198505

*8-1.25PX12-7,YELLON

sub91611-B0812

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10095iRN5#,6#,7#..ATM198708-198903

*10-1.25PX18-13

sub90105-10048

main90913-01011iRN5#,6#,7#..ATM198308-198708

*17-1.25PX26-18

32116SPACER, DRIVE PLATE, FRONT

main32116-20011iRN5#,6#,7#..ATM198308-198708

main32116-32020iRN5#,6#,7#..ATM198708-198903

32117SPACER, DRIVE PLATE, REAR

main32117-20021iRN5#,6#,7#..ATM198308-198708

main32117-32020iRN5#,6#,7#..ATM198708-198903

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30030iRN5#,7#..ATM..(CBR,EFI)198308-198808

main35301-30040iRN55..4FC..TBO198501-198608

main35301-35010iRN6#,VZN6#..4FC198501-198903

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iRN5#,7#..ATM..(CBR,EFI)198312-198808

main90311-38029iRN55..4FC..TBO198501-198903

sub90311-38020

main90311-38129iRN55..4FC198308-198312

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main90301-99033iRN55..4FC..TBO198501-198903

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35370-30022iRN5#..4FC198308-198412

sub35370-30023

main35370-30023iRN5#,7#..ATM..(CBR,EFI)198412-198808

main35370-30031iRN6#,VZN6#..4FC198501-198903

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iRN5#,7#..ATM..(CBR,EFI)198308-198808

T=15.286-15.235

sub35322-22090

main35322-32020iRN55..4FC..TBO198501-198608

T=9.465-9.440

sub35322-32050

main35322-35010iRN6#,VZN6#..4FC198501-198903

T=10.690-10.740

sub35322-12030

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iRN5#,7#..ATM..(CBR,EFI)198308-198808

main35617-30020iRN55..4FC..TBO198501-198808

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iRN5#,7#..ATM..(CBR,EFI)198308-198808

9010106002

main90101-06002

9010508137

main90105-08137

9454200600

main94542-00600

9454200800

main94542-00800
