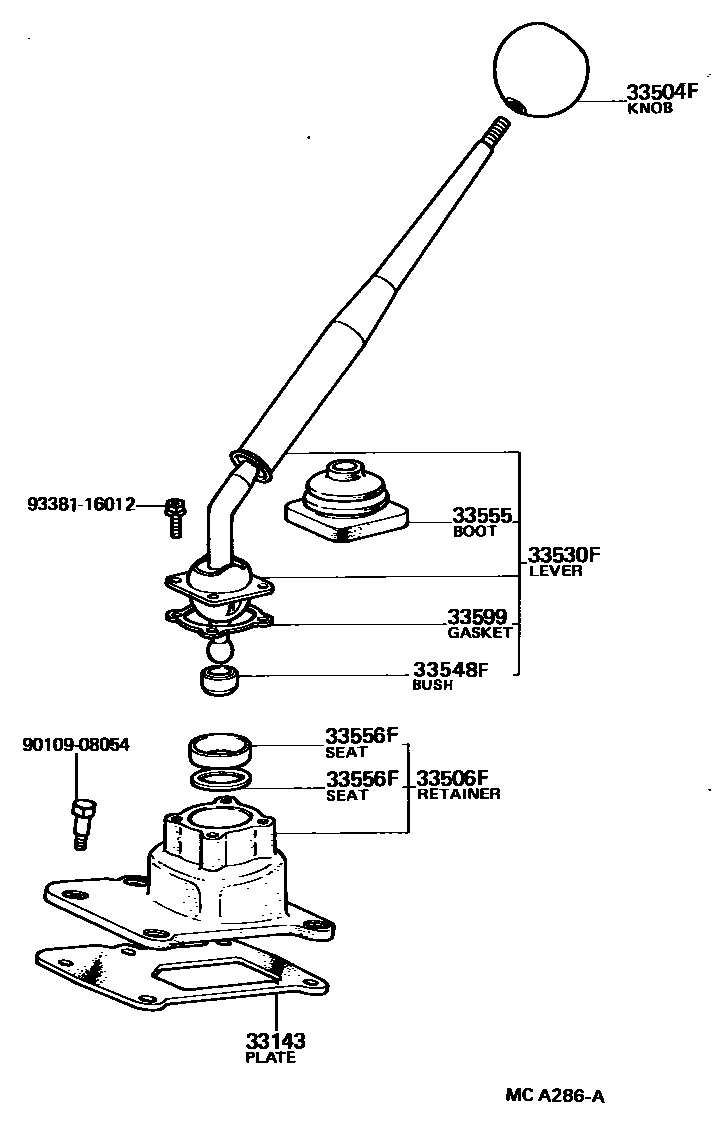

SHIFT LEVER & RETAINER

0001 1 0003 1 0005 1 0006 1 0008 1 0010 1 0011 1 0013 1 0014 1 0015 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-20031iRN5#..MTM198308-198508

main33143-22020iRN50..4F;LN56,RN5#..MTM..(EFI,TD)198408-198808

main33143-35020iLN6#,RN6#..5F..(EFI,TD)198408-198903

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iRN5#,6#..5F..SR5198308-198608

BLACK

sub33504-20052

sub33504-14050

main33504-20052-02iRN55,6#,VZN6#..5F..SR5198608-198903

RED,RED/MAROON,TRIM3#

sub33504-20052

sub33504-14050

main33504-20052-02iRN55,66,70,VZN66..5F..DLX..IV198708-198808

URETHANE,RED,RED/MAROON,TRIM3#

sub33504-20052

sub33504-14050

main33504-20052-03iRN55,66,70,VZN66..5F..DLX..IV198708-198808

URETHANE,GRAY,GRAY,TRIM1#

sub33504-20052

sub33504-14050

main33504-20052-03iRN55,6#,VZN6#..5F..SR5198608-198903

GRAY,GRAY,TRIM1#

sub33504-20052

sub33504-14050

main33504-20052-04iRN55,66,70,VZN66..5F..DLX..IV198708-198808

URETHANE,BLUE,BLUE,TRIM8#

sub33504-20052

sub33504-14050

main33504-20052-04iRN55,6#,VZN6#..5F..SR5198608-198903

BLUE,BLUE,TRIM8#

sub33504-20052

sub33504-14050

main33504-20052-05iRN55,6#,VZN6#..5F..SR5198608-198903

BEIGE,BEIGE,TRIM4#

sub33504-20052

sub33504-14050

main33504-20052-05iRN55,66,70,VZN66..5F..DLX..IV198708-198808

URETHANE,BEIGE,BEIGE,TRIM4#

sub33504-20052

sub33504-14050

main33504-22101-01iLN51,RN5#,75..4F198308-198808

BLACK

sub33504-14040

sub33504-22101

main33504-22111-01iLN56,6#,RN5#,6#,70..5F..(DLX,SDT,STD)198308-198903

BLACK

sub33504-14050

sub33504-22111

main33504-22111-01iVZN6#..R..(DLX,STD)198711-198903

BLACK,BLACK

sub33504-14050

sub33504-22111

main33504-35020-01iRN55..R198508-198608

BLACK

sub33504-22140

main33504-35020-02iRN55,6#..5F..SR5198608-198903

RED,MAROON,TRIM3#

sub33504-22140

main33504-35020-02iRN55,6#,VZN6#..5F..SR5198708-198903

URETHANE W/LARGE PADDING,RED,MAROON,TRIM3#

sub33504-22140

main33504-35020-03iRN55,6#..5F..SR5198608-198903

GRAY,GRAY,TRIM1#

sub33504-22140

main33504-35020-03iRN55,6#,VZN6#..5F..SR5198708-198903

URETHANE W/LARGE PADDING,GRAY,GRAY,TRIM1#

sub33504-22140

main33504-35020-04iRN55..TBO198608-198808

BLUE,BLUE,TRIM8#

sub33504-22140

main33504-35020-04iRN55,6#,VZN6#..5F..SR5198708-198903

URETHANE W/LARGE PADDING,BLUE,BLUE,TRIM8#

sub33504-22140

main33504-35020-05iRN55,6#,VZN6#..5F..SR5198708-198903

URETHANE W/LARGE PADDING,BEIGE,BEIGE,TRIM4#

sub33504-22140

main33504-35020-05iRN55,6#..5F..SR5198608-198903

BEIGE,BEIGE,TRIM4#

sub33504-22140

main33542-32030-01iRN5#..4FC198308-198608

BLACK

sub33542-32030

main33542-32030-12iRN75..DLX..USA198608-198808

RED,RED,TRIM3#

sub33542-32030

main33542-32030-15iRN55..4FC198608-198808

BEIGE,BEIGE,TRIM4#

sub33542-32030

main33542-32030-23iRN75..DLX..USA198608-198808

GRAY,GRAY,TRIM1#

sub33542-32030

main33542-32030-24iRN75..DLX..USA198608-198808

BLUE,BLUE,TRIM8#

sub33542-32030

main33542-35030iRN6#..4FC198501-198608

main33542-35030-02iRN61..4FC;RN66..4FC..SR5198608-198808

RED,RED,TRIM3#

sub33542-35030

main33542-35030-03iRN6#,VZN6#..4FC198608-198903

GRAY,GRAY,TRIM1#

sub33542-35030

main33542-35030-04iRN66..4FC198608-198808

BLUE,BLUE,TRIM8#

sub33542-35030

main33542-35030-05iRN6#,VZN6#..4FC198608-198903

BEIGE,BEIGE,TRIM4#

sub33542-35030

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-35060iRN50..CND;LN5#,RN5#,70..G198308-198808

main33506-35070iLN65,RN6#..G198308-198808

main33506-35080iRN55..R198508-198808

main33506-35090iRN6#..R198508-198705

sub33506-60030

sub33105-60010

sub90930-03075

main33506-60030iVZN6#..R198705-198903

main33570-14030iRN50..4F;LN56,RN5#..MTM..(EFI,TD)198408-198808

main33570-35010iRN5#..5F..CBR198308-198508

main33570-35020iLN6#,RN6#..5F..(EFI,TD)198408-198903

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33501-35180iRN6#..4FC198501-198903

main33501-35210iVZN6#..4FC198711-198903

main33503-35040iRN5#..4FC198308-198808

main33530-35022iRN5#..5F..CBR198308-198508

main33530-35040iLN65,RN6#..G198308-198508

sub33530-35110

main33530-35050iRN50..CND;LN5#,RN5#,70..G198308-198808

main33530-35070iRN5#,75..MTM..W;RN70..5F..W..USA;RN55,70..5F..CND..CBR198408-198808

main33530-35080iLN6#,RN6#..5F..(EFI,TD)198408-198903

main33530-35100iRN55..R198508-198808

main33530-35110iRN6#..5F..(CBR,TBO)198508-198808

main33530-35130iVZN6#..R198711-198903

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iLN5#,6#,RN5#,6#,7#,VZN6#..MTM198308-198903

33555BOOT, SHIFT LEVER

main33555-22050iLN66,RN6#..5F..(EFI,TD)198408-198903

main33555-31011iRN5#..MTM198308-198508

main33555-35040iLN56,RN6#..G,R198308-198808

main33555-35060iRN75..DLX..USA198308-198808

main33555-35070iRN6#,VZN6#..4FC198501-198903

main33555-60030iVZN6#..R198711-198903

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20010iRN5#..MTM198308-198508

T=3.0

sub33556-35040

main33556-22010iRN5#..MTM198308-198508

T=6.5

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iRN5#,7#..MTM..(CBR,EFI)198408-198903

main33584-31020iRN5#..MTM198308-198508

9010908054

main90109-08054

9338116012

main93381-16012

10 parts on this diagram · 10 diagrams in section
