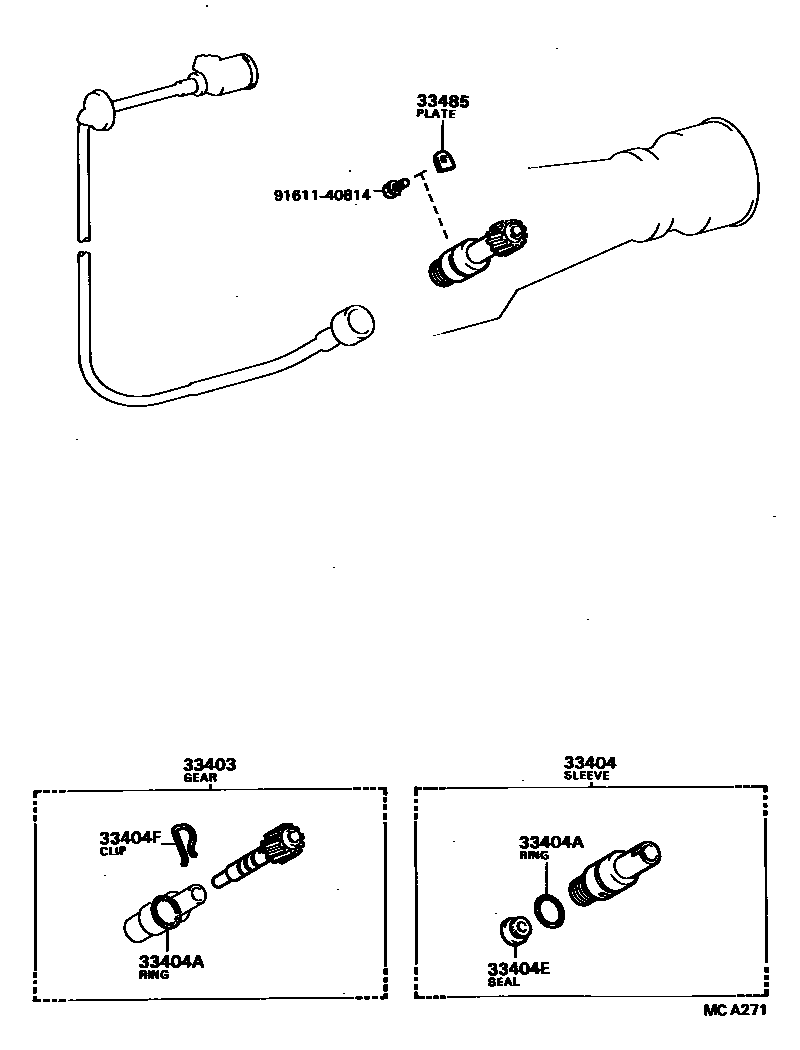

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=31,MARK 31:11,N=31
N=32,MARK 32:11,N=32
N=32,MARK 32:11
N=30,MARK 30:11,N=30
N=33,MARK 33:10,N=33,*AXC=G282
N=31,MARK 31:10,N=31
N=34,MARK 34:10,N=34,*AXC=G282
N=26,MARK 26:11,N=26
N=27,MARK 27:11,N=27,W/P195/75R14 TIRE
N=19,MARK 19:6,N=19
N=17,N=17,W/7.00-14-6 TIRE
N=17,N=17
N=18,MARK 18:6,N=18
N=15,N=15
N=15,N=15,W/P195/75R14 TIRE
N=19,N=19
N=19,N=19
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161140814
main91611-40814
7 parts on this diagram · 1 diagram in section
