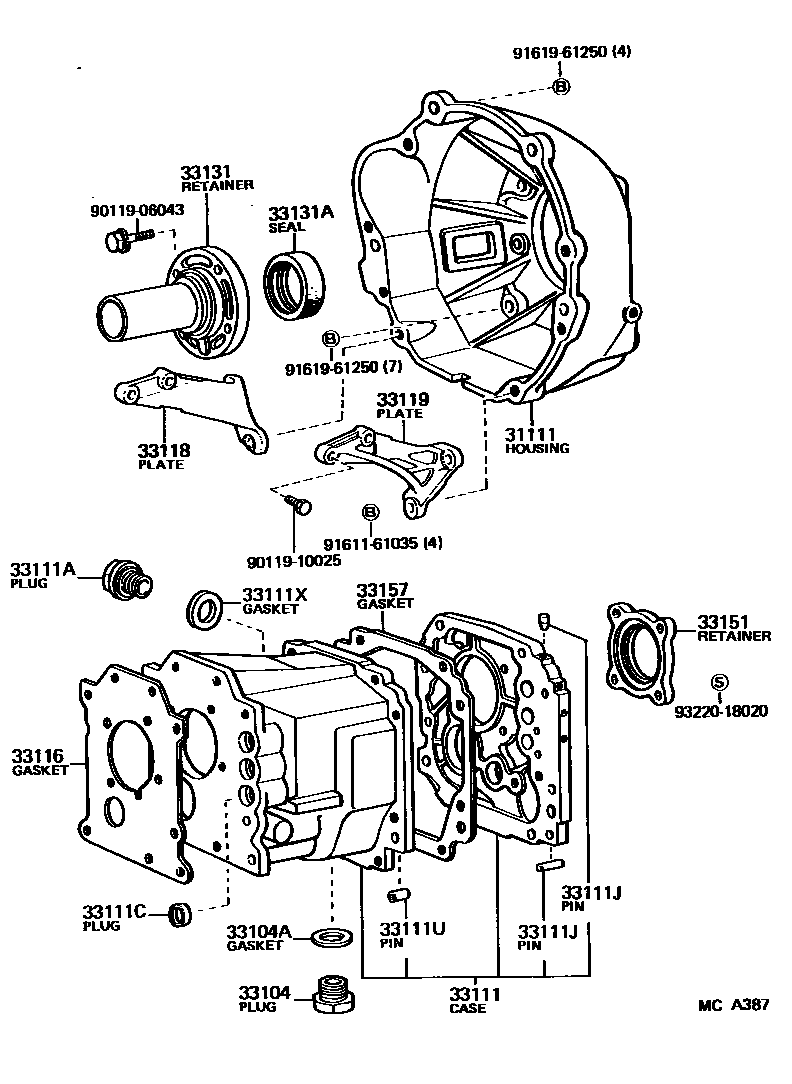

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0003 1 0005 1 0007 1 0008 1 0010 1

31111HOUSING, CLUTCH

main31111-20110iRN5#..MTM198308-198508

main31111-20171iRN5#,7#..MTM..(CBR,EFI)198408-198808

main31111-22111iLN5#,65198308-198708

sub31111-22112

main31111-35010iRN6#..5F..(CBR,EFI)198308-198804

sub31111-35011

main31111-35011iRN6#..W198804-198903

main31111-35030iLN66198508-198708

sub31111-35031

main31111-35050iVZN6#..R198711-198903

main31111-36190iRN55,6#..R198508-198808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iRN55,6#..R198508-198903

main90341-18057iLN56,66,RN5#,6#,7#..MTM..(DLX,SR5,STD)198308-198903

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iLN5#,65,RN5#,6#..MTM198308-198408

sub90430-18008

main90430-18008iLN5#,6#,RN5#,6#,7#,VZN6#..MTM198408-198903

33111CASE, MANUAL TRANSMISSION

main33101-20011iRN5#..MTM198308-198508

sub33101-30021

main33101-22021iRN50..4F;RN5#..MTM..EFI198408-198808

sub33101-22031

main33101-22030iRN65..XTR..W;RN60..(V,WG)..W198408-198903

sub33101-22031

main33101-35010iLN5#..DSL198308-198808

sub33101-35050

main33101-35020iLN65,RN6#..G198308-198808

sub33101-35070

main33101-35030iVZN6#..R198508-198903

sub33101-35031

sub90341-16014

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iLN66,RN55,6#,75..MTM..(EFI,TD)198408-198903

main90341-18006iVZN6#..R198308-198903

main90341-18019iLN65,RN6#..G198308-198808

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLN5#,65,RN6#..G198308-198903

OD=14

main90331-20044iRN5#..MTM198308-198508

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLN5#,65,RN6#..G198308-198903

L=16,OD=12

main90250-12195iRN5#..5F..CBR198308-198508

L=35,OD=12

main90334-06017iRN5#..5F..CBR198308-198508

L=11,OD=6

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-13017iRN5#..MTM198308-198508

L=12,OD=13

main90253-15001iRN50..CND;RN5#,70..G198308-198903

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iLN5#,65,RN5#,6#..MTM198308-198408

sub90430-18008

main90430-18008iLN5#,6#,RN5#,6#,7#,VZN6#..MTM198408-198903

33116GASKET, MANUAL TRANSMISSION CASE

main33132-20040iRN5#..MTM198308-198508

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRN5#,7#..MTM..(CBR,EFI)198308-198808

main33118-25020iLN5#,65198308-198708

main33118-35020iRN55..R198308-198903

main33118-35030iLN66198508-198708

sub33118-35031

main33118-35040iVZN6#..R198711-198903

33119PLATE, STIFFENER, LH(MTM)

main33119-22021iRN5#,7#..MTM..(CBR,EFI)198308-198804

sub33119-22022

main33119-22022iRN5#,7#..MTM..(CBR,EFI)198804-198808

main33119-25020iLN5#,6#198308-198708

main33119-35020iRN55..R198508-198804

sub33119-35021

main33119-35021iRN6#..5F198308-198903

main33119-35030iVZN6#..R198711-198903

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iRN5#..W..CBR;RN70..5F..W..USA;RN55,70..5F..CND..CBR198408-198808

sub33131-22021

main33131-22021iRN61..W198808-198903

main33131-26020iLN5#,65,RN6#..G198401-198808

main33131-28010iRN60..IV;LN5#,65,RN65;RN60..(DLX,STD)..CBU198308-198312

main33131-31010iRN5#..5F..CBR198308-198508

main33131-35030iRN55,6#..R198508-198903

sub33131-35031

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iLN5#,6#,RN5#,6#,7#..MTM..(DLX,SR5,STD)198308-198903

main90311-32012iVZN6#..R198508-198903

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iLN66,RN55,6#,75..MTM..(EFI,TD)198408-198903

main33151-20010iRN5#..MTM198308-198508

main33151-28010iRN50..CND;RN5#,70..G198308-198808

main33151-35020iRN55,6#..R198508-198903

33157GASKET, TRANSMISSION CASE, NO.2

main33142-20020iRN5#..MTM198308-198508

9011906043

main90119-06043

9011910025

main90119-10025

9161161035

main91611-61035

9161961250

main91619-61250

9322018020

main93220-18020

21 parts on this diagram · 6 diagrams in section
