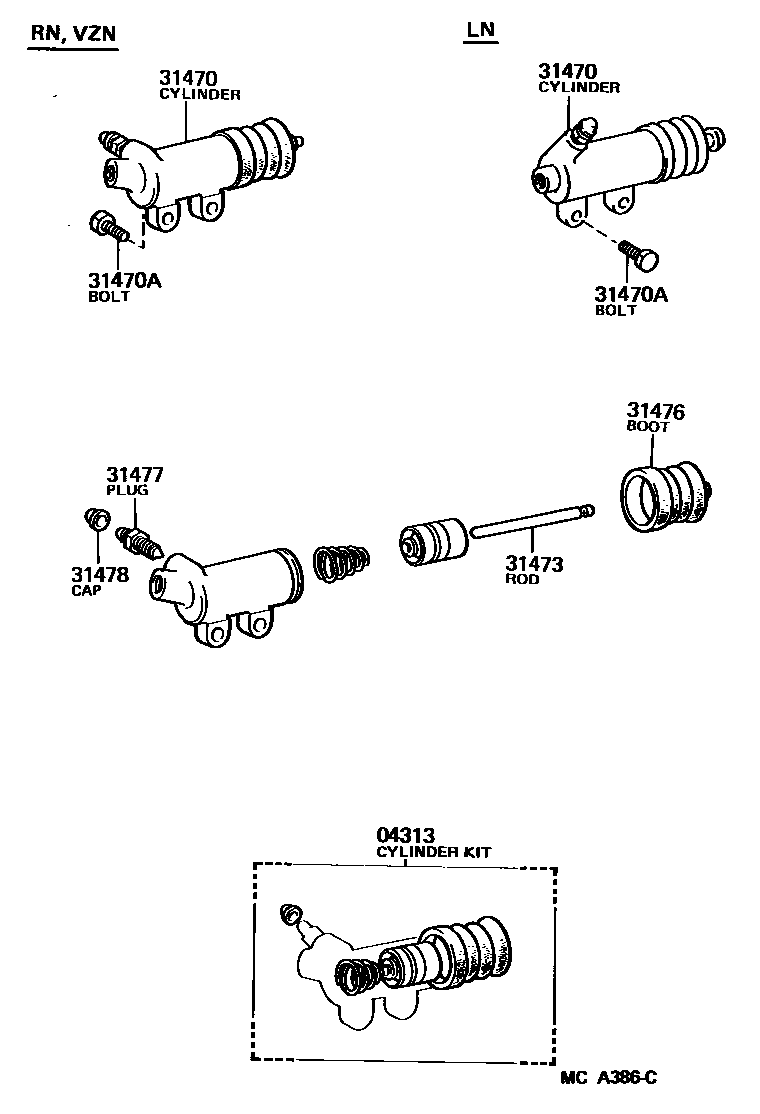

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iLN5#,6#,RN5#,6#,7#,VZN6#..MTM¥1,040198308-198903

sub04313-12030¥800

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-30220iLN5#,6#¥7,200198308-198708

sub31470-30221¥7,400

main31470-35050iRN5#,6#,7#..MTM..(CBR,EFI)¥7,600198308-198903

sub31470-30260¥7,400

main31470-35070iVZN6#..R¥7,400198508-198903

sub31470-35071¥7,400

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iVZN6#..R¥200198508-198903

*8-1.25PX20-20

sub91611-G0820¥160

main91611-60825iLN5#,6#,RN5#,6#,7#..MTM..(DLX,SR5,STD)¥140198308-198903

*8-1.25PX25-25

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLN5#,6#,RN5#,6#,7#,VZN6#..MTM¥720198308-198903

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLN5#,6#,RN5#,6#,7#,VZN6#..MTM¥230198308-198903

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLN5#,6#,RN5#,6#,7#,VZN6#..MTM¥180198308-198903

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLN5#,6#,RN5#,6#,7#,VZN6#..MTM¥160198308-198903

7 parts on this diagram · 1 diagram in section
