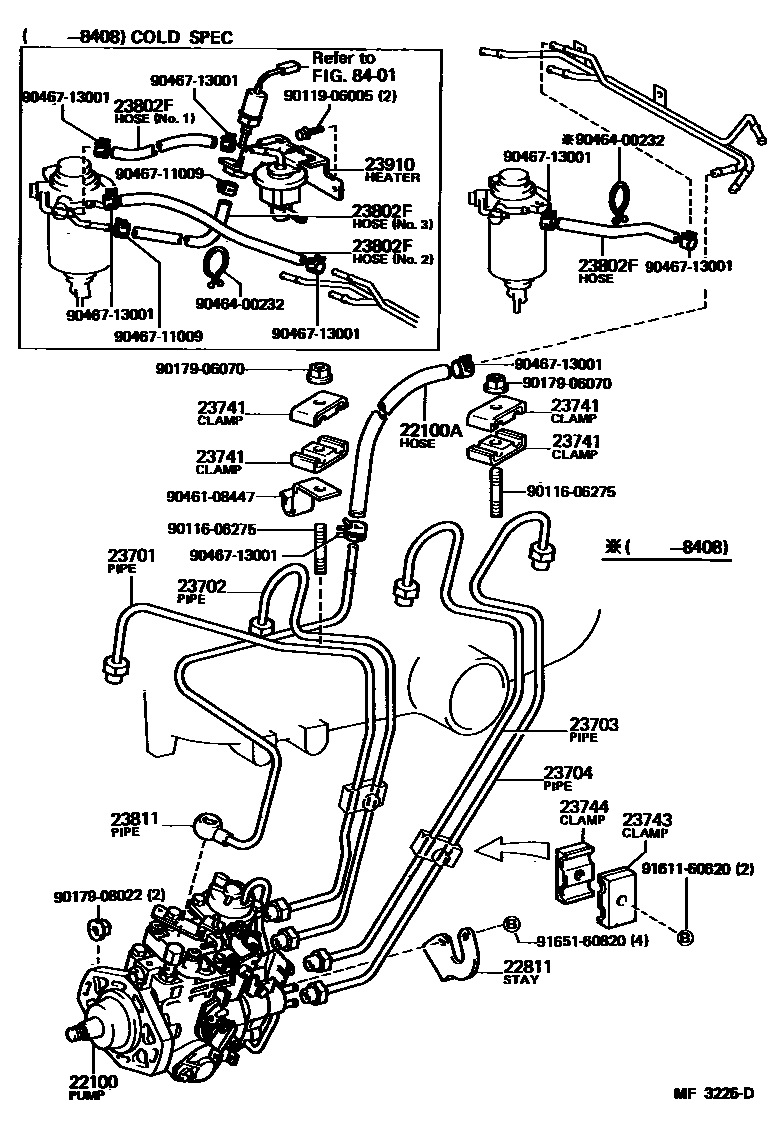

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54400i2L..LN5#,65198308-198607

main22100-54401i2L..LN56198607-198708

main22100-54410i2L..LN56..IV198308-198408

CALIFORNIA SPEC

main22100-54490i2LT..LN6#198408-198607

main22100-54491i2LT..LN66198607-198708

main22100-54500i2LT..LN56198408-198508

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23906-54010i2LT..LN56,6#198408-198708

main95332-08040i2L..LN5#,65198308-198508

L=400(*H,L=380)

sub95333-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L#..LN5#,6#198308-198708

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051i2L..LN5#,65198308-198311

main23701-54081i2L..LN56..IV198308-198311

CALIFORNIA SPEC

sub23701-54082

main23701-54082i2L#..LN5#,6#198311-198903

sub23701-54072

main23701-54082i2L..LN56..IV198311-198408

CALIFORNIA SPEC

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050i2L..LN5#,65198308-198311

main23702-54081i2L..LN56..IV198308-198408

CALIFORNIA SPEC

sub23702-54071

main23702-54081i2L#..LN5#,6#198311-198708

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050i2L..LN5#,65198308-198708

main23703-54081i2L..LN56..IV198308-198311

CALIFORNIA SPEC

sub23703-54082

main23703-54082i2L..LN56..IV198311-198408

CALIFORNIA SPEC

sub23703-54072

main23703-54082i2LT..LN56,6#198408-198708

sub23703-54072

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050i2L..LN5#,65198308-198708

main23704-54081i2L..LN56..IV198308-198311

CALIFORNIA SPEC

sub23704-54082

main23704-54082i2LT..LN56,6#198408-198708

sub23704-54072

main23704-54082i2L..LN56..IV198311-198408

CALIFORNIA SPEC

sub23704-54072

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2L#..LN5#,6#198308-198708

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010i2L#..LN5#,6#198308-198708

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010i2L#..LN5#,6#198308-198708

23802FHOSE, FUEL

main95332-06020i2L..LN5#,65198308-198408

NO.3,COLD SPEC,*H,L=140

sub95333-06020

main95332-08020i2L..LN5#,65198308-198408

NO.1,COLD SPEC,*H,L=160

sub95333-08020

main95332-08020i2L#..LN5#,6#198408-198702

L=200

sub95333-08020

main95332-08040i2L..LN5#,65198308-198408

NO.2,COLD SPEC,*H,L=340

sub95333-08040

main95332-08040i2L..LN5#,65198308-198408

*H,L=340

sub95333-08040

main95333-08020i2L#..LN56,66198702-198708

sub95337-08020

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54051i2L..LN5#,65198308-198708

main23811-54090i2LT..LN56,6#198408-198708

23910HEATER ASSY, FUEL

main23910-54020i2L..LN5#,65198308-198408

COLD SPEC

8401

9011606275

main90116-06275

9011906005

main90119-06005

9017906070

main90179-06070

9017908022

main90179-08022

9046108447

main90461-08447

9046400232

main90464-00232

9046711009

main90467-11009

9046713001

main90467-13001

9161160620

main91611-60620

9165160820

main91651-60820

24 parts on this diagram · 1 diagram in section
