STARTER

0001 1 0003 1 0004 1 0006 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i22R#..RN5#,7#198311-198808

12V 1.0KW,1.4KW

main28011-35030i22R#,3VZE..RN6#,VZN6#198311-198903

12V 1.0KW,1.4KW,1.6KW

main28011-54010i2L#..LN5#,6#198308-198708

12V 2.5KW

28100STARTER ASSY

main28100-34053i22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW

main28100-34080i22R..RN60..IV;22R#..RN5#,65..USA;22R..RN60..STD..CBU198308-198808

12V 1.0KW,12V 1.0KW

main28100-35020i22REC,22RTEC..RN5#,7#198311-198808

12V 1.4KW,12V 1.4KW

sub28100-35060

main28100-35030i22R#..RN6#..USA198311-198903

12V 1.0KW,12V 1.0KW

sub28100-35060

main28100-35040i22R#..RN6#198311-198903

12V 1.4KW,12V 1.4KW

sub28100-35060

main28100-54090i2L#..LN5#,6#198308-198708

12V 2.7KW,12V 2.5KW

main28100-65010i3VZE..VZN6#..R..USA198711-198903

12V 1.0KW,12V 1.0KW

sub28100-65030

main28100-65020i3VZE..VZN6#..USA198711-198903

12V 1.4KW,12V 1.4KW

sub28100-65030

main28100-65030i3VZE..VZN6#..4FC..CND198711-198903

12V 1.6KW,12V 1.6KW

28110HOUSING ASSY, STARTER DRIVE

main28110-34080i22R#..RN5#,6#,7#..USA;22R,22RTEC..RN55..USA;22REC..RN55..STD..HLF..CND198308-198903

12V 1.0KW

main28110-35020i22R#..RN5#,6#,7#198311-198903

12V 1.4KW

main28110-65010i3VZE..VZN6#..R..USA198711-198903

12V 1.0KW

main28110-65020i3VZE..VZN6#198711-198903

12V 1.4KW,1.6KW

main28115-34053i22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW

main28115-54011i2L#..LN5#,6#198308-198708

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-15090i3VZE..VZN6#..R..CND198311-198903

12V 1.4KW

main28120-26071i22R#..RN5#,6#,7#..USA;22R,22RTEC..RN55..USA;22REC..RN55..STD..HLF..CND198308-198903

12V 1.0KW

main28120-34040i22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW

main28120-47040i2L#..LN5#,6#198308-198608

12V 2.5KW

main28120-56081i2L#..LN56,66198608-198708

12V 2.5KW

main28120-65030i3VZE..VZN6#..4FC..CND198711-198903

12V 1.6KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-34060i3VZE..VZN6#..R..USA198308-198903

12V 1.0KW

main28130-35020i22R#..RN5#,6#,7#198311-198903

12V 1.4KW

main28130-54060i2L#..LN5#,6#198308-198708

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

main28130-72020i3VZE..VZN6#198711-198903

12V 1.4KW,1.6KW

28137WASHER, FELT, STARTER

main90099-02202i22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW

main90099-02205i2L#..LN5#,6#198308-198708

12V 2.5KW

main90099-02323i22R..RN60..IV;22R#..RN5#,65..USA;22R..RN60..STD..CBU198308-198403

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i22R#,3VZE..RN5#,6#,7#,VZN6#198311-198901

12V 1.4KW,1.6KW

main28140-15090i3VZE..VZN61198901-198903

12V 1.6KW

main28140-26070i22R#..RN5#,6#,7#..USA;22R,22RTEC..RN55..USA;22REC..RN55..STD..HLF..CND198308-198903

12V 1.0KW

main28140-34030i22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW

main28140-65010i22REC..RN61..USA198901-198903

12V 1.0KW

main28140-65020i22REC..RN61198901-198903

12V 1.4KW

main28140-77090i2L#..LN5#,6#198308-198708

12V 2.5KW

28143SPRING, STARTER BRUSH

main90099-17112i22R#,3VZE..RN5#,6#,7#,VZN6#198308-198903

12V 1.0KW,1.4KW,1.6KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34052i22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW

main28150-34080i22R..RN60..IV;22R#..RN5#,65..USA;22R..RN60..STD..CBU198311-198808

12V 1.0KW

main28150-35030i22R#..RN6#..USA198311-198901

12V 1.0KW

sub28150-35031

main28150-35031i22REC..RN61..USA198901-198903

12V 1.0KW

main28150-35040i22R#..RN6#198311-198901

12V 1.4KW

sub28150-35041

main28150-35041i22REC..RN61198901-198903

12V 1.4KW

main28150-54051i2L#..LN5#,6#198308-198708

12V 2.5KW

sub28150-54221

main28150-65010i3VZE..VZN6#..R..USA198711-198903

12V 1.0KW

sub28150-65011

main28150-65020i3VZE..VZN6#198711-198903

12V 1.4KW,1.6KW

sub28150-65021

main28150-72020i22R#..RN5#,7#198311-198808

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15090i3VZE..VZN6#..USA198311-198903

12V 1.4KW

sub28160-15091

main28160-26050i22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW

main28160-26070i22R#..RN5#,6#,7#..USA;22R,22RTEC..RN55..USA;22REC..RN55..STD..HLF..CND198308-198903

12V 1.0KW

sub28160-26071

main28160-47040i2L#..LN5#,6#198308-198708

12V 2.5KW

sub28160-54140

main28160-65030i3VZE..VZN6#..4FC..CND198711-198903

12V 1.6KW

sub28160-65031

28160ABEARING, STARTER ARMATURE

main28253-45020i3VZE..VZN6#..R..USA198308-198903

12V 1.0KW,NO.1

main28253-45020i22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW,NO.1

main90099-10107i2L#..LN5#,6#198311-198708

12V 2.5KW,NO.1

main90099-10107i22R..RN60..IV;22R#,2L..LN5#,65,RN5#,65;22R..RN60..(DLX,STD)..CBU198308-198311

12V 1.4KW,2.5KW,NO.2

main90099-10113i3VZE..VZN6#..R..USA198308-198903

12V 1.0KW,NO.2

main90099-10119i2L#..LN5#,6#198308-198708

12V 2.5KW,NO.2

main90099-10143i3VZE..VZN6#..USA198311-198903

12V 1.4KW,NO.2

main90099-10144i22R#..RN5#,6#,7#198311-198903

12V 1.4KW,NO.1

main90099-10144i3VZE..VZN6#198711-198903

12V 1.4KW,1.6KW,NO.1

main90099-65030i3VZE..VZN6#..4FC..CND198711-198903

12V 1.6KW,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i22R#,3VZE..RN5#,6#,7#,VZN6#198308-198903

12V 1.0KW,1.4KW,1.6KW

main28165-77090i2L#..LN5#,6#198308-198708

12V 2.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i22R#,3VZE..RN5#,6#,7#,VZN6#198308-198903

12V 1.0KW,1.4KW,1.6KW

main28228-56080i2L#..LN5#,6#198308-198708

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i22R#,3VZE..RN5#,6#,7#,VZN6#198308-198903

12V 1.0KW,1.4KW,1.6KW

main28229-56080i2L#..LN5#,6#198308-198708

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i22R#,3VZE..RN5#,6#,7#,VZN6#198308-198903

12V 1.0KW,1.4KW,1.6KW

main28254-77090i2L#..LN5#,6#198308-198708

12V 2.5KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011610021

main90116-10021

9017908146

main90179-08146

9017910125

main90179-10125

9161161030

main91611-61030

9161161035

main91611-61035

9161161045

main91611-61045

9411040800

main94110-40800

9451100800

main94511-00800

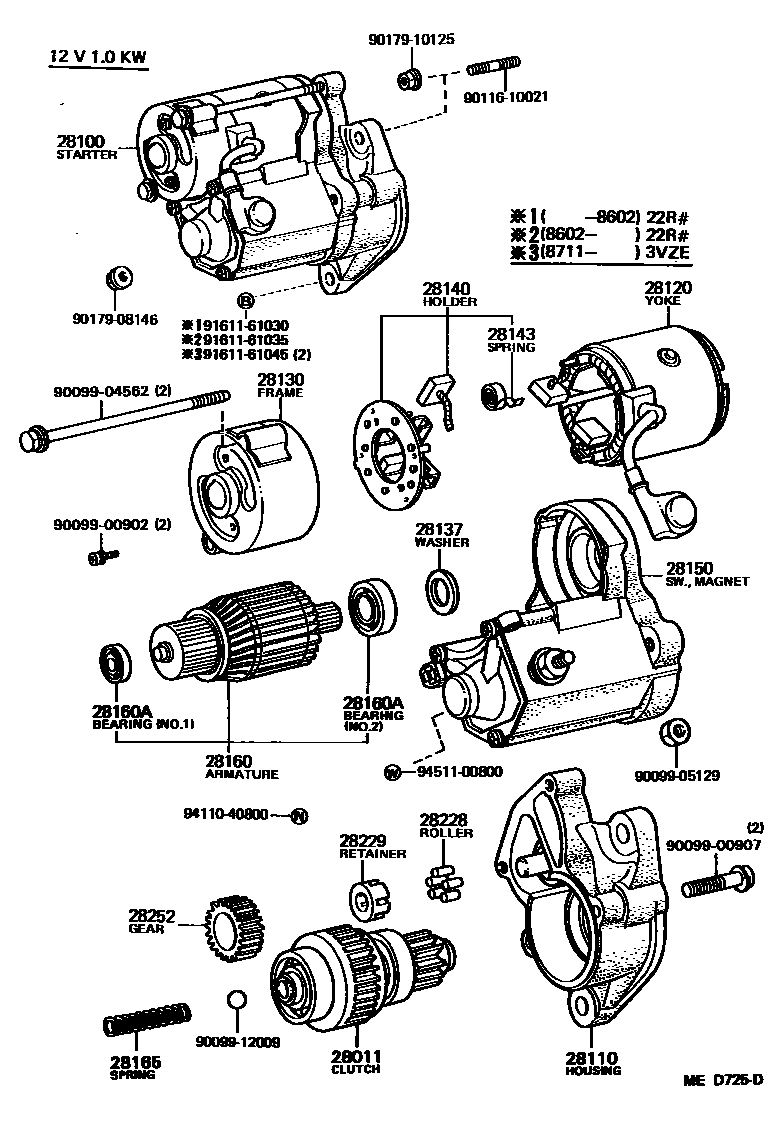

28 parts on this diagram · 4 diagrams in section
