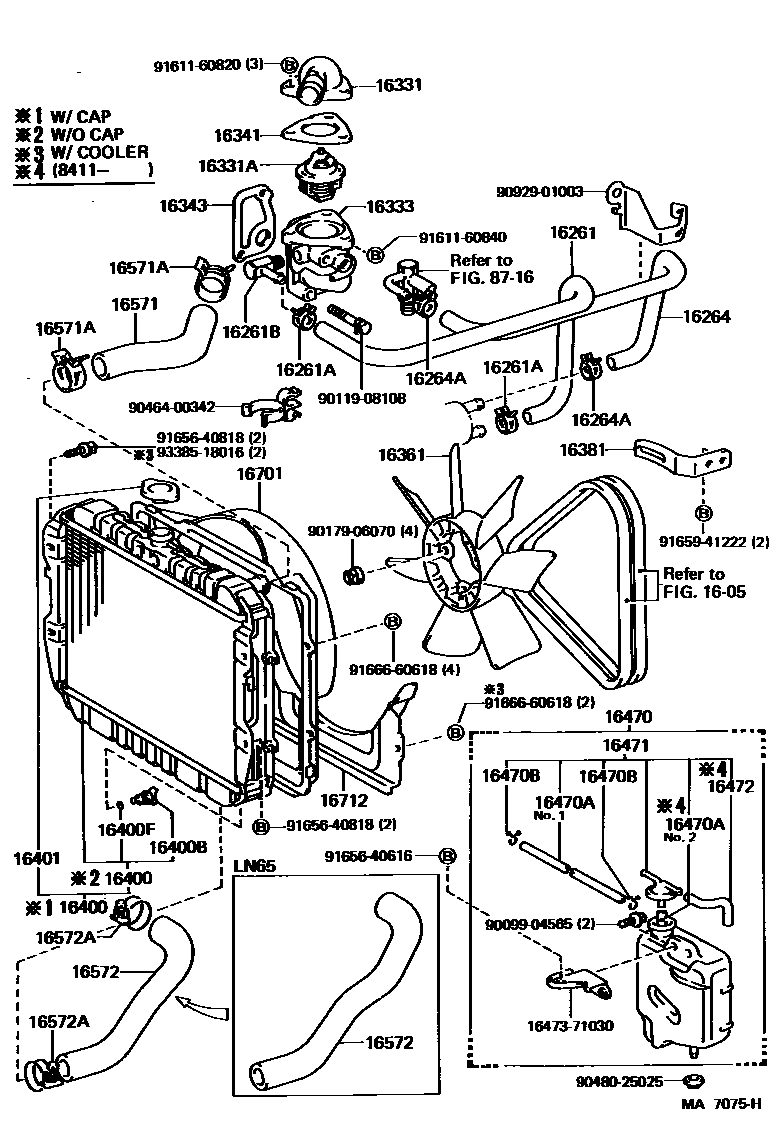

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605

16261HOSE, WATER BY-PASS

main16261-35030i22REC..RN5#198308-198903

main16261-35040i22R..RN5#,6#198308-198408

main16261-35060i22R..RN5#,6#,70198408-198808

sub16261-35061

main16261-35070i22REC..RN5#,6#198408-198508

main16261-35080i22R..RN50..CND;22R..RN5#,70..G198708-198808

main16261-54030i2L#..LN5#,6#198308-198708

main16261-65010i3VZE..VZN6#198711-198808

main16261-65011i3VZE..VZN61198808-198903

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15004i2L#..LN5#,6#198308-198708

main90467-20005i22R,22REC..RN5#,6#,7#198308-198903

sub96134-41900

main90467-23003i3VZE..VZN6#198711-198903

sub96134-42300

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-52015i2L#..LN5#,6#198308-198708

main90404-53040i22R,22REC..RN5#,6#198408-198808

sub90404-53070

main90407-14002i22REC..RN5#198308-198408

sub90407-53007

main90407-53004i22R..RN5#,6#198308-198408

main90407-53007i22REC,22RTEC..RN5#,6#,7#198501-198903

16264HOSE, WATER BY-PASS, NO.2

main16264-54010i2L#..LN5#,6#198308-198708

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15004i2L#..LN5#,6#198308-198708

16331OUTLET, WATER

main16331-35040i22REC,22RTEC..RN5#,75198308-198903

sub16331-35041

main16331-35050i22R..RN5#,6#,70198308-198808

sub16331-35051

main16331-35070i22REC..RN55..10T198408-198808

TOWING PACKAGE,W/COOLER

main16331-35070i22REC,22RTEC..RN6#198408-198708

main16331-35090i22RTEC..RN6#198508-198708

W/COOLER

main16331-37080i22R..RN60..(V,WG)..USA198308-198408

CALIFORNIA SPEC

main16331-54030i2L..LN5#,65198308-198708

main16331-54080i2LT..LN56,6#198408-198511

sub16331-54081

main16331-54081i2LT..LN66198511-198708

main16331-65010i3VZE..VZN6#198711-198808

main16331-65011i3VZE..VZN61198808-198903

16331ATHERMOSTAT

main90916-03054i22RTEC..RN55198501-198508

*WAX 82-95

sub90916-03083

main90916-03055i22R,22REC..RN5#,6#198308-198701

*WAX 88-100

sub90916-03078

main90916-03062i2L#..LN5#,6#198308-198708

*WAX 88-100

sub90916-03072

main90916-03078i22R#..RN5#,6#,7#198701-198903

*WAX 88-100

main90916-03079i3VZE..VZN6#198711-198903

*WAX 82-95

16333HOUSING, WATER OUTLET

main16333-54030i2L..LN56..IV198308-198408

CALIFORNIA SPEC

main16333-54040i2L..LN5#,65198308-198708

main16333-54060i2LT..LN56,6#198408-198511

sub16333-54061

sub16343-54021

main16333-54061i2LT..LN66198511-198708

16341GASKET, WATER OUTLET

main16341-35010i2LT..LN56,6#198308-198903

main16341-54011i2L..LN5#,65198308-198708

sub16341-54030

main16341-65010i3VZE..VZN6#198711-198903

sub16341-35010

16343GASKET, WATER OUTLET HOUSING

main16343-54011i2L..LN5#,65198308-198708

sub16343-54021

main16343-54020i2LT..LN56,6#198408-198511

main16343-54021i2LT..LN66198511-198708

16361FAN

main16361-38010i22R#..RN5#,6#,7#198308-198903

main16361-54010i2L#..LN5#,65198308-198508

sub16361-54020

main16361-54020i2L#..LN56,66198508-198708

main16361-65010i3VZE..VZN6#198711-198903

16381BAR, FAN BELT ADJUSTING

main16381-35020i22R#..RN5#,6#198408-198508

sub16381-35021

sub91651-60818

main16381-35021i22R#..RN5#,6#,7#198508-198903

main16381-38020i22R#..RN5#,6#198308-198408

main16381-54011i2L#..LN5#,6#198308-198708

main16381-65010i3VZE..VZN6#198711-198903

16400RADIATOR ASSY

main16400-35110i22R..RN5#..MTM..(3QT,HLF)198404-198408

W/CAP

sub16400-35350

main16400-35120i22R..RN55..HVY;22REC..RN5#..5F198404-198408

W/CAP

sub16400-35130

main16400-35130i22R#..RN55..4FC198404-198408

W/CAP

main16400-35140i22R..RN6#..HLF198404-198508

W/CAP

sub16400-35330

main16400-35150i22R..RN60..V,WG198404-198408

W/CAP

sub16400-73380

main16400-35200i22REC..RN5#,6#..T1..MTM198408-198508

W/CAP

sub16400-35350

main16400-35210i22R..RN5#..4FC198408-198508

W/CAP

sub16400-35340

main16400-35220i22REC..RN55..10T198408-198508

W/CAP

sub16400-35370

main16400-35220i22REC..RN55..10T198408-198508

TOWING PACKAGE,W/CAP

sub16400-35370

main16400-35270i22REC..RN55..4FC198408-198508

W/CAP

sub16400-35360

main16400-35280i22RTEC..RN55198501-198508

W/CAP

sub16400-35390

main16400-35290i22REC..RN6#..4FC198501-198508

W/CAP

sub16400-35380

main16400-35300i22RTEC..RN55..R198508-198808

W/CAP

sub16400-35390

main16400-35310i22RTEC..RN6#..R198508-198708

W/CAP

main16400-35320i22RTEC..RN6#..4FC198508-198708

W/CAP

main16400-35330i22R..RN5#,70198508-198808

W/CAP

main16400-35340i22R..RN5#,70..4HC198508-198708

W/CAP

main16400-35350i22R..RN6#198508-198808

W/CAP

main16400-35360i22R,22REC..RN5#,70..ATM..(10T,HLF)198508-198808

W/CAP

main16400-35370i22REC..RN61..(V,WG)..W198508-198903

W/CAP

main16400-35370i22REC..RN55..W..10T198508-198808

TOWING PACKAGE,W/CAP

main16400-35380i22REC..RN6#..4FC198508-198903

W/CAP

main16400-35390i22RTEC..RN55..4FC198508-198608

W/CAP

main16400-35420i22REC..RN55,75..4HC..IV198601-198808

W/CAP

main16400-54240i2L..LN5#198408-198508

W/CAP

sub16400-54250

main16400-54241i2L..LN56198508-198708

W/CAP

sub16400-54251

main16400-54260i2L..LN65198404-198408

W/CAP

main16400-54420i2LT..LN56198408-198508

sub16400-54250

main16400-54430i2LT..LN6#198408-198708

sub16400-54260

main16400-65010i3VZE..VZN6#..R198711-198903

sub16400-65020

main16400-65020i3VZE..VZN6#..4FC198711-198808

main16400-65021i3VZE..VZN61..4FC198808-198903

main16410-35080i22R..RN5#..MTM..(3QT,HLF)198308-198404

W/O CAP

sub16400-35110

main16410-35090i22R..RN55..HVY;22REC..RN5#..5F198308-198404

W/O CAP

sub16400-35120

main16410-35100i22R#..RN55..4FC198308-198404

W/O CAP

sub16400-35130

main16410-35110i22R..RN65;22R..RN60..IV;22R..RN60..(DLX,STD)..HLF..CBU198308-198404

W/O CAP

sub16400-35140

main16410-35120i22R..RN60..V,WG198403-198404

W/O CAP

sub16400-35150

main16410-54240i2L..LN5#198308-198404

W/O CAP

sub16400-54240

main16410-54260i2L..LN65198308-198404

W/O CAP

sub16400-54260

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i2L#..LN5#,6#198308-198903

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96711-19007i3VZE..VZN6#198308-198903

16401CAP SUB-ASSY, RADIATOR

main16401-36011i22R#..RN5#,6#198308-198508

main16401-63010i3VZE..VZN6#198508-198903

16470TANK ASSY, RADIATOR RESERVE

main16470-35040i22REC..RN6#..4FC198501-198808

main16470-35050i22REC,22RTEC..RN6#198703-198903

main16470-54060i2L..LN5#,65198308-198508

main16470-54110i2LT..LN56,65198408-198506

sub16470-54111

main16470-54111i2LT..LN56,6#198506-198708

main16470-71030i22REC..RN5#,75198308-198808

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12049i2L..LN5#,65198308-198411

NO.1

sub90445-12080

main90445-12078i22RTEC..RN55198408-198808

L=1000(*H,L=350),NO.1

main90445-12078i2L..LN5#198411-198508

L=1000(*H,L=400),NO.1

main90445-12078i22REC..RN6#..4FC198501-198703

L=600(*H,L=230),NO.1,NO.2

main90445-12078i2L#..LN5#,6#198411-198708

L=1000(*H,L=220),NO.2

main90445-12078i2LT..LN56,6#198506-198708

L=1450(*H,L=330),NO.1

main90445-12078i22RTEC..RN55,61,66198501-198808

L=600(*H,L=230),NO.2

main90445-12078i3VZE..VZN6#198703-198903

L=1000(*H,L=350),NO.1,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2L#..LN5#,6#198308-198903

16471CAP SUB-ASSY, RESERVE TANK

main16405-35010i22RTEC..RN55,61,66198501-198903

main16405-54070i2L..LN5#,65198308-198508

main16405-54140i2LT..LN56,6#198506-198708

main16405-71010i2LT..LN56,65198308-198808

16472HOSE, BREATHER

main85338-71030i22REC..RN6#..4FC198408-198903

16571HOSE, RADIATOR, INLET

main16571-35070i22R..RN5#,6#,70198308-198808

main16571-35080i22REC..RN6#..W198308-198903

sub16571-35180

main16571-35120i22RTEC..RN55,61,66198501-198808

main16571-35130i22REC..RN6#..4FC198501-198903

sub16571-35180

main16571-54130i2L..LN5#,65198308-198708

main16571-54210i2LT..LN6#198408-198708

main16571-54220i2LT..LN56198408-198508

main16571-65010i3VZE..VZN6#198711-198903

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i22R#..RN5#,6#,7#198308-198808

sub90467-37003

main90467-37003i3VZE..VZN61198808-198903

16572HOSE, RADIATOR, OUTLET

main16572-35030i22R#..RN5#,6#198308-198808

RADIATOR SIDE

main16572-35060i22RTEC..RN55198408-198903

RADIATOR SIDE

main16572-35060i22REC..RN60..V,WG198408-198808

TOWING PACKAGE,RADIATOR SIDE

main16572-35070i22REC..RN6#..4FC198501-198903

RADIATOR SIDE

main16572-35100i22RTEC..RN6#..4FC198508-198708

RADIATOR SIDE

main16572-54100i2LT..LN56198308-198708

main16572-54120i2L#..LN6#198308-198708

main16572-65010i3VZE..VZN6#198711-198903

main16573-35020i22RTEC..RN55198501-198504

CHAIN COVER SIDE

main16573-35021i22RTEC..RN55,61,66198504-198808

CHAIN COVER SIDE

main16573-38020i22R,22REC..RN5#,6#,7#198308-198903

CHAIN COVER SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i3VZE..VZN6#198711-198808

RADIATOR SIDE

sub90467-37003

main90467-38001i3VZE..VZN61198808-198903

sub90466-38001

main96111-10460i2L#..LN5#,6#198308-198708

RADIATOR SIDE

main96111-10460i22R#..RN5#,6#,7#198308-198808

main96111-10460i3VZE..VZN6#198711-198808

WATER PUMP SIDE

main96111-10500i2L#..LN5#,6#198308-198708

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-35020i22R..RN5#,6#,70..T1198308-198808

main16711-35030i22REC..RN55..10T198408-198808

TOWING PACKAGE

main16711-35030i22REC..RN61..(V,WG)..W198403-198903

main16711-35050i22REC..RN61..4FC198501-198903

sub16711-35051

main16711-35060i22R..RN50..CND198608-198708

W/COOLER

main16711-35060i22RTEC..RN6#..4FC198508-198708

main16711-54110i2L#..LN5#198308-198708

main16711-54120i2L#..LN6#198308-198708

main16711-65010i3VZE..VZN6#198711-198903

16712SHROUD, FAN, NO.2

main16712-35010i22RTEC..RN6#..4FC198508-198708

W/COOLER

main16712-54050i22R#..RN5#,6#198308-198903

W/COOLER

main16712-54080i2L#..LN56198308-198708

W/COOLER

main16712-54090i2L#..LN6#198308-198708

W/COOLER

main16712-65010i3VZE..VZN6#198711-198903

8716

1647371030SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-71030

9009904565

main90099-04565

9011908108

main90119-08108

9017906070

main90179-06070

9046400342

main90464-00342

9048025025

main90480-25025

9092901003

main90929-01003

9161160820

main91611-60820

9161160840

main91611-60840

9165640616

main91656-40616

9165640818

main91656-40818

9165941222

main91659-41222

9166660618

main91666-60618

9338518016

main93385-18016

43 parts on this diagram · 6 diagrams in section
