WATER PUMP

0001 1 0002 1 0003 1

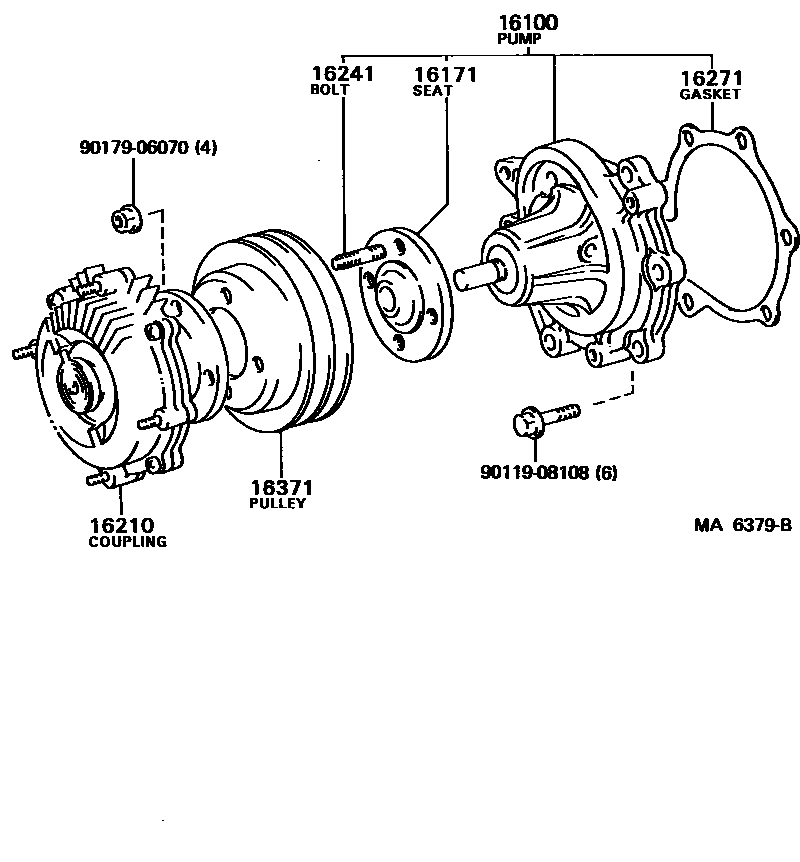

16100PUMP ASSY, ENGINE WATER

main16100-39316i22R#..RN5#,6#198308-198408

sub16100-39317

main16100-39345i22R#..RN5#,6#,7#198408-198812

sub16100-39346

main16100-39346i22REC..RN61198812-198903

main16100-59137i2L#..LN5#,6#198308-198708

sub16100-59138

main16100-69215i3VZE..VZN6#198711-198903

sub16100-69465

16171SEAT, WATER PUMP PULLEY

main16171-35010i22RTEC..RN55198501-198903

main16171-38022i22R,22REC..RN5#,6#198308-198503

main16171-54011i2L#..LN5#,6#198308-198708

16210COUPLING ASSY, FLUID

main16210-38050i22R,22REC..RN5#,7#..MTM198308-198808

main16210-38060i22R,22REC..RN6#198308-198903

main16210-54070i2L#..LN5#,6#198308-198708

main16210-65010i3VZE..VZN6#198711-198903

sub16210-65020

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020i2L#..LN5#,6#198308-198708

main16193-33030i22R#..RN5#,6#198308-198408

main16241-28020i22R#..RN5#,6#,7#198408-198903

16271GASKET, WATER PUMP

main16271-54012i2L#..LN5#,6#198308-198708

sub16271-54013

16371PULLEY, FAN

main16173-35020i22R#..RN5#,6#,7#198408-198903

main16173-38011i22R#..RN5#,6#198308-198408

main16371-54020i2L#..LN5#,6#198308-198708

main16371-65010i3VZE..VZN6#198711-198903

9011908108

main90119-08108

9017906070

main90179-06070

8 parts on this diagram · 3 diagrams in section
