HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02133iL..LN40198211-198307

L=990

main99331-00880i20R..RN3#,4#197808-197908

L=880

main99331-10880i20R,22R..RN3#,4#197908-198307

L=880

main99332-10985iL..LN40198101-198207

L=985

main99332-11000iL..LN40198207-198211

L=1000

1705

17610BBELT, V(FOR AIR PUMP)

main99332-00865i20R..RN32,42197808-197908

L=865

sub99332-10865

main99332-10820i22R..RN3#,4#..(3QT,HLF)..USA198008-198307

CALIFORNIA SPEC,L=820

main99332-10820i22R..RN44..HVY198008-198307

L=820

main99332-10830i20R..RN32,42197908-198008

L=830

44310ABELT, V(FOR VANE PUMP)

main99332-11135iRN3#,4#..MTM..(DLX,SR5)..HLF197908-198307

main99332-51135iRN37197901-197908

4503

8719

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12040iLN40..USA198101-198106

main88412-14010iLN40..USA198106-198307

main88412-14020iRN3#,4#..USA198106-198307

CALIFORNIA SPEC

sub88412-36030

main88412-20060iRN44..HVY..USA198008-198106

CALIFORNIA SPEC

main88412-20060iRN3#,42..USA197808-198008

main88412-22030iRN38,48;RN34,44..(3QT,HLF)..USA198106-198307

main88412-26010iRN3#,4#..(3QT,HLF)..USA198008-198106

sub88412-22240

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iRN38,48;LN40,RN34,44..USA198106-198307

main88411-22030iRN3#,4#..(3QT,HLF)..USA198008-198106

sub88411-14040

main88411-22040iRN44..HVY..USA198008-198106

CALIFORNIA SPEC

sub88411-14040

main88411-22040iLN40..USA197808-198106

sub88411-14040

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-01140iRN3#,42..USA197808-197908

main99332-10920iRN3#,4#..(3QT,HLF)..USA198008-198307

main99332-11110iRN3#,4#..USA198008-198307

CALIFORNIA SPEC

main99332-11110iRN3#,42..USA197908-198008

main99332-11250iLN40..USA198101-198307

L=1250

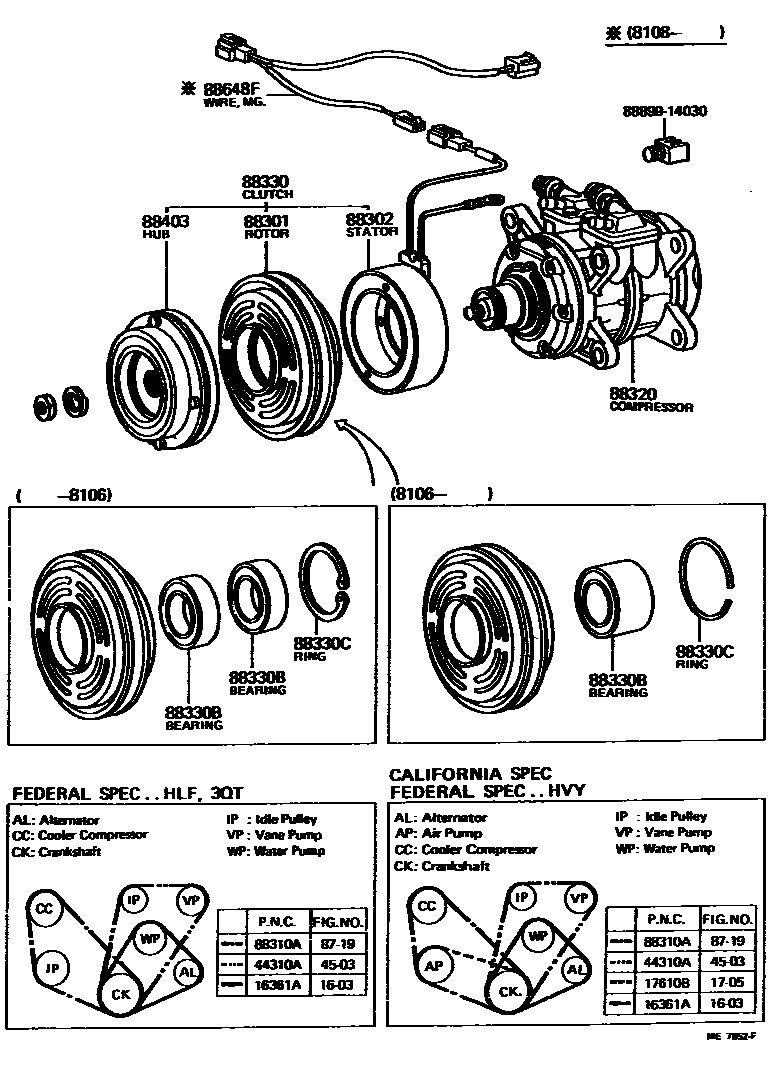

88320COMPRESSOR ASSY, COOLER

main88320-35040iRN3#,42..USA197808-198008

main88320-35041iRN3#,4#..USA198008-198108

CALIFORNIA SPEC

main88320-35050iRN3#,4#..(3QT,HLF)..USA198008-198108

main88320-35080iLN40..USA198101-198108

main88320-35081iLN40..USA198108-198307

main88320-35090iRN44..HVY..USA198008-198307

main88320-35090iRN3#,4#..USA198108-198307

CALIFORNIA SPEC

main88320-35100iRN38,48;RN34,44..(3QT,HLF)..USA198108-198307

88330CLUTCH ASSY, MAGNET

main88410-14090iLN40..USA198106-198307

main88410-14100iRN3#,4#..USA198106-198307

CALIFORNIA SPEC

main88410-20130iRN44..HVY..USA198008-198106

CALIFORNIA SPEC

sub88410-14100

main88410-20130iRN3#,42..USA197808-198008

sub88410-14100

main88410-22040iRN3#,4#..(3QT,HLF)..USA198008-198106

sub88410-22080

main88410-22060iLN40..USA198101-198106

sub88410-14090

main88410-22080iRN38,48;RN34,44..(3QT,HLF)..USA198106-198307

sub88410-60140

88330BBEARING, MAGNET CLUTCH

main90099-10117iLN40,RN3#,4#197808-198106

sub90099-10108

main90099-10133iRN38,48;LN40,RN34,44..USA198106-198307

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iRN3#,4#..USA198008-198106

CALIFORNIA SPEC

main90099-07094iRN3#,42..USA197808-198106

main90099-07113iRN3#,4#..(3QT,HLF)..USA198008-198106

sub90099-07094

main90099-07114iRN38,48;LN40,RN34,44..USA198106-198307

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iRN38,48;LN40,RN34,44..USA198106-198307

sub88403-12030

main88403-22020iRN3#,4#..(3QT,HLF)..USA198008-198106

main88403-22030iRN44..HVY..USA198008-198106

CALIFORNIA SPEC

sub88403-12030

main88403-22030iRN3#,42..USA197808-198008

sub88403-12030

main88403-26030iLN40..USA198101-198108

sub88403-30270

88648FWIRE, MAGNET CLUTCH

main88648-89111iRN38,48;RN34,44..USA198108-198307

8889914030COVER, EVAPORATOR

main88899-14030
