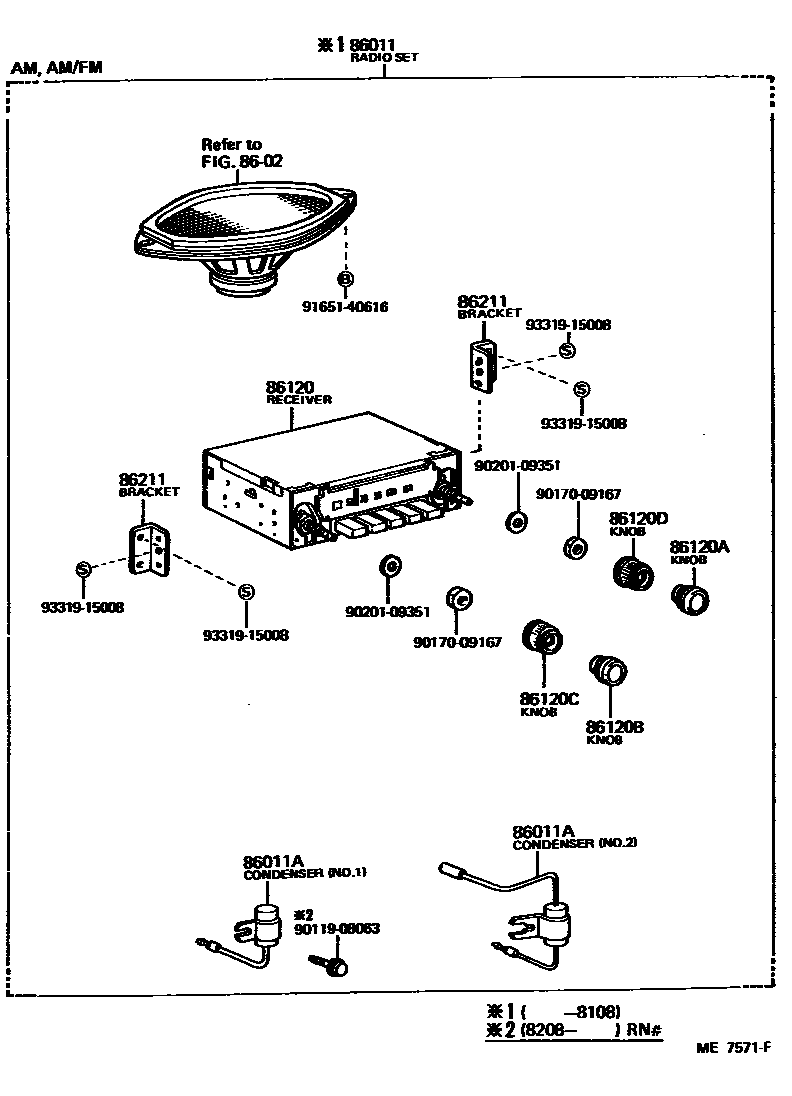

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

86011RADIO & SETTING PARTS SET

main86011-39035iLN40,RN3#,4#..DLX,STD197808-198108

AM

main86011-39055iRN42..HVY;RN44..DLX,SR5;RN44..STD..HVY;LN40,RN3#,42,47,48..(DLX,SR5)..(3QT,HLF)197808-198108

AM/FM

main86011-39085iRN37;RN32,42..SR5197909-198002

AM/FM MULTI,MATSUSHITA

sub86011-39086

main86011-39086iRN37,38,47,48;RN32,34,42,44..SR5198002-198108

AM/FM MULTI,MATSUSHITA

86011ACONDENSER, RADIO SETTING

main90980-04011iLN40,RN3#,4#197808-198108

NO.1

main90980-04029iRN3#,4#197808-198108

NO.2

main90980-04038iRN3#,4#198108-198307

NO.2

main90980-04040iLN40,RN3#,4#198108-198307

NO.1

8602

86120RECEIVER ASSY, RADIO

main86120-89106iRN42..HVY;RN44..DLX,SR5;RN44..STD..HVY;LN40,RN3#,42,47,48..(DLX,SR5)..(3QT,HLF)197808-198108

AM/FM

main86120-89108iRN37;RN32,42..SR5197909-198002

AM/FM MULTI,MATSUSHITA

main86120-89111iRN37,38,47,48;RN32,34,42,44..SR5197908-198108

AM/FM MULTI,TEN

main86120-89113iRN37,38,47,48;RN32,34,42,44..SR5198002-198108

AM/FM MULTI,MATSUSHITA

main86120-89116iLN40,RN3#,4#..SR5198108-198307

AM/FM MULTI,ELECTRONIC SEARCH

main86120-89118iLN40,RN3#,4#..DLX,SR5198209-198307

AM/FM MULTIPLEX

main86120-89119iRN44..5F..SR5..CBU198301-198307

AM/FM MULTI,*ELT W/DIG.CLOCK

main86120-90A00iLN40,RN3#,4#..DLX,STD198108-198307

AM

main86120-90A05iLN40,RN3#,4#..DLX,SR5198108-198209

AM/FM MULTIPLEX

sub86120-89118

main86120-95A00iLN40,RN3#,4#..DLX,STD197808-198108

AM

86120AKNOB, RADIO RECEIVER SWITCH

main86125-12011iRN37,38,47,48;RN32,34,42,44..SR5197908-198108

TEN

main86125-14050iLN40,RN3#,4#..SR5198108-198307

AM/FM MULTI,ELECTRONIC SEARCH

main86125-89101iLN40,RN3#,4#198108-198307

AM,AM/FM MULTI

main86125-95A00iLN40,RN3#,4#197808-198108

MATSUSHITA

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86125-12011iRN37,38,47,48;RN32,34,42,44..SR5197908-198108

TEN

main86125-14050iLN40,RN3#,4#..SR5198108-198307

AM/FM MULTI,ELECTRONIC SEARCH

main86125-89101iLN40,RN3#,4#198108-198307

AM,AM/FM MULTI

main86125-89103iRN44..5F..SR5..CBU198301-198307

AM/FM MULTI,*ELT W/DIG.CLOCK

main86125-95A00iLN40,RN3#,4#197808-198108

MATSUSHITA

86120CKNOB, RADIO RECEIVER TUNING, NO.2

main86124-89104iLN40,RN3#,4#..DLX,STD198108-198307

AM

main86124-95A00iLN40,RN3#,4#197808-198108

MATSUSHITA

86120DKNOB, RADIO RECEIVER TONE

main86124-12010iRN37,38,47,48;RN32,34,42,44..SR5197908-198108

TEN

main86124-89104iLN40,RN3#,4#198108-198307

AM,AM/FM MULTI

main86124-89105iLN40,RN3#,4#..SR5198108-198307

AM/FM MULTI,ELECTRONIC SEARCH

main86124-95A00iLN40,RN3#,4#197808-198108

MATSUSHITA

86211BRACKET, RADIO, NO.1

main86211-89104iLN40,RN3#,4#197808-198108

AM OR AM/FM RADIO

main86211-89104iRN37;RN32,42..SR5198002-198108

AM/FM MULTI RADIO

main86211-89105iRN37;RN32,42..SR5197909-198002

AM/FM MULTI RADIO

main86211-89107iLN40,RN3#,4#198108-198307

AM,AM/FM MULTI

main86211-89107iRN37,38,47,48;RN32,34,42,44..SR5198005-198103

AM/FM MULTI RADIO

9011908063

main90119-08063

9017000167

main90170-00167

9017009167

main90170-09167

9020109351

main90201-09351

9165140616

main91651-40616

9331915008

main93319-15008

15 parts on this diagram · 4 diagrams in section
