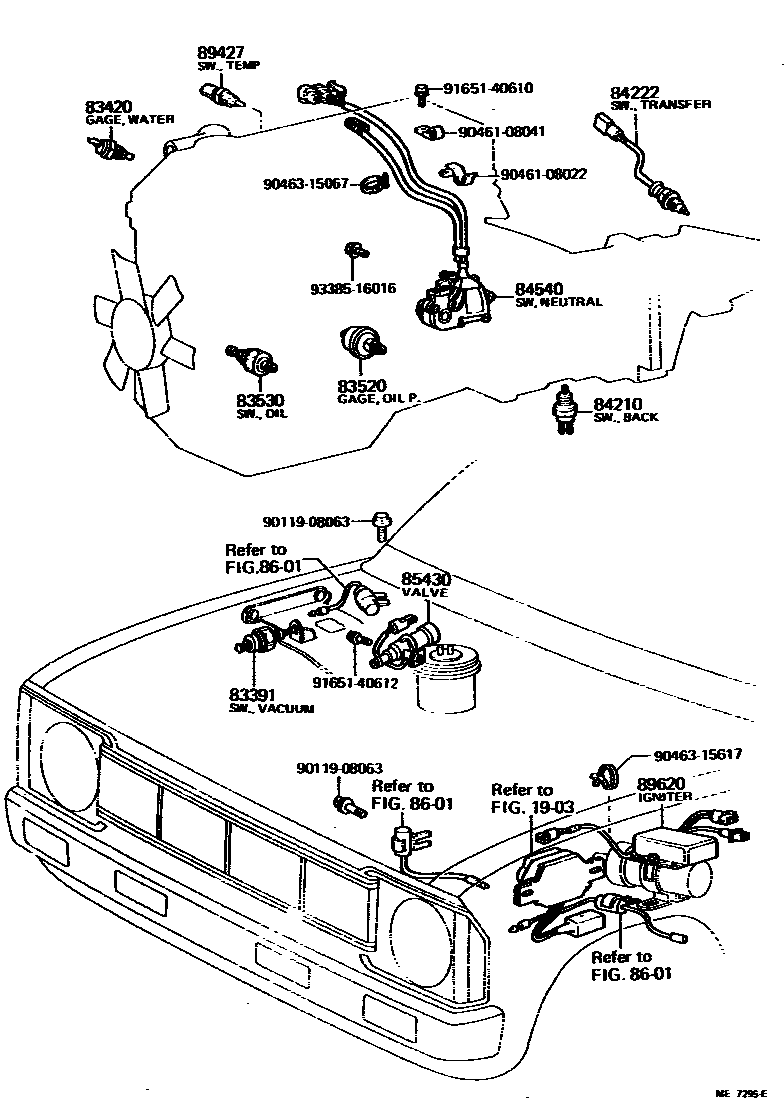

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1903

83391SWITCH, VACUUM

main83391-14010iRN3#,42..USA197808-198008

CALIFORNIA SPEC

main83391-14010iRN42..HVY197908-198307

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iLN40,RN3#,4#197912-198307

DENSO

sub83420-20020

main83420-20011iRN3#,42197808-197912

main83420-20020iLN40,RN3#,4#197912-198307

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-55010iRN37197901-197903

sub83520-55011

main83520-55011iRN34,44..SR5;RN37,38,47,48197903-198307

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iLN40,RN37,47..DLX;RN32,34,38,42,44,48197808-198307

sub83530-14030

84210SWITCH ASSY, BACK-UP LAMP

main84210-10071iRN38,48198008-198206

main84210-14010iRN34,44..4F197808-198307

main84210-26010iRN3#,4#..4F197808-198008

main84210-35020iRN38,48198206-198307

sub84210-16021

main84210-60021iLN40198208-198307

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35011iRN37,38,47,48197901-198202

sub84222-35012

main84222-35012iRN38,48198202-198307

84540SWITCH ASSY, NEUTRAL START

main84540-12090iRN32,42..3FC197808-197908

sub84540-12130

sub90461-12223

sub93385-16025

main84540-12120iRN32,42..3FC197908-198008

sub84540-12121

sub90461-12223

sub93385-16025

main84540-14051iRN34,44..ATM198008-198108

sub84540-22150

main84540-14100iRN34,44..4FC198108-198307

85430VALVE, OUTER VENT CONTROL

main85430-22010iRN3#,42..USA197808-198008

CALIFORNIA SPEC

8601

89427SWITCH, TEMPERATURE DETECT

main89427-14040iRN38,48..USA198208-198307

MARK=13-105,CALIFORNIA SPEC

main89427-14040iRN42..HVY197908-198208

MARK=13-105

89620IGNITER ASSY

main89620-14121iRN3#,42..USA197808-197908

sub89620-35H92

main89620-20101iRN3#,42..CND197808-197908

sub89620-20H92

main89620-35060iRN3#,42..USA197901-197908

W/COIL COVER

sub89620-35H92

main89620-35060iRN32,42..USA197808-197901

COLD SPEC

sub89620-35H92

main89620-35061iRN3#,42..USA197908-198008

main89620-35080iRN3#,42..USA197908-198008

MARK=97,CALIFORNIA SPEC

main89620-35090iRN3#,42..CND197908-198008

IGNITER MARK=96

main89620-35110iRN3#,4#198008-198108

main89620-35111iRN3#,4#198108-198208

sub89620-35112

main89620-35112iRN3#,4#198208-198307

sub89620-35H93

9011908063

main90119-08063

9046108022

main90461-08022

9046108041

main90461-08041

9046315067

main90463-15067

9046315617

main90463-15617

9165140610

main91651-40610

9165140612

main91651-40612

9338516016

main93385-16016

20 parts on this diagram · 7 diagrams in section
