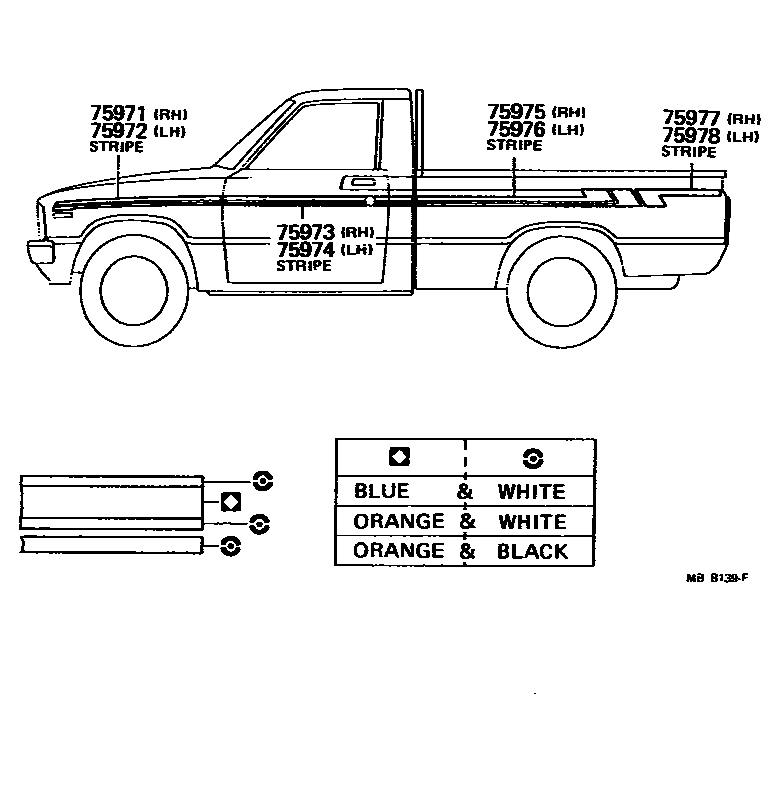

BODY STRIPE

0001 1 0002 1 0003 1 0004 1

75971STRIPE, SIDE, RH NO.1

main75981-89107-04iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

BLUE & WHITE,BLUE

main75981-89107-06iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & BLACK,BROWN

main75981-89107-16iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & WHITE,BROWN

main75981-89109iRN34,44..SR5198108-198208

TWO TONE

main75981-89110iLN40,RN34,44..USA..CBU198108-198307

main75981-95110iRN37,38,47,48197901-198108

WHITE

main75981-95111iRN37,38,47,48197901-198108

RED

main75981-95115iRN38,48..SR5198008-198307

YELLOW & ORANGE

sub75984-95110

main75981-95117iRN38,48..USA..CBU198108-198307

TYPE A

main75981-95118iRN38,48..USA..CBU198108-198307

TYPE B

main75981-95121iRN38,48..SR5198108-198307

GOLD & GOLD

sub75984-95111

75972STRIPE, SIDE, LH NO.1

main75982-89106-04iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

BLUE & WHITE,BLUE

main75982-89106-06iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & BLACK,BROWN

main75982-89106-16iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & WHITE,BROWN

main75982-89108iRN34,44..SR5198108-198208

TWO TONE

main75982-89109iLN40,RN44..HLF..CND198108-198307

main75982-95110iRN37,38,47,48197901-198108

WHITE

main75982-95111iRN37,38,47,48197901-198108

RED

main75982-95115iRN38,48..SR5198008-198307

YELLOW & ORANGE

sub75983-95110

main75982-95117iRN38,48..USA..CBU198108-198307

TYPE A

main75982-95118iRN38,48..USA..CBU198108-198307

TYPE B

main75982-95121iRN38,48..SR5198108-198307

GOLD & GOLD

sub75983-95111

75973STRIPE, SIDE, RH NO.2

main75983-95110iRN38,48..SR5198008-198307

YELLOW & ORANGE

main75983-95111iRN38,48..SR5198108-198307

GOLD & GOLD

main75985-89109-04iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

BLUE & WHITE,BLUE

main75985-89109-06iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & BLACK,BROWN

main75985-89109-16iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & WHITE,BROWN

main75985-89112iRN34,44..SR5198108-198208

TWO TONE

main75985-89114iLN40,RN44..HLF..CND198108-198307

main75985-95110iRN37,38,47,48197901-198108

WHITE

main75985-95111iRN37,38,47,48197901-198108

RED

main75985-95115iRN38,48..USA..CBU198108-198307

TYPE A

main75985-95116iRN38,48..USA..CBU198108-198307

TYPE B

75974STRIPE, CENTER PILLAR, LH NO.2

main75984-95110iRN38,48198008-198307

YELLOW & ORANGE

main75984-95111iRN38,48..SR5198108-198307

GOLD & GOLD

main75986-89109-04iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

BLUE & WHITE,BLUE

main75986-89109-06iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & BLACK,BROWN

main75986-89109-16iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & WHITE,BROWN

main75986-89112iRN34,44..SR5198108-198208

TWO TONE

main75986-89114iLN40,RN44..HLF..CND198108-198307

main75986-95110iRN37,38,47,48197901-198108

WHITE

main75986-95111iRN37,38,47,48197901-198108

RED

main75986-95115iRN38,48..USA..CBU198108-198307

TYPE A

main75986-95116iRN38,48..USA..CBU198108-198307

TYPE B

75975STRIPE, SIDE, RH UPR NO.3

main75985-95113iRN38,48198008-198307

YELLOW & ORANGE

main75985-95119iRN38,48..SR5198108-198307

GOLD & GOLD

main75988-89102iRN34..USA..CBU198108-198307

main75988-89104iLN40,RN44..HLF..CND198108-198307

main75996-89108-04iRN32,34..DLX,SR5197808-198108

BLUE & WHITE,BLUE

main75996-89108-06iRN32,34..DLX,SR5197808-198108

ORANGE & BLACK,BROWN

main75996-89108-16iRN32,34..DLX,SR5197808-198108

ORANGE & WHITE,BROWN

main75996-89109-04iLN40,RN42,44..(DLX,SR5)..HLF197808-198108

BLUE & WHITE,BLUE

main75996-89109-06iLN40,RN42,44..(DLX,SR5)..HLF197808-198108

ORANGE & BLACK,BROWN

main75996-89109-16iLN40,RN42,44..(DLX,SR5)..HLF197808-198108

ORANGE & WHITE,BROWN

main75996-95110iRN37,38197901-198108

WHITE

main75996-95111iRN47,48197901-198108

WHITE

main75996-95112iRN37,38197901-198108

RED

main75996-95114iRN47,48197901-198108

RED

main75996-95118iRN38..USA..CBU198108-198307

TYPE A

main75996-95119iRN38..USA..CBU198108-198307

TYPE B

main75996-95120iRN48..USA..CBU198108-198307

TYPE A

main75996-95121iRN48..USA..CBU198108-198307

TYPE B

main75998-89107iRN34,44..SR5198108-198208

TWO TONE

75976STRIPE, SIDE, LH UPR

main75986-95113iRN38,48..SR5198008-198307

YELLOW & ORANGE

main75986-95119iRN38,48..SR5198108-198307

GOLD & GOLD

main75989-89102iRN34..USA..CBU198108-198307

main75989-89104iLN40,RN44..USA..CBU198108-198307

main75997-89108-04iRN32,34..DLX,SR5197808-198108

BLUE & WHITE,BLUE

main75997-89108-06iRN32,34..DLX,SR5197808-198108

ORANGE & BLACK,BROWN

main75997-89108-16iRN32,34..DLX,SR5197808-198108

ORANGE & WHITE,BROWN

main75997-89109-04iLN40,RN42,44..(DLX,SR5)..HLF197808-198108

BLUE & WHITE,BLUE

main75997-89109-06iLN40,RN42,44..(DLX,SR5)..HLF197808-198108

ORANGE & BLACK,BROWN

main75997-89109-16iLN40,RN42,44..(DLX,SR5)..HLF197808-198108

ORANGE & WHITE,BROWN

main75997-95110iRN37,38197901-198108

WHITE

sub75996-95110

main75997-95111iRN47,48197901-198108

WHITE

sub75996-95111

main75997-95112iRN37,38197901-198108

RED

sub75996-95112

main75997-95114iRN47,48197901-198108

RED

sub75996-95114

main75997-95118iRN38..USA..CBU198108-198307

TYPE A

main75997-95119iRN38..USA..CBU198108-198307

TYPE B

main75997-95120iRN48..USA..CBU198108-198307

TYPE A

main75997-95121iRN48..USA..CBU198108-198307

TYPE B

main75999-89107iRN34,44..SR5198108-198208

TWO TONE

75977STRIPE, SIDE, RH NO.4

main75991-89101iRN34,44..SR5198108-198208

TWO TONE

main75996-89110-04iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

BLUE & WHITE,BLUE

main75996-89110-06iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & BLACK,BROWN

main75996-89110-16iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & WHITE,BROWN

main75998-89103iRN34..USA..CBU198108-198307

main75998-89106iLN40,RN44..HLF..CND198108-198307

75978STRIPE, SIDE, LH NO.4

main75992-89101iRN34,44..SR5198108-198208

TWO TONE

main75997-89110-04iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

BLUE & WHITE,BLUE

main75997-89110-06iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & BLACK,BROWN

main75997-89110-16iLN40,RN32,34,42,44..(DLX,SR5)..HLF197808-198108

ORANGE & WHITE,BROWN

main75999-89103iRN34..USA..CBU198108-198307

main75999-89106iLN40,RN44..HLF..CND198108-198307

8 parts on this diagram · 4 diagrams in section
