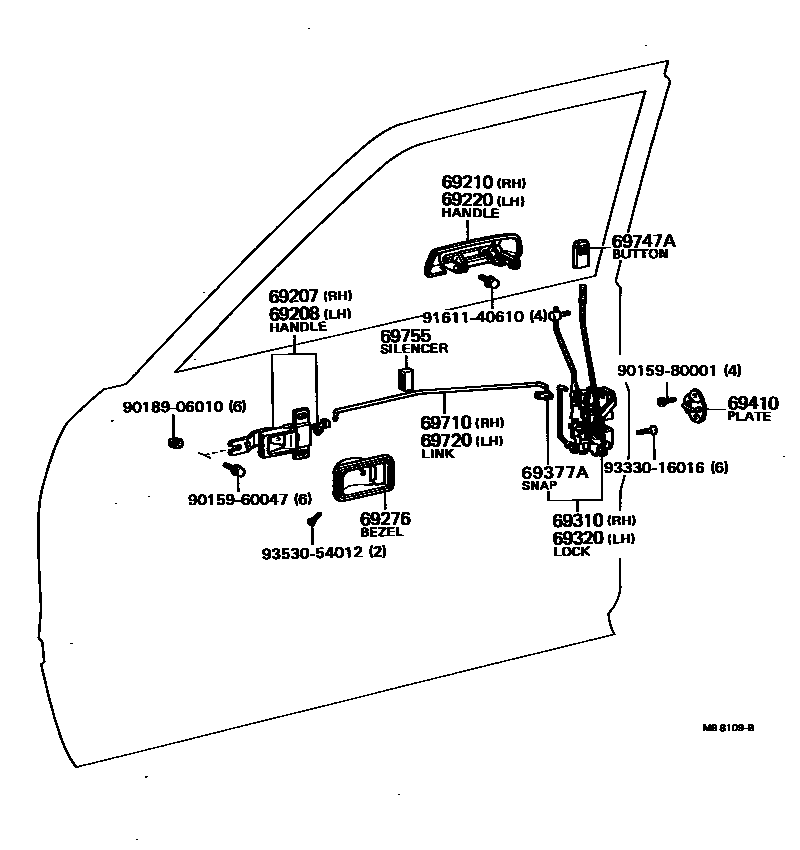

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
BROWN,BROWN
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377ASNAP, BACK DOOR UPPER LOCK ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
9015960047
main90159-60047
9015980001
main90159-80001
9018906010
main90189-06010
9161140610
main91611-40610
9333016016
main93330-16016
9353054012
main93530-54012
19 parts on this diagram · 1 diagram in section
