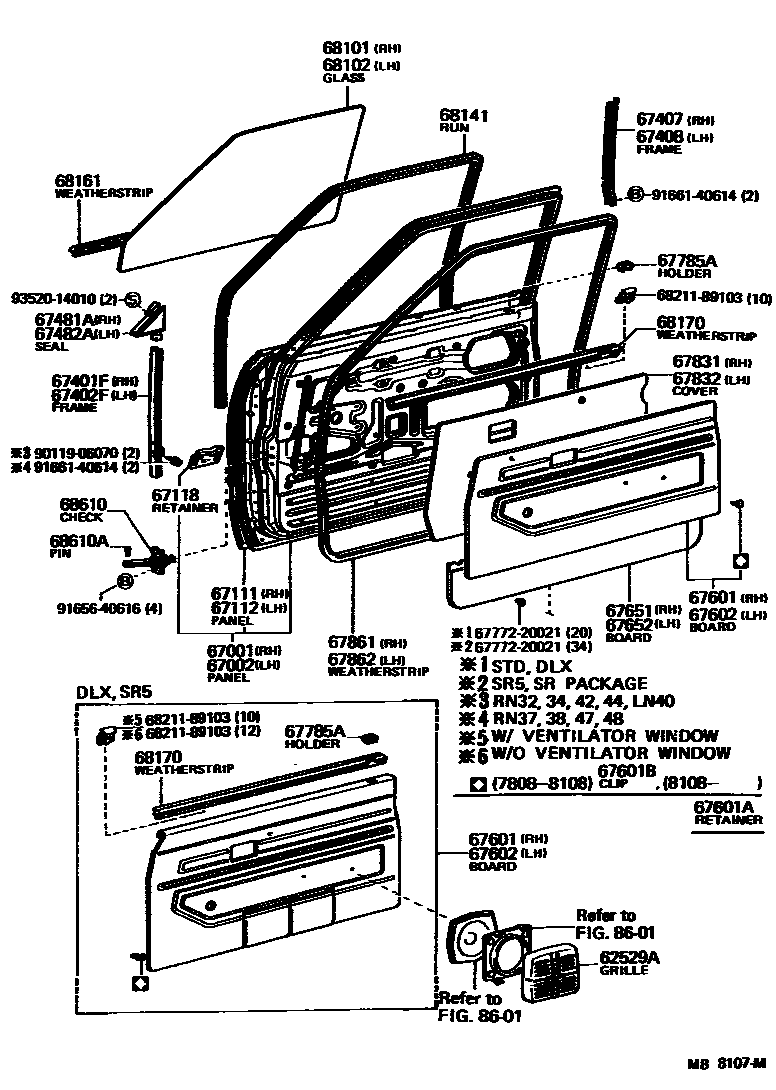

FRONT DOOR PANEL & GLASS

62529AGRILLE, SPEAKER

main62529-89101-01×2iLN40,RN3#,4#197909-198307

AM/FM MULTI&TAPE PLAYER,BLACK,BLACK

main62529-89101-05×2iLN40,RN3#,4#197909-198307

AM/FM MULTI&TAPE PLAYER,BEIGE,BEIGE

main62529-89101-06×2iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN,BROWN

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-89113iRN3#,42..DLX,STD197808-198008

sub67001-89121

main67001-89114iRN32,42..SR5197808-198008

main67001-89118iLN40,RN3#,4#..DLX,STD198008-198307

main67001-89119iRN38,48198008-198108

SR PACKAGE

main67001-89124iLN40,RN34,44..SR5198108-198307

W/MIRROR

main67001-89125iLN40,RN3#,4#..SR5198108-198307

W/MIRROR & *VW

main67001-95112iRN38,48..SR5198108-198307

W/MIRROR

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-89115iRN42..HVY197908-198008

sub67002-89123

main67002-89117iRN32,42..DLX,STD197808-197901

main67002-89118iRN3#,42..(DLX,STD)..(3QT,HLF)197908-198008

W/*VW

sub67002-89124

main67002-89119iRN32,42..SR5197908-198008

W/*VW

sub67002-89125

main67002-89120iLN40,RN34,44..(DLX,STD)..(3QT,HLF)198008-198307

main67002-89121iLN40,RN34,44..SR5198008-198307

main67002-89122iRN32,42..SR5197808-198008

main67002-89126iLN40,RN3#,4#..(DLX,STD)..(3QT,HLF)198008-198307

W/*VW

main67002-89127iRN38,48198008-198108

SR PACKAGE,W/*VW

main67002-89128iRN44..HVY198008-198307

main67002-95111iRN3#,42..(DLX,STD)..(3QT,HLF)197901-198008

main67002-95112iRN37197901-198008

SR PACKAGE

main67002-95113iRN38,48..DLX198108-198307

main67002-95114iRN38,48198008-198108

SR PACKAGE

67111PANEL, FRONT DOOR, OUTER RH

main67111-89106iRN3#,42197808-198008

main67111-89109iLN40,RN3#,4#198008-198307

sub67111-92300

67112PANEL, FRONT DOOR, OUTER LH

main67112-89108iRN3#,42197808-198008

main67112-89113iLN40,RN3#,4#198008-198307

sub67112-92300

67118RETAINER, OUTER MIRROR

main67118-89101iLN40,RN34,44..SR5198108-198307

RH

main67118-89102iLN40,RN3#,4#..SR5198108-198307

RH,W/*VW

main67118-95111iRN38,48..SR5198108-198307

RH

main67119-89101iLN40,RN32,34,42,44..3QT,HLF197808-198307

LH

main67119-89102iLN40,RN3#,4#..3QT,HLF197808-198307

LH,W/*VW

main67119-95111iRN37,38,47,48197901-198307

LH

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-89106iLN40,RN3#,4#197808-198307

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-89106iLN40,RN3#,4#197808-198307

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67433-89101iLN40,RN3#,4#197808-198307

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67434-89101iLN40,RN3#,4#197808-198307

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-89105iLN40,RN3#,4#197808-198307

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-89105iLN40,RN3#,4#197808-198307

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-89115-01iRN32,34,42,44..STD197808-198108

BLACK,BLACK

main67610-89115-04iRN32,34,42,44..STD197808-198108

BLUE,BLUE

main67610-89115-05iRN32,34,42,44..STD197808-198108

BEIGE,BEIGE

main67610-89116-01iLN40,RN3#,4#..DLX197808-198108

BLACK,BLACK

sub67610-89117

main67610-89116-04iLN40,RN3#,4#..DLX197808-198108

BLUE,BLUE

sub67610-89117

main67610-89116-05iLN40,RN3#,4#..DLX197808-198108

BEIGE,BEIGE

sub67610-89117

main67610-89118-01iLN40,RN3#,4#..DLX197908-198108

W/*VW,BLACK,BLACK

main67610-89118-04iLN40,RN3#,4#..DLX197908-198108

W/*VW,BLUE,BLUE

main67610-89118-05iLN40,RN3#,4#..DLX197908-198108

W/*VW,BEIGE,BEIGE

main67610-89119-01iRN32,34,42,44..SR5197808-198108

BLACK,BLACK

sub67610-89120

main67610-89119-04iRN37,38,47,48197901-198108

SR PACKAGE,BLUE,BLUE

sub67610-89120

main67610-89119-05iRN37,38,47,48197901-198108

SR PACKAGE,BEIGE,BEIGE

sub67610-89120

main67610-89121-01iRN32,34,42,44..SR5197908-198108

SR PACKAGE,W/*VW,BLACK,BLACK

sub67610-89122

main67610-89121-04iRN32,34,42,44..SR5197908-198108

SR PACKAGE,W/*VW,BLUE,BLUE

sub67610-89122

main67610-89121-05iRN32,34,42,44..SR5197908-198108

SR PACKAGE,W/*VW,BEIGE,BEIGE

sub67610-89122

main67610-89130-01iLN40,RN3#,4#..DLX198108-198307

W/O *VW,BLACK,BLACK

main67610-89130-04iLN40,RN3#,4#..DLX198108-198307

W/O *VW,BLUE,BLUE

main67610-89130-06iLN40,RN3#,4#..DLX198108-198307

W/O *VW,BROWN,BROWN

main67610-89133-01iLN40,RN3#,4#..DLX198108-198307

W/*VW,BLACK,BLACK

main67610-89133-04iLN40,RN3#,4#..DLX198108-198307

W/*VW,BLUE,BLUE

main67610-89133-06iLN40,RN3#,4#..DLX198108-198307

W/*VW,BROWN,BROWN

main67610-89135-01iLN40,RN3#,4#..SR5198108-198307

W/O *VW,BLACK,BLACK

main67610-89135-04iLN40,RN3#,4#..SR5198108-198307

W/O *VW,BLUE,BLUE

main67610-89135-06iLN40,RN3#,4#..SR5198108-198307

W/O *VW,BROWN,BROWN

main67610-89139-01iLN40,RN3#,4#..SR5198108-198307

W/*VW,BLACK,BLACK

sub67610-89141

main67610-89139-04iLN40,RN3#,4#..SR5198108-198307

W/*VW,BLUE,BLUE

sub67610-89141

main67610-89139-06iLN40,RN3#,4#..SR5198108-198307

W/*VW,BROWN,BROWN

sub67610-89141

main67610-89144-01iRN34,44..STD198108-198307

BLACK,BLACK

main67610-89144-04iRN34,44..STD198108-198307

BLUE,BLUE

main67610-89144-05iRN34,44..STD198108-198307

BEIGE,BEIGE

main67610-89154iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-89101×20iLN40,RN3#,4#..SR5198108-198307

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-11002×18iLN40,RN3#,4#197808-198108

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-89114-01iRN32,34,42,44..STD197808-198108

BLACK,BLACK

main67620-89114-04iRN32,34,42,44..STD197808-198108

BLUE,BLUE

main67620-89114-05iRN32,34,42,44..STD197808-198108

BEIGE,BEIGE

main67620-89115-01iLN40,RN3#,4#..DLX197808-198108

BLACK,BLACK

main67620-89115-04iLN40,RN3#,4#..DLX197808-198108

BLUE,BLUE

main67620-89115-05iLN40,RN3#,4#..DLX197808-198108

BEIGE,BEIGE

main67620-89116-01iLN40,RN3#,4#..DLX197908-198108

W/*VW,BLACK,BLACK

main67620-89116-04iLN40,RN3#,4#..DLX197908-198108

W/*VW,BLUE,BLUE

main67620-89116-05iLN40,RN3#,4#..DLX197908-198108

W/*VW,BEIGE,BEIGE

main67620-89118-01iRN32,34,42,44..SR5197808-198108

BLACK,BLACK

main67620-89118-04iRN32,34,42,44..SR5197808-198108

BLUE,BLUE

main67620-89118-05iRN32,34,42,44..SR5197808-198108

BEIGE,BEIGE

main67620-89120-01iRN32,34,42,44..SR5197908-198108

SR PACKAGE,W/*VW,BLACK,BLACK

main67620-89120-04iRN32,34,42,44..SR5197908-198108

SR PACKAGE,W/*VW,BLUE,BLUE

main67620-89120-05iRN32,34,42,44..SR5197908-198108

SR PACKAGE,W/*VW,BEIGE,BEIGE

main67620-89128-01iLN40,RN3#,4#..DLX198108-198307

W/O *VW,BLACK,BLACK

main67620-89128-04iLN40,RN3#,4#..DLX198108-198307

W/O *VW,BLUE,BLUE

main67620-89128-06iLN40,RN3#,4#..DLX198108-198307

W/O *VW,BROWN,BROWN

main67620-89130-01iLN40,RN3#,4#..DLX198108-198307

W/*VW,BLACK,BLACK

main67620-89130-04iLN40,RN3#,4#..DLX198108-198307

W/*VW,BLUE,BLUE

main67620-89130-06iLN40,RN3#,4#..DLX198108-198307

W/*VW,BROWN,BROWN

main67620-89134-01iLN40,RN3#,4#..SR5198108-198307

W/O *VW,BLACK,BLACK

main67620-89134-04iLN40,RN3#,4#..SR5198108-198307

W/O *VW,BLUE,BLUE

main67620-89134-06iLN40,RN3#,4#..SR5198108-198307

W/O *VW,BROWN,BROWN

main67620-89138-01iLN40,RN3#,4#..SR5198108-198307

W/*VW,BLACK,BLACK

main67620-89138-04iLN40,RN3#,4#..SR5198108-198307

W/*VW,BLUE,BLUE

main67620-89138-06iLN40,RN3#,4#..SR5198108-198307

W/*VW,BROWN,BROWN

main67620-89140-01iRN34,44..STD198108-198307

BLACK,BLACK

main67620-89140-04iRN34,44..STD198108-198307

BLUE,BLUE

main67620-89140-05iRN34,44..STD198108-198307

BEIGE,BEIGE

main67620-89142iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN

67651BOARD, FRONT DOOR TRIM, LOWER RH

main67650-89102-01iRN32,42..SR5197808-198008

BLACK,BLACK

main67650-89102-04iRN32,42..SR5197808-198008

BLUE,BLUE

main67650-89102-05iRN32,42..SR5197808-198008

BEIGE,BEIGE

main67650-89103-01iRN38,48198008-198108

SR PACKAGE,BLACK,BLACK

main67650-89103-04iRN38,48198008-198108

BLUE,BLUE

main67650-89103-05iRN38,48198008-198108

SR PACKAGE,BEIGE,BEIGE

main67650-89104iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN

67652BOARD, FRONT DOOR TRIM, LOWER LH

main67660-89102-01iRN37197901-198008

SR PACKAGE,BLACK,BLACK

main67660-89102-04iRN37197901-198008

SR PACKAGE,BLUE,BLUE

main67660-89102-05iRN32,42..SR5197808-198008

BEIGE,BEIGE

main67660-89103-01iRN38,48198008-198108

SR PACKAGE,BLACK,BLACK

main67660-89103-04iRN38,48198008-198108

BLUE,BLUE

main67660-89103-05iRN38,48198008-198108

SR PACKAGE,BEIGE,BEIGE

main67660-89104iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,BROWN

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-20030-01×2iRN32,34,42,44..STD197808-198012

BLACK,BLACK

main69751-20030-04×2iRN32,34,42,44..STD197808-198012

BLUE,BLUE

main69751-20030-05×2iRN32,34,42,44..STD197808-198012

BEIGE,BEIGE

main69751-20031-01×2iRN34,44..STD198012-198307

BLACK,BLACK

main69751-20031-04×2iRN34,44..STD198012-198307

BLUE,BLUE

main69751-20031-05×2iRN34,44..STD198012-198307

BEIGE,BEIGE

main69751-20040×2iLN40,RN3#,4#..DLX,SR5197808-198307

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-89104iLN40,RN32,34,42,44197808-198108

main67831-95111iRN37,38,47,48..DLX197901-198307

W/O STEREO

main67831-95113iRN37,38,47,48197910-198108

W/STEREO

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-89104iLN40,RN32,34,42,44197808-198108

main67831-95111iRN37,38,47,48..DLX197901-198307

W/O STEREO

main67831-95113iLN40,RN3#,4#..DLX,SR5198108-198307

W/STEREO

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-89104iLN40,RN3#,4#197808-198307

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-89103iLN40,RN3#,4#197808-198307

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-89107iLN40,RN3#,4#..DLX,STD197808-198307

*TEM,T=4.0,W/O *VW,*TEM,T=4.0

main68111-89108iLN40,RN3#,4#..DLX,SR5197808-198307

*TT,T=4.0,W/O *VW,*TT,T=4.0

main68111-89109iLN40,RN3#,4#..DLX,SR5197908-198307

*TT,T=4.0,W/*VW,*TT,T=4.0

main68111-89110iLN40,RN3#,4#..DLX,STD197908-198307

*TEM,T=4.0,W/*VW,*TEM,T=4.0

main68111-89111iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-89106iLN40,RN3#,4#..DLX,STD197808-198307

*TEM,T=4.0,W/O *VW,*TEM,T=4.0

main68112-89107iRN34,44..4F..USA..CBU198304-198307

*TT,T=4.0,W/O *VW,*TT,T=4.0

main68112-89108iLN40,RN3#,4#..DLX,SR5197908-198307

*TT,T=4.0,W/*VW,*TT,T=4.0

main68112-89109iLN40,RN3#,4#..DLX,STD197908-198307

*TEM,T=4.0,W/*VW,*TEM,T=4.0

main68112-89110iRN44..5F..SR5198301-198307

MOJAVE PACKAGE,*TEM,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-89105×2iLN40,RN3#,4#197808-198307

W/O *VW

main68141-89106×2iLN40,RN3#,4#197908-198307

W/*VW

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-89104×2iLN40,RN3#,4#197808-198307

W/O *VW

main68160-89105×2iLN40,RN3#,4#197908-198307

W/*VW

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-89104iRN32,34,42,44..STD197808-198307

RH,W/O *VW

main68170-89105iRN32,34,42,44..STD197808-198307

LH,W/O *VW

main68170-89106iRN32,34,42,44..STD197908-198307

RH,W/*VW

main68170-89107iRN32,34,42,44..STD197908-198307

LH,W/*VW

main68170-89108iLN40,RN3#,4#..DLX,SR5197808-198307

RH,W/O *VW

main68170-89109iLN40,RN3#,4#..DLX,SR5197908-198307

RH,W/*VW

main68220-89101iLN40,RN3#,4#..DLX,SR5197808-198307

LH,W/O *VW

main68220-89102iLN40,RN3#,4#..DLX,SR5197908-198307

LH,W/*VW

68610CHECK ASSY, FRONT DOOR

main68610-89101×2iLN40,RN3#,4#197808-198307

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010×2iLN40,RN3#,4#197808-198307

sub68617-12010

8601

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

6821189103CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)

main68211-89103

9011906070

main90119-06070

9165640616

main91656-40616

9166140614

main91661-40614

9352014010

main93520-14010

37 parts on this diagram · 1 diagram in section
