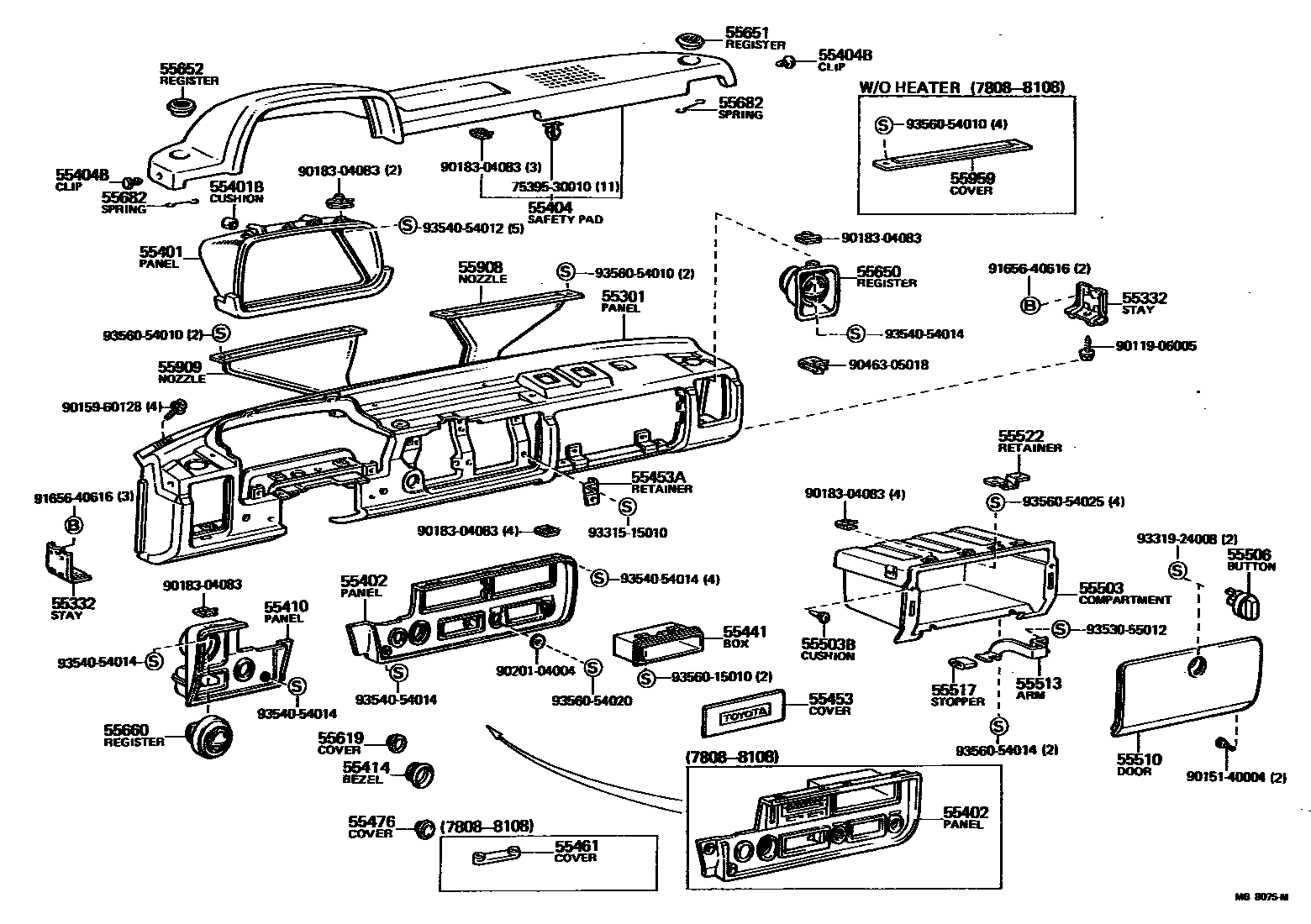

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-89114iRN3#,42197808-198008

main55301-89116iLN40,RN3#,4#198008-198108

main55301-89119iLN40,RN3#,4#198108-198307

55332STAY, INSTRUMENT PANEL

main55326-89101iLN40,RN3#,4#197808-198307

RH

main55327-89102iLN40,RN3#,4#197808-198307

LH

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-89103-01iLN40,RN3#,4#197808-198307

BLACK,BLACK

main55411-89103-04iLN40,RN3#,4#197808-198307

BLUE,BLUE

main55411-89103-05iLN40,RN3#,4#197808-198108

BEIGE,BEIGE

main55411-89103-06iLN40,RN3#,4#198108-198307

BROWN,BROWN

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-89101iLN40,RN3#,4#197808-198307

55402PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER

main55405-89105iRN37197901-198008

SR PACKAGE,WOODGRAIN

sub55405-89143

sub55539-89102

main55405-89105iRN32,42..SR5197808-198008

WOODGRAIN

sub55405-89143

sub55539-89102

main55405-89125iRN34,44..STD198008-198108

W/HEATER

main55405-89133iLN40,RN34,44..DLX198008-198108

W/HEATER

sub55405-89125

main55405-89138iRN34,44..SR5198008-198108

WOODGRAIN

main55405-89143iRN38,48198008-198108

SR PACKAGE,WOODGRAIN

main55405-89143iRN38,48198008-198108

WOODGRAIN,W/HEATER

main55405-89151iLN40,RN3#,4#..SR5198108-198307

WOODGRAIN

sub55434-89136

main55434-89106iRN32,42..STD..USA197808-198008

W/O HEATER

sub55434-89125

sub55539-89102

main55434-89107iRN32,42..STD197808-198008

W/HEATER

sub55405-89125

sub55539-89102

main55434-89109iRN3#,42..DLX197808-198008

sub55405-89133

sub55539-89102

main55434-89125iRN34,44..STD198008-198108

W/O HEATER

main55434-89127iLN40,RN3#,4#..DLX198008-198108

sub55434-89125

main55434-89135iRN34,44..STD198108-198307

main55434-89136iLN40,RN3#,4#..DLX198108-198307

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-89103-01iRN3#,42..USA197808-198002

W/O SIDE DEFROSTER,BLACK,BLACK

sub55401-89107

main55401-89103-04iRN3#,42..USA197808-198002

W/O SIDE DEFROSTER,BLUE,BLUE

sub55401-89107

main55401-89103-05iRN3#,42..USA197808-198002

W/O SIDE DEFROSTER,BEIGE,BEIGE

sub55401-89107

main55401-89104-01iRN3#,42197808-198002

W/SIDE DEFROSTER,BLACK,BLACK

sub55401-89108

main55401-89104-04iRN3#,42197808-198002

W/SIDE DEFROSTER,BLUE,BLUE

sub55401-89108

main55401-89104-05iRN3#,42197808-198002

W/SIDE DEFROSTER,BEIGE,BEIGE

sub55401-89108

main55401-89107-01iLN40,RN3#,4#..USA198002-198307

W/O SIDE DEFROSTER,BLACK,BLACK

main55401-89107-04iLN40,RN3#,4#..USA198002-198307

W/O SIDE DEFROSTER,BLUE,BLUE

main55401-89107-05iLN40,RN3#,4#..USA198002-198108

W/O SIDE DEFROSTER,BEIGE,BEIGE

main55401-89107-06iLN40,RN3#,4#..USA198108-198307

W/O SIDE DEFROSTER,BROWN,BROWN

main55401-89108-01iLN40,RN3#,4#198002-198307

W/SIDE DEFROSTER,BLACK,BLACK

main55401-89108-04iLN40,RN3#,4#198002-198307

W/SIDE DEFROSTER,BLUE,BLUE

main55401-89108-05iLN40,RN3#,4#198002-198108

W/SIDE DEFROSTER,BEIGE,BEIGE

main55401-89108-06iLN40,RN3#,4#198108-198307

W/SIDE DEFROSTER,BROWN,BROWN

55404BCLIP, SAFETY PAD SET

main55466-89101-01iLN40,RN3#,4#197808-198307

BLACK,BLACK

main55466-89101-04iLN40,RN3#,4#197808-198307

BLUE,BLUE

main55466-89101-05iLN40,RN3#,4#197808-198108

BEIGE,BEIGE

main55466-89101-06iLN40,RN3#,4#198108-198307

BROWN,BROWN

55410PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-89110-03iLN40,RN3#,4#..DLX,STD197808-198108

D-SILVER-M,GRAY

sub55404-89110

main55404-89110-13iLN40,RN3#,4#..DLX,STD198108-198307

D-GRAY-M,GRAY

sub55404-89110

main55404-89111iRN37,38,47,48197901-198108

SR PACKAGE,WOODGRAIN

main55404-89111iRN32,34,42,44..SR5197808-198307

WOODGRAIN

55414BEZEL, CIGAR LIGHTER HOLE

main55477-89101iLN40,RN3#,4#197808-198307

55441BOX, INSTRUMENT PANEL

main55441-89104iLN40,RN3#,4#198108-198307

55453COVER, RADIO TUNER OPENING

main55522-89101-03iLN40,RN3#,4#..DLX,STD197808-198108

GRAY,GRAY

sub55522-89101

main55522-89102-03iLN40,RN3#,4#..DLX,STD198108-198201

DARK GRAY-M,GRAY

sub55522-89102

main55522-89103-03iLN40,RN3#,4#..DLX,STD198201-198307

DARK GRAY-M,GRAY

sub55522-89103

55453ARETAINER, RADIO TUNER OPENING, NO.1

main55437-89102iLN40,RN3#,4#..DLX,STD197808-198108

main55437-89104iLN40,RN3#,4#..DLX,STD198108-198307

55461COVER, HEATER CONTROL HOLE

main55535-89101-03iRN3#,4#..USA197808-198108

GRAY,GRAY

sub55535-89101

55476COVER, CIGARETTE LIGHTER HOLE

main55532-89102iRN37,38,47,48197808-198307

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-89101iLN40,RN3#,4#197808-198307

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-04006iRN3#,42197808-197903

main90541-04012iLN40,RN3#,4#197903-198307

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-12020iLN40,RN3#,4#197808-198307

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-89104-01iLN40,RN34,44197808-198307

BLACK,BLACK

sub55501-89104

main55501-89104-04iLN40,RN3#,4#197808-198307

BLUE,BLUE

sub55501-89104

main55501-89104-05iLN40,RN3#,4#197808-198108

BEIGE,BEIGE

sub55501-89104

main55501-89104-06iLN40,RN34,44198108-198307

BROWN,BROWN

sub55501-89104

main55501-95117-01iRN38,48198307-198307

BLACK,BLACK

sub55501-89104

main55501-95117-04iRN38,48198307-198307

BLUE,BLUE

sub55501-89104

main55501-95117-06iRN38,48198307-198307

BROWN,BROWN

sub55501-89104

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-89102iLN40,RN3#,4#197808-198307

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-89104iLN40,RN3#,4#197808-198307

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-89102iLN40,RN3#,4#197808-198307

55619COVER, SWITCH HOLE

main55539-89102iRN3#,4#..3FC,4F,5F198008-198307

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-89101-03iLN40,RN3#,4#..DLX,STD197808-198108

DARK GRAY-M,GRAY

sub55650-89101

main55650-89101-06iLN40,RN32,34,38,42,44,48..SR5197808-198307

BROWN,BROWN

sub55650-89101

main55650-89101-13iLN40,RN3#,4#..DLX,STD198108-198307

DARK GRAY-M,GRAY

sub55650-89101

55651REGISTER, INSTRUMENT PANEL, NO.1

main55671-89112-01iLN40,RN3#,4#197808-198307

BLACK,BLACK

sub55671-89112

main55671-89112-04iLN40,RN3#,4#197808-198307

BLUE,BLUE

sub55671-89112

main55671-89112-05iLN40,RN3#,4#197808-198108

BEIGE,BEIGE

sub55671-89112

main55671-89112-06iLN40,RN3#,4#198108-198307

BROWN,BROWN

sub55671-89112

55652REGISTER, INSTRUMENT PANEL, NO.2

main55671-89113-01iLN40,RN3#,4#197808-198307

BLACK,BLACK

sub55671-89113

main55671-89113-04iLN40,RN3#,4#197808-198307

BLUE,BLUE

sub55671-89113

main55671-89113-05iLN40,RN3#,4#197808-198108

BEIGE,BEIGE

sub55671-89113

main55671-89113-06iLN40,RN3#,4#198108-198307

BROWN,BROWN

sub55671-89113

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-89103iLN40,RN3#,4#197808-198307

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55686-89101iLN40,RN3#,4#197808-198307

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-89101iLN40,RN3#,4#197808-198307

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-89101iLN40,RN3#,4#197808-198307

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-89101iLN40,RN3#,4#..USA197808-198108

7539530010CLIP, BACK DOOR MOULDING, NO.1

main75395-30010

9011906005

main90119-06005

9015140004

main90151-40004

9015960128

main90159-60128

9018304083

main90183-04083

9020104004

main90201-04004

9046305018

main90463-05018

9165640616

main91656-40616

9331515010

main93315-15010

9331924008

main93319-24008

9353055012

main93530-55012

9354054012

main93540-54012

9354054014

main93540-54014

9356015010

main93560-15010

9356054010

main93560-54010

9356054014

main93560-54014

9356054020

main93560-54020

9356054025

main93560-54025

48 parts on this diagram · 1 diagram in section
