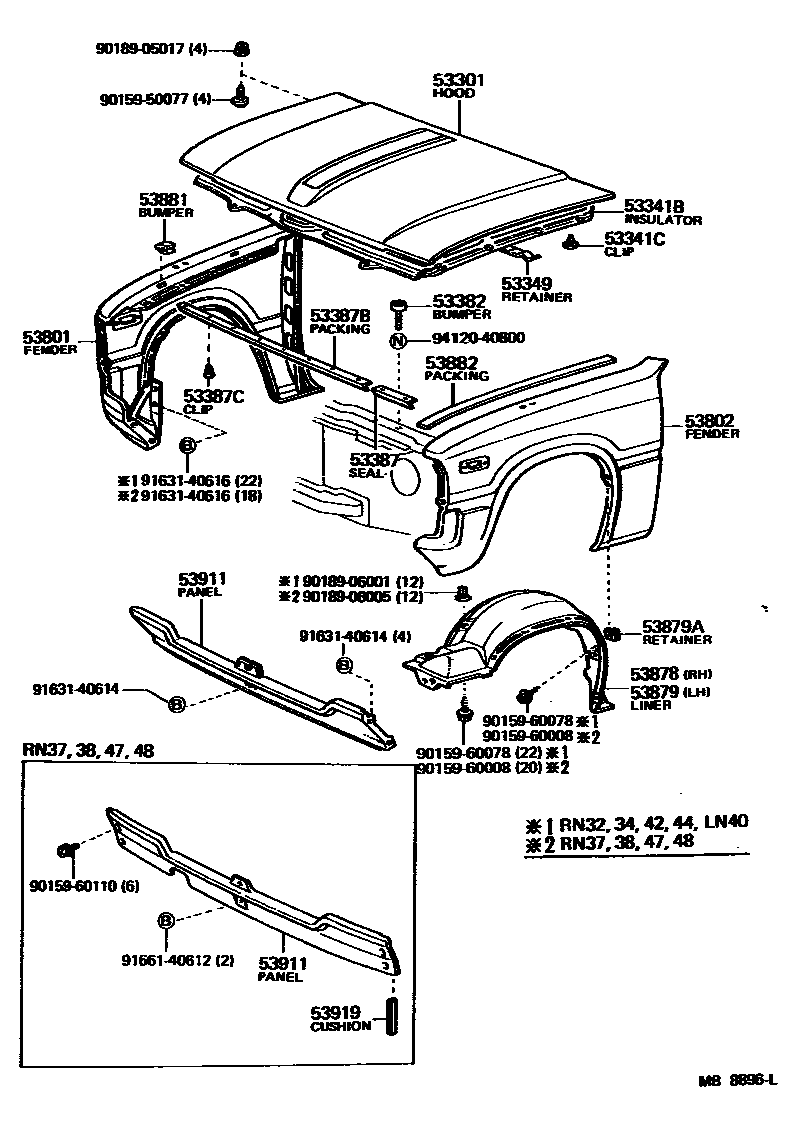

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-89115iLN40,RN3#,4#197808-198307

53341BINSULATOR, HOOD

main53341-89101iLN40198101-198307

53341CCLIP(FOR HOOD INSULATOR)

main90467-09004iLN40198101-198307

53349RETAINER, HOOD SILENCER

main53349-89101iLN40198101-198307

53382BUMPER, HOOD, FRONT

main53382-20011iLN40,RN3#,4#197808-198307

sub53382-90A00

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-89102iLN40198101-198307

53387BPACKING, HOOD FRONT SEAL

main88893-89113iLN40,RN3#,4#197908-198307

53387CCLIP, HOOD FRONT SEAL

main90467-08011iRN3#,4#197908-198307

53801FENDER SUB-ASSY, FRONT RH

main53801-89145iLN40,RN32,34,42,44197808-198108

main53801-89152iLN40,RN34,44198108-198307

main53801-89164iRN44..5F..SR5198301-198307

MOJAVE PACKAGE

main53801-95114iRN37,38,47,48197901-198307

sub53801-92301

53802FENDER SUB-ASSY, FRONT LH

main53802-89139iLN40,RN32,34,42,44197808-198108

sub53802-89157

main53802-89145iLN40,RN34,44198108-198307

sub53802-89157

main53802-89157iRN44..5F..SR5198301-198307

MOJAVE PACKAGE

main53802-95114iRN37,38,47,48197901-198307

sub53802-92301

53878LINER, FRONT FENDER, RH

main53875-89102iLN40,RN32,34,42,44197808-198307

main53875-95110iRN37,38,47,48197901-198108

sub53875-95112

main53875-95112iRN38,48198108-198307

53879LINER, FRONT FENDER, LH

main53876-89102iLN40,RN32,34,42,44197808-198307

main53876-95110iRN37,38,47,48197901-198108

sub53876-95112

main53876-95112iRN38,48198108-198307

53879ARETAINER, FRONT FENDER LINER

main53879-22010iLN40,RN32,34,42,44197808-198307

53881BUMPER, FENDER TO HOOD

main53384-89101iLN40,RN3#,4#197808-198307

53882PACKING, FRONT FENDER MAIN

main53882-89103iLN40,RN3#,4#197808-198307

53911PANEL, FRONT VALANCE

main53161-95112iRN37,38,47,48197901-198307

main53911-89104iLN40,RN32,34,42,44197808-198108

main53911-89105iLN40,RN34,44198108-198307

53919CUSHION, VALANCE PANEL

main53919-95110iRN37,38,47,48197901-198307

9015950077

main90159-50077

9015960008

main90159-60008

9015960078

main90159-60078

9015960110

main90159-60110

9018905017

main90189-05017

9018906001

main90189-06001

9018906005

main90189-06005

9163140614

main91631-40614

9163140616

main91631-40616

9166140612

main91661-40612

9412040800

main94120-40800

28 parts on this diagram · 1 diagram in section
