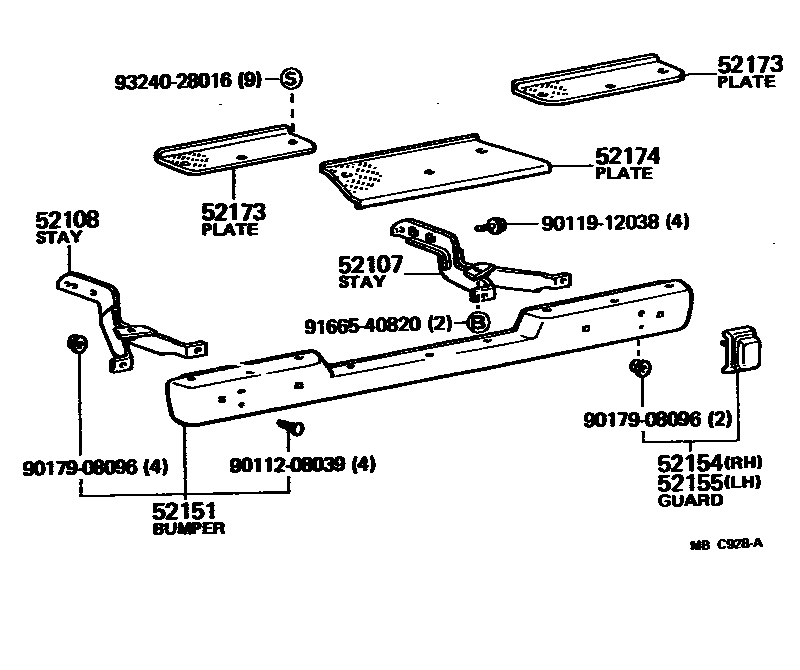

REAR BUMPER & BUMPER STAY

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-89106iRN34..USA..CBU198108-198307

main52015-89107iLN40,RN44..USA..CBU198108-198307

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-89106iRN34..USA..CBU198108-198307

main52016-89107iLN40,RN44..USA..CBU198108-198307

52151BUMPER ASSY, REAR

main52150-39025iLN40,RN34,44..USA..CBU198108-198307

sub52150-89104

52154GUARD, BUMPER, REAR RH

main52405-39015iLN40,RN34,44..USA..CBU198108-198307

52155GUARD, BUMPER, REAR LH

main52405-39015iLN40,RN34,44..USA..CBU198108-198307

52173PLATE, REAR BUMPER, SIDE

main52179-89105iLN40,RN34,44..USA..CBU198108-198307

52174PLATE, REAR BUMPER, CENTER

main52179-89106iLN40,RN34,44..USA..CBU198108-198307

9011208039

main90112-08039

9011912038

main90119-12038

9017908096

main90179-08096

9166540820

main91665-40820

9324028016

main93240-28016

12 parts on this diagram · 1 diagram in section
