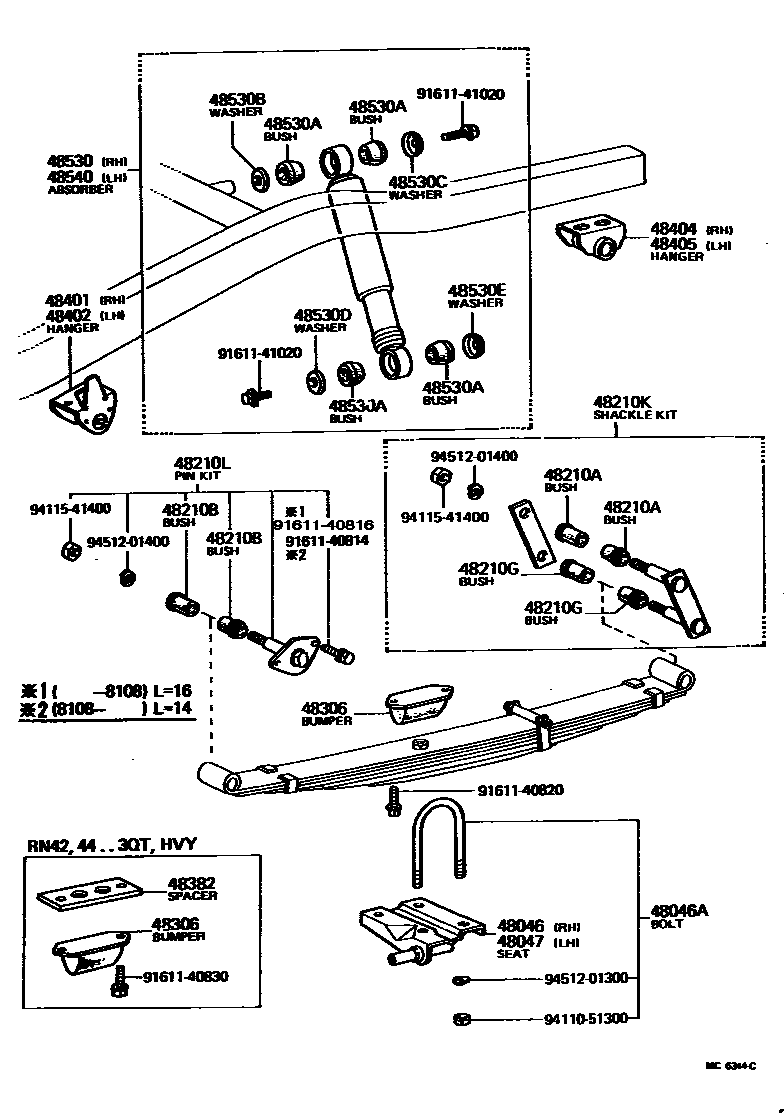

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35040iRN37,38,47,48197901-198307

main48046-35050iLN40,RN32,34,42,44197808-198307

48046ABOLT, U(FOR REAR SPRING)

main90118-13091iRN42,44..HVY197908-198307

sub90117-13082

sub94110-51300

sub94512-01300

main90118-13133iLN40,RN32,34,42,44..HLF197808-198307

sub90118-13217

main90118-13152iRN42,44..3QT197901-198307

sub90118-13218

main90118-14173iRN37,38,47,48197901-198307

sub90117-14007

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-35040iRN37,38,47,48197901-198307

main48047-35050iLN40,RN32,34,42,44197808-198307

48210SPRING ASSY, REAR RH

main48210-35130iLN40,RN42,44..HLF197808-198108

main48210-35140iRN44..(DLX,SR5)..HLF197808-198108

SOFT RIDE

main48210-35141iLN40..SR5198108-198307

SOFT RIDE

main48210-35150iRN42,44..3QT197901-198307

main48210-35180iRN37,38,47,48197901-198307

main48210-35211iRN32,34197904-198108

main48210-35212iRN34198108-198307

main48210-35221iRN32..SR5197904-198108

SOFT RIDE

main48210-35222iRN34..DLX,SR5198108-198307

SOFT RIDE

main48210-35230iRN42,44..HVY197908-198307

main48210-35240iLN40,RN44..HLF198108-198307

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18046iLN40,RN3#,4#197808-198307

48210BBUSH(FOR REAR SPRING PIN)

main90385-18001iLN40,RN3#,4#..HLF197808-198307

main90385-18046iRN42,44..3QT,HVY197901-198108

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046iLN40,RN3#,4#197808-198307

48210KSHACKLE KIT, REAR SPRING

main04483-26010iLN40,RN3#,4#197808-198307

sub04483-35040

48210LPIN KIT, REAR SPRING

main04484-27010iRN37,38,47,48;RN42,44..3QT,HVY197901-198307

sub04482-35030

main04484-27020iLN40,RN32,34,42,44..HLF197808-198108

sub04482-35030

main04484-35050iLN40,RN34,44..HLF198108-198307

48306BUMPER SUB-ASSY, REAR SPRING

main48306-35040iRN37,38,47,48197901-198307

main48341-35020iLN40,RN32,34,42,44197808-198307

48382SPACER, BUMPER BLOCK

main48382-35020iRN42,44..3QT,HVY197901-198307

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-35050iLN40,RN3#,4#197808-198307

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-35050iLN40,RN3#,4#197808-198307

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-35050iLN40,RN3#,4#197808-198307

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-35050iLN40,RN3#,4#197808-198307

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39325iRN42,44..HVY197908-198307

sub48531-39326

main48531-39335iLN40,RN34,44..HLF197808-198307

sub48531-39337

main48531-39336iRN32,42197904-198008

sub48531-39335

main48531-39345iLN40..SR5197808-198307

SOFT RIDE

sub48531-39347

main48531-39346iRN32,42..SR5197904-198008

SOFT RIDE

sub48531-39345

main48531-39385iRN37197901-197909

sub48531-39436

main48531-39435iRN37197909-198008

sub48531-39436

main48531-39436iRN38,48198008-198307

sub48531-39437

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iLN40,RN3#,4#197808-198307

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iLN40,RN3#,4#197808-198307

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03012iLN40,RN3#,4#197808-198307

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012iLN40,RN3#,4#197808-198307

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iLN40,RN3#,4#197808-198307

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39325iRN42,44..HVY197908-198307

sub48531-39326

main48531-39335iLN40,RN34,44..3QT,HLF197808-198307

sub48531-39337

main48531-39336iRN32,42197904-198008

sub48531-39335

main48531-39345iLN40..SR5197808-198307

SOFT RIDE

sub48531-39347

main48531-39346iRN32,42..SR5197904-198008

SOFT RIDE

sub48531-39345

main48531-39385iRN37197901-197909

sub48531-39436

main48531-39435iRN37197909-198008

sub48531-39436

main48531-39436iRN38,48198008-198307

sub48531-39437

9161140814

main91611-40814

9161140816

main91611-40816

9161140820

main91611-40820

9161140830

main91611-40830

9161141020

main91611-41020

9411051300

main94110-51300

9411541400

main94115-41400

9451201300

main94512-01300

9451201400

main94512-01400
