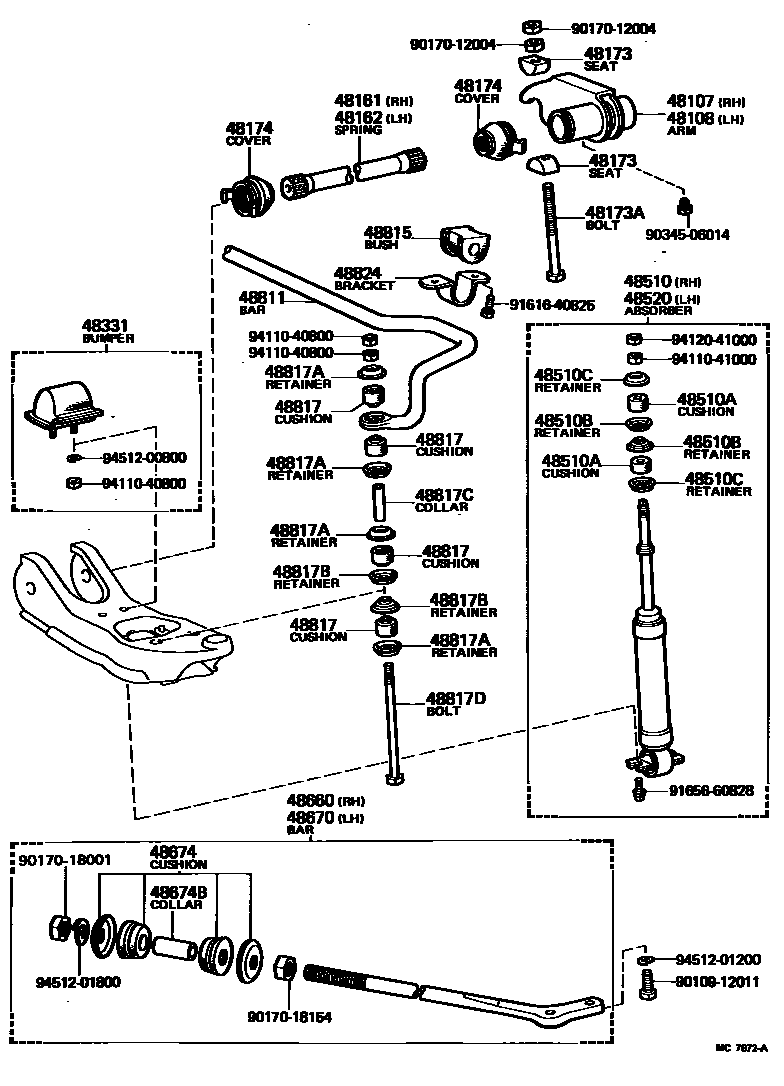

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35010iLN40,RN32,34,42,44197808-198105

sub48107-35011

sub48174-35020

sub90345-06014

main48107-35011iLN40,RN34,44198105-198307

sub48107-35012

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35010iLN40,RN32,34,42,44197808-198105

sub48108-35011

sub48174-35020

sub90345-06014

main48108-35011iLN40,RN34,44198105-198307

sub48108-35012

48161SPRING, TORSION BAR, RH

main48161-35010iLN40;RN42,44..3QT,HVY197901-198307

main48161-35020iRN32,34,42,44..HLF197808-198307

48162SPRING, TORSION BAR, LH

main48162-35010iLN40;RN42,44..3QT,HVY197901-198307

main48162-35020iRN32,34,42,44..HLF197808-198307

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iLN40,RN32,34,42,44197808-198307

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12038iLN40,RN32,34,42,44197808-198307

48174COVER, TORSION BAR DUST

main48174-35010iLN40,RN34,44198105-198307

FR

main48174-35010iLN40,RN32,34,42,44197808-198105

main48174-35020iLN40,RN34,44198105-198307

RR

48331BUMPER, FRONT SPRING, NO.1

main48304-35040iRN37,38,47,48198001-198307

LH

sub48304-35100

main48304-35060iRN37,38,47,48198001-198307

RH

sub48304-35090

main48304-35060iRN37197901-198001

sub48304-35090

main48304-39045iLN40,RN32,34,42,44..HLF197808-198307

main48304-39055iRN42,44..3QT,HVY197901-198307

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39025iRN37197901-197909

sub48510-39036

main48510-39035iRN37197909-198008

sub48510-39036

main48510-39036iRN38,48198008-198307

sub48510-39037

main48511-39245iRN32,42197808-197904

sub48511-39246

main48511-39246iRN32,42197904-197905

sub48511-39247

main48511-39247iRN32,42197905-198008

sub48511-39315

main48511-39315iLN40,RN34,44198008-198307

sub48511-39316

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002iLN40,RN32,34,42,44197808-198307

main90948-01003iRN37,38,47,48197901-198307

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002iRN37,38,47,48197901-198307

main90948-02005iLN40,RN32,34,42,44197808-198307

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02004iLN40,RN32,34,42,44197808-198307

main90948-02007iRN37,38,47,48197901-198307

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39025iRN37197901-197909

sub48510-39036

main48510-39035iRN37197909-198008

sub48510-39036

main48510-39036iRN38,48198008-198307

sub48510-39037

main48511-39245iRN32,42197808-197904

sub48511-39246

main48511-39246iRN32,42197904-197905

sub48511-39247

main48511-39247iRN32,42197905-198008

sub48511-39315

main48511-39315iLN40,RN34,44198008-198307

sub48511-39316

48660BAR ASSY, STRUT, RH

main48661-39025iRN32,34,42,44197808-198307

main48661-39035iLN40198101-198307

48670BAR ASSY, STRUT, LH

main48671-39015iRN32,34,42,44197808-198307

main48671-39025iLN40198101-198307

48674CUSHION, STRUT BAR

main48674-29026iLN40198101-198307

main48674-39035iRN32,34,42,44197808-198307

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iLN40,RN32,34,42,44197808-198307

48811BAR, STABILIZER, FRONT

main48811-35080iRN32,34,42,44..3QT,HLF197808-198108

main48811-35090iRN37197901-198001

main48811-35091iRN37,38,47,48198001-198307

main48811-35101iRN42,44..HVY197908-198108

main48811-35110iRN34,44..3QT,HLF198108-198307

main48811-35120iRN44..HVY198108-198307

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-16010iRN32,34,42,44..3QT,HLF197808-198307

main48815-20030iRN37,38,47,48197901-198307

main48815-20060iRN42,44..HVY197908-198307

48817CUSHION, FRONT STABILIZER

main48817-30010iRN32,34,42,44197808-198307

main90948-01002iRN37,38,47,48197901-198307

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iRN37,38,47,48197901-198307

main90948-02032iRN32,34,42,44197808-198307

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iRN37197901-198003

main90948-02015iRN32,34,42,44197808-198307

main90948-02034iRN37,38,47,48198003-198307

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09004iRN32,34,42,44197808-198307

main90440-14003iRN37,38,47,48197901-198307

48817DBOLT(FOR FRONT STABILIZER)

main90101-08038iRN32,34,42,44197808-198307

main90101-10058iRN37,38,47,48197901-198307

48824BRACKET, STABILIZER, FRONT

main48824-35030iRN32,34,42,44197808-198307

9010912011

main90109-12011

9017012004

main90170-12004

9017018001

main90170-18001

9017018154

main90170-18154

9034506014

main90345-06014

9161640825

main91616-40825

9165660828

main91656-60828

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9451200800

main94512-00800

9451201200

main94512-01200

9451201800

main94512-01800

38 parts on this diagram · 4 diagrams in section
