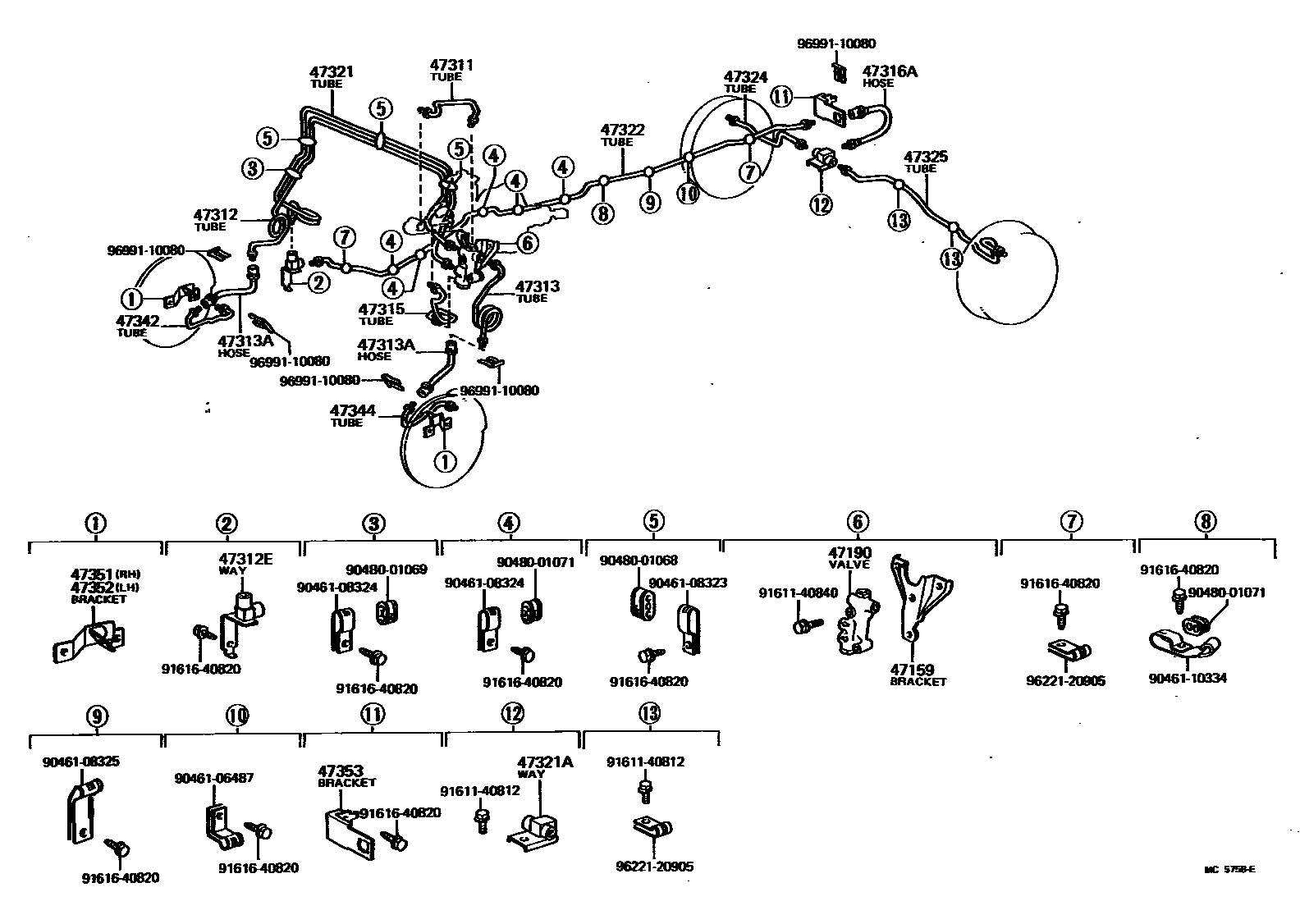

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47159BRACKET, PROPORTIONING VALVE

main47159-35030iLN40,RN32,34,42,44..HLF197808-198307

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-35010iLN40,RN32,34,42,44..HLF197808-198307

sub47190-35020

47311TUBE, FRONT BRAKE, NO.1

main47311-35250iRN42,44..3QT,HVY197901-198307

main47311-35270iRN37,38,47,48197901-198307

main47311-35300iLN40,RN32,34,42,44..HLF197808-198307

47312TUBE, FRONT BRAKE, NO.2

main47312-35260iRN32,34,42,44..HLF197808-198307

main47312-35270iRN42,44..3QT197901-198307

main47312-35280iRN37,38,47,48197901-198307

main47312-35300iRN42..HVY197908-198008

main47312-35320iRN44..HVY198008-198307

main47312-35330iLN40198101-198307

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10049iLN40,RN3#,4#197808-198307

47313TUBE, FRONT BRAKE, NO.3

main47313-35210iRN32,34,42,44..HLF197808-198101

sub47313-35250

main47313-35220iRN42,44..3QT197901-198307

main47313-35230iRN37,38,47,48197901-198307

main47313-35240iRN42,44..HVY197908-198307

main47313-35250iLN40,RN34,44..HLF198101-198307

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02379iLN40,RN32,34,42,44..3QT,HLF197808-198307

main90947-02382iRN42,44..HVY197908-198307

main90947-02383iRN37,38,47,48197902-198307

main90947-02384iRN37197901-197902

sub90947-02383

47315TUBE, FRONT BRAKE, NO.5

main47321-35080iLN40,RN32,34,42,44..HLF197808-198307

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96910-30445iRN32,42197808-197901

sub96910-34405

main96910-30465iRN37197901-197902

sub96910-34605

main96910-34005iRN42,44..3QT,HVY197901-198307

main96910-34405iLN40,RN32,34,42,44..HLF197901-198307

main96910-34605iRN37,38,47,48197902-198307

47321TUBE, REAR BRAKE, NO.1

main47321-35040iRN42,44..3QT197901-198307

main47321-35060iRN37,38,47,48197901-198307

main47321-35100iRN32,34,42,44..HLF197808-198102

sub47321-35150

main47321-35130iRN42..HVY197908-198008

main47321-35140iRN44..HVY198008-198307

main47321-35150iLN40198101-198307

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10054iLN40,RN32,34,42,44197808-198307

main90413-10081iRN37,38,47,48197901-198307

47322TUBE, REAR BRAKE, NO.2

main47322-35030iRN32,34197808-198208

main47322-35031iRN34198208-198307

main47322-35040iLN40,RN42,44197808-198208

main47322-35041iLN40,RN44198208-198307

main47322-35090iRN37,38197901-198103

sub47322-35140

main47322-35100iRN47,48197901-198103

sub47322-35150

main47322-35140iRN38198103-198307

main47322-35150iRN48198103-198307

47324TUBE, REAR BRAKE, NO.4

main47324-35010iRN42,44..HVY197908-198307

sub47324-35140

main47324-35020iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47324-35030iRN37,38,47,48197901-198307

47325TUBE, REAR BRAKE, NO.5

main47325-35020iRN42,44..HVY197908-198307

sub47325-35150

main47325-35030iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47325-35040iRN37,38,47,48197901-198307

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35020iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47341-35030iRN37,38,47,48197901-198307

sub47341-35120

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35020iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47343-35030iRN37,38,47,48197901-198307

sub47343-35120

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47354-35030iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47354-35042iRN42,44..HVY197908-198307

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47355-35030iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47355-35042iRN42,44..HVY197908-198307

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-35040iLN40,RN32,34,42,44..HLF197808-198307

main47352-35060iRN42,44..3QT,HVY197901-198307

9046106487

main90461-06487

9046108323

main90461-08323

9046108324

main90461-08324

9046108325

main90461-08325

9046110334

main90461-10334

9048001068

main90480-01068

9048001069

main90480-01069

9048001071

main90480-01071

9161140812

main91611-40812

9161140840

main91611-40840

9161640820

main91616-40820

9622120905

main96221-20905

9699110080

main96991-10080

32 parts on this diagram · 6 diagrams in section
