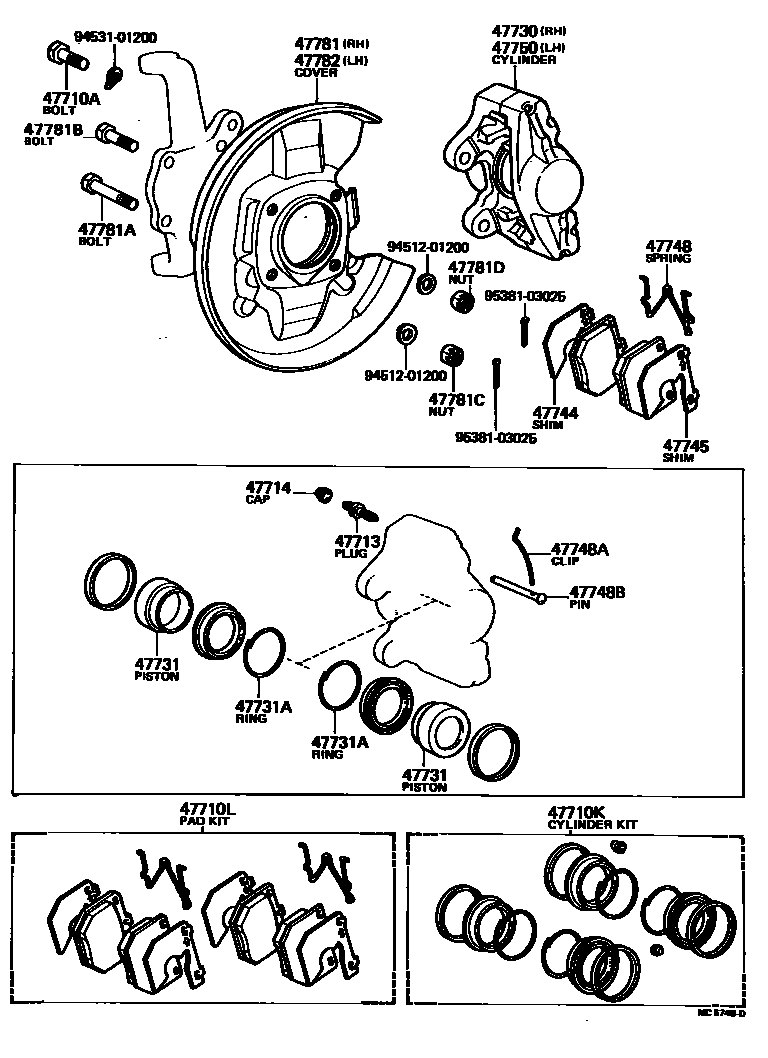

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iRN42,44..HVY197908-198307

*12-1.25PX50-26

main90101-12379iLN40,RN32,34,42,44..3QT,HLF197808-198307

main90101-12491iRN37,38,47,48197901-198307

*12-1.25PX42-24

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-26010iRN42,44..HVY197908-198212

main04479-26020iRN44..HVY198212-198307

main04479-30021iLN40,RN32,34,42,44..3QT,HLF197808-198307

sub04479-30022

main04479-30030iRN37,38,47,48197901-198307

sub04479-30031

47710LPAD KIT, DISC BRAKE, FRONT

main04491-22070iRN32,42..3QT,HLF197808-197910

sub04491-22071

main04491-22071iRN32,42..3QT,HLF197910-198008

sub04465-22170

main04491-26060iRN44..HVY198212-198307

sub04465-35160

main04491-35020iRN42,44..HVY197908-198102

sub04491-35021

main04491-35021iRN44..HVY198102-198212

sub04465-35160

main04491-35030iLN40,RN34,44..3QT,HLF198008-198307

sub04465-22170

main04491-60010iRN37,38,47,48197901-198307

sub04465-35170

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iRN42,44..HVY197908-198307

main47547-20030iLN40,RN3#,4#..3QT,HLF197808-198307

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLN40,RN3#,4#197808-198307

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20060iLN40,RN32,34,42,44..3QT,HLF197808-198103

sub47730-20130

main47730-20130iLN40,RN34,44..3QT,HLF198103-198307

main47730-26010iRN42,44..HVY197908-198108

main47730-26030iRN44..HVY198108-198212

main47730-26050iRN44..HVY198212-198307

main47730-35010iRN37,38,47,48197901-198307

47731PISTON, FRONT DISC BRAKE

main47731-20040iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47731-26010iRN42,44..HVY197908-198212

main47731-26020iRN44..HVY198212-198307

main47731-30020iRN37,38,47,48197901-198307

OD=42.82

main47732-30010iRN37,38,47,48197901-198307

OD=33.93

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-40043iRN37,38,47,48197901-198307

PISTON,OD=33.93

main90522-48044iRN37,38,47,48197901-198307

PISTON,OD=42.82

main90522-58026iLN40,RN32,34,42,44..3QT,HLF197808-198307

main90522-65001iRN44..HVY198212-198307

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26010iRN42,44..HVY197908-198102

sub47744-26020

main47744-26020iRN44..HVY198102-198212

main47744-26030iRN44..HVY198212-198307

main47744-30012iLN40,RN32,34,42,44..3QT,HLF197808-198307

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-26010iRN42,44..HVY197908-198307

main47745-30012iLN40,RN32,34,42,44..3QT,HLF197808-198307

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-26010iRN42,44..HVY197908-198307

main47748-30013iLN40,RN32,34,42,44..3QT,HLF197808-198307

main47748-60010iRN37,38,47,48197901-198306

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12002iLN40,RN32,34,42,44..3QT,HLF197808-198307

main90468-12003iRN37,38,47,48197901-198307

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06006iRN37,38,47,48197901-198307

main90240-06098iLN40,RN32,34,42,44..3QT,HLF197808-198307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20050iLN40,RN32,34,42,44..3QT,HLF197808-198103

sub47750-20120

main47750-20120iLN40,RN34,44..3QT,HLF198103-198307

main47750-26010iRN42,44..HVY197908-198108

main47750-26030iRN44..HVY198108-198212

main47750-26050iRN44..HVY198212-198307

main47750-35010iRN37,38,47,48197901-198307

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-35010iRN37,38,47,48197901-198307

sub47703-35020

sub47786-60020

main47781-26010iRN42,44..HVY197908-198108

main47781-26020iRN44..HVY198108-198307

main47781-35010iRN32,42197808-197901

sub47781-35011

main47781-35011iLN40,RN32,34,42,44..3QT,HLF197901-198307

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10439iRN37,38,47,48197901-198307

main90102-12004iLN40,RN34,44198008-198307

*12-1.25PX59-20

main90102-12065iRN32,42197808-198008

*12-1.25PX58.5-20

main90114-12138iRN32,42197808-198008

SERRATION

47781BBOLT(FOR DUST COVER SETTING)

main90102-12058iLN40,RN32,34,42,44..3QT,HLF197808-198307

main91611-40828iRN42,44..HVY197908-198307

sub91611-60828

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iLN40,RN32,34,42,44197808-198307

47781DNUT(FOR DUST COVER SETTING)

main94145-71200iLN40,RN32,34,42,44..3QT,HLF197808-198307

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-35010iRN37,38,47,48197901-198307

sub47704-35020

sub47787-60020

main47782-26010iRN42,44..HVY197908-198108

main47782-26020iRN44..HVY198108-198307

main47782-35010iRN32,42197808-197901

sub47782-35011

main47782-35011iLN40,RN32,34,42,44..3QT,HLF197901-198307

9451201200

main94512-01200

9453101200

main94531-01200

9538103025

main95381-03025
