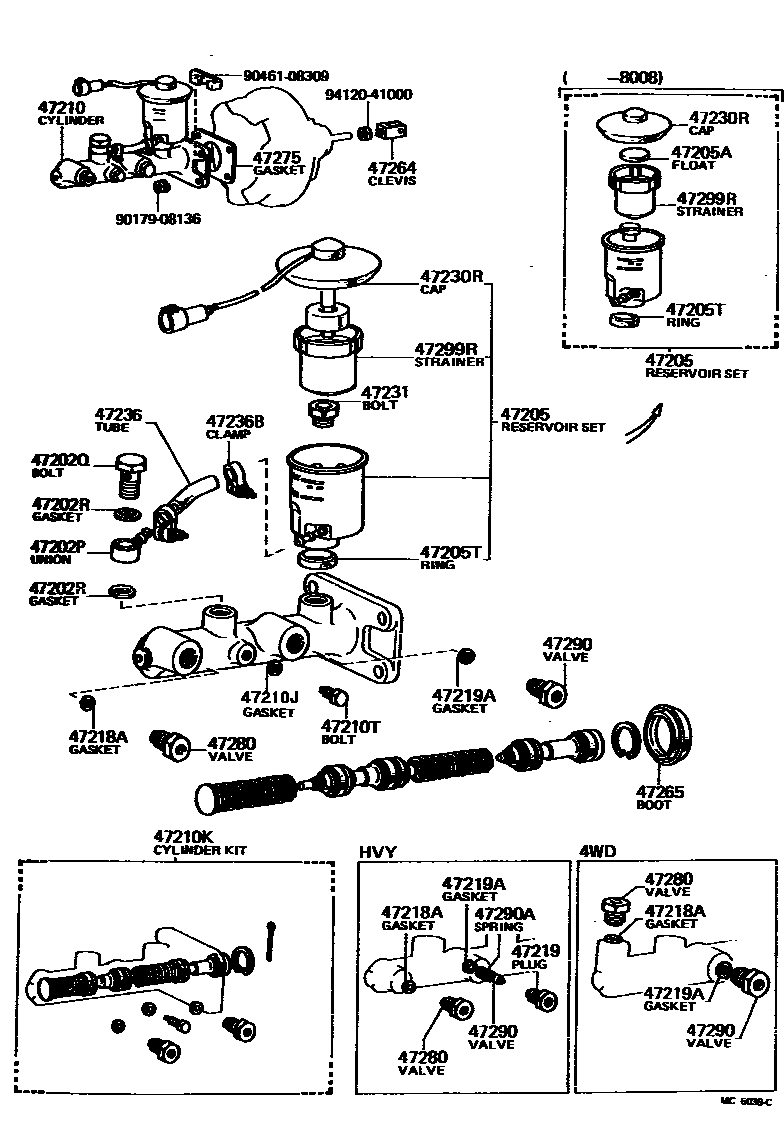

BRAKE MASTER CYLINDER

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10125iLN40,RN3#,4#197808-198307

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16078iLN40,RN3#,4#197808-198307

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iLN40,RN3#,4#197808-198307

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-35080iRN38,48;RN44..HVY198008-198307

main47202-35100iRN32,42..3QT,HLF197808-198008

main47202-35110iRN37;RN42..HVY197901-198008

main47202-35120iLN40,RN34,44..3QT,HLF198008-198307

sub84460-35010

47205AFLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE)

main31426-20010iRN3#,42197808-198008

47205TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)

main90562-18151iLN40,RN3#,4#197808-198307

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-35210iRN32,42..3QT,HLF197808-198008

sub47207-35010

sub31426-20010

sub47230-20030

main47201-35220iRN37197901-198008

sub47207-35040

sub31426-20010

sub47230-20030

main47201-35230iRN42..HVY197908-198008

sub47207-35020

sub31426-20010

sub47230-20030

main47201-35250iRN38,48198008-198307

sub47207-35040

sub84460-35010

main47201-35260iLN40,RN34,44..3QT,HLF198008-198307

sub47207-35010

sub84460-35010

main47201-35270iRN44..HVY198008-198307

sub47207-35020

sub84460-35010

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLN40,RN3#,4#197808-198307

47210KCYLINDER KIT, BRAKE MASTER

main04493-14060iRN37,38,47,48197901-198307

main04493-35060iRN42,44..HVY197908-198307

main04493-35070iLN40,RN32,34,42,44..3QT,HLF197808-198307

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLN40,RN3#,4#197808-198307

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iLN40,RN3#,4#197808-198307

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-30030iRN42,44..HVY197908-198307

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iRN3#,4#..3QT,HLF197808-198307

main90430-11001iRN42,44..HVY197908-198307

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main47230-20030iRN3#,42197808-198008

main84460-35010iLN40,RN3#,4#198008-198307

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iLN40,RN3#,4#197808-198307

47236TUBE, RESERVOIR BRAKE

main47234-14010iLN40,RN3#,4#197808-198307

47236BCLAMP(FOR RESERVOIR TUBE)

main90460-16069iLN40,RN3#,4#197808-198307

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12040iLN40,RN32,34,42,44197808-198307

main47264-20020iRN37,38,47,48197901-198307

47265BOOT, MASTER CYLINDER

main47265-20050iLN40,RN3#,4#197808-198307

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iLN40,RN3#,4#197808-198307

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010iRN37,38,47,48197901-198307

main47280-30030iLN40,RN32,34,42,44197808-198307

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-14010iRN37,38,47,48197901-198307

main47280-30030iRN32,34,42,44..3QT,HLF197808-198307

sub47280-14010

main47281-30020iRN42,44..HVY197908-198307

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05001iRN42,44..HVY197908-198307

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iLN40,RN3#,4#..3QT,HLF198106-198307

main47299-20010iLN40,RN3#,4#197808-198307

9017908136

main90179-08136

9046108309

main90461-08309

9412041000

main94120-41000

27 parts on this diagram · 1 diagram in section
